HMS X-Class Stickleback Midget Submarine

Collapse
X

  • Time
  • Show
Clear All
new posts
  • rwtdiver
    Vice Admiral

    • Feb 2019
    • 1916

    #46
    Originally posted by redboat219
    How about those UV resin you cure with a UV flashlight.
    Thank you Romel,

    I do not have access to a UV light nor do I have the resin required. I will go with Bob's suggestion, and use either epoxy or superglue.

    Rob
    "Firemen can stand the heat."

    Comment

    • redboat219
      Admiral

      • Dec 2008
      • 3078

      #47
      Originally posted by rwtdiver

      Thank you Romel,

      I do not have access to a UV light nor do I have the resin required. I will go with Bob's suggestion, and use either epoxy or superglue.

      Rob
      "Firemen can stand the heat."
      No problem.

      Just in case... Click image for larger version

Name:	sg-11134201-23020-ifdlw2e6d2mv58.webp
Views:	271
Size:	49.1 KB
ID:	177737
      Make it simple, make strong, make it work!

      Comment

      • rwtdiver
        Vice Admiral

        • Feb 2019
        • 1916

        #48
        Things might be changing!

        Click image for larger version

Name:	STICKLEBACK 37.jpg
Views:	284
Size:	50.6 KB
ID:	177766 Click image for larger version

Name:	STICKLEBACK 38.jpg
Views:	267
Size:	60.7 KB
ID:	177767

        It's been about 5 years ago I received a partial 2" sub driver from David M. It was sort of set up to be used on my 1:77 scale Nautilus that I built back then. I did use it for the Nautilus, but I had some other parts and pieces that he sent me that I think will work on my Stickleback!? I will need to add another servo for the dive planes. But the good thing is I have a VEX receiver inside. I have 2 VEX Transmitters with extra modules, so I am in business with this new set up. Thanks to David M.

        I have been having some issues with my eyes, and I have an appointment today for some testing, so I will be of the blog for a while!

        Rob
        "Firemen can stand the heat."

        ​​​​​​

        Comment

        • rwtdiver
          Vice Admiral

          • Feb 2019
          • 1916

          #49
          Got a little building done today!

          Click image for larger version

Name:	STICKLEBACK 39.jpg
Views:	232
Size:	56.2 KB
ID:	177807

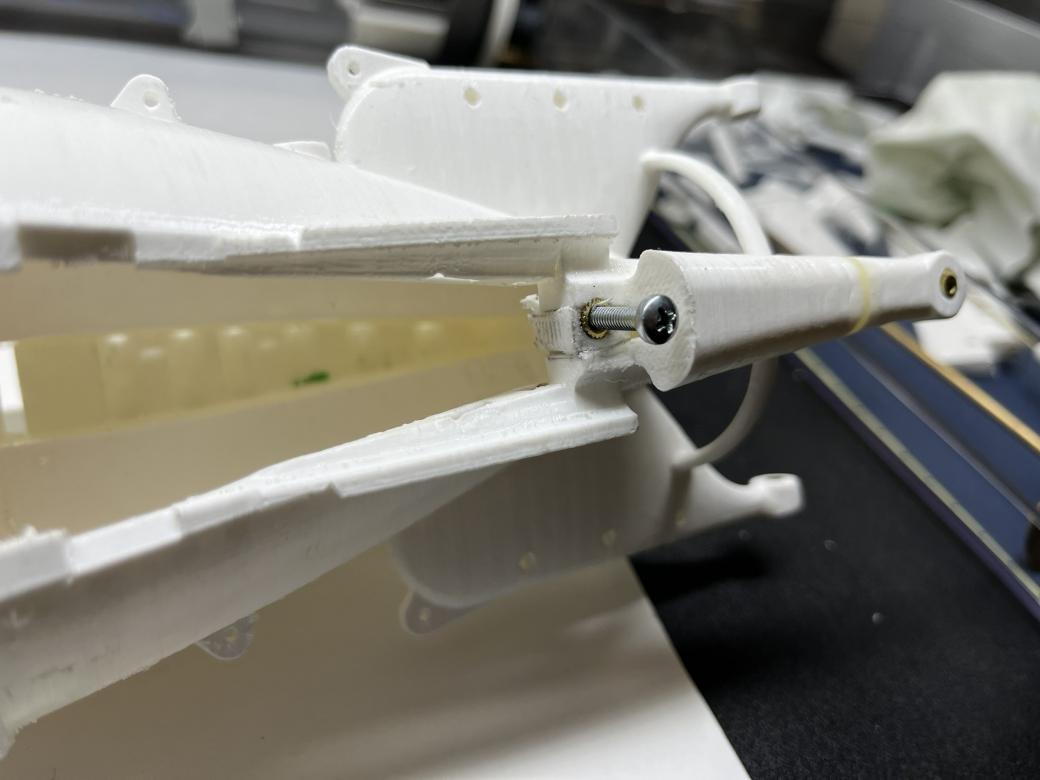

          Mounted the stern shaft bushing for the propeller shaft.

          Click image for larger version

Name:	STICKLEBACK 40.jpg
Views:	198
Size:	52.5 KB
ID:	177808

          Click image for larger version

Name:	STICKLEBACK 41.jpg
Views:	200
Size:	53.1 KB
ID:	177809

          Now that I have all the brass sleeves and control surface rods sized and cut, I can now secure the stern section to the rest of the bottom hull.

          Rob
          "Firemen can stand the heat."

          Comment

          • Scott T
            Commander
            • May 2009
            • 386

            #50
            How about a tire valve stem or form some silicone to plug the hole and wrap the antenna. Similar to how they make the flame shape on a LED votive candle.

            Click image for larger version

Name:	OIP.ze4DS5d9-xo4YLEajEUS_gHaHa?w=194&h=195&c=7&r=0&o=5&dpr=1.3&pid=1.7.jpg
Views:	197
Size:	15.4 KB
ID:	177832Click image for larger version

Name:	080-cll.jpg
Views:	191
Size:	68.2 KB
ID:	177833

            Comment

            • rwtdiver
              Vice Admiral

              • Feb 2019
              • 1916

              #51
              Scott T.

              Not sure what the purpose of what you are trying to achieve here!?

              Rob
              Firemen can stand the heat."

              Comment

              • Scott T
                Commander
                • May 2009
                • 386

                #52
                You are planning to glue a tube for your antenna to your watertight compartment. So suggested other options. The tire valve has gaskets and threaded barrel to make a watertight seal. Using silicone you could seal the tubes you have together with a more flexible connection. Or just using silicone you could mold it around the antenna for a seal. The candle showed that the LED could be molded to look like a flame as it was covered.

                Comment

                • rwtdiver
                  Vice Admiral

                  • Feb 2019
                  • 1916

                  #53
                  Originally posted by Scott T
                  You are planning to glue a tube for your antenna to your watertight compartment. So suggested other options. The tire valve has gaskets and threaded barrel to make a watertight seal. Using silicone you could seal the tubes you have together with a more flexible connection. Or just using silicone you could mold it around the antenna for a seal. The candle showed that the LED could be molded to look like a flame as it was covered.
                  Scott T.

                  I understand what you are trying to do. Thank you your input. Another option I could use, but at this point I am not going with the 2.4 system on this boat.

                  Rob
                  "Firemen can stand the heat."

                  Comment

                  • Subculture
                    Admiral

                    • Feb 2009
                    • 2223

                    #54
                    Originally posted by rwtdiver
                    I do not have access to a UV light
                    We all have that, it's called the sun.

                    Comment

                    • rwtdiver
                      Vice Admiral

                      • Feb 2019
                      • 1916

                      #55

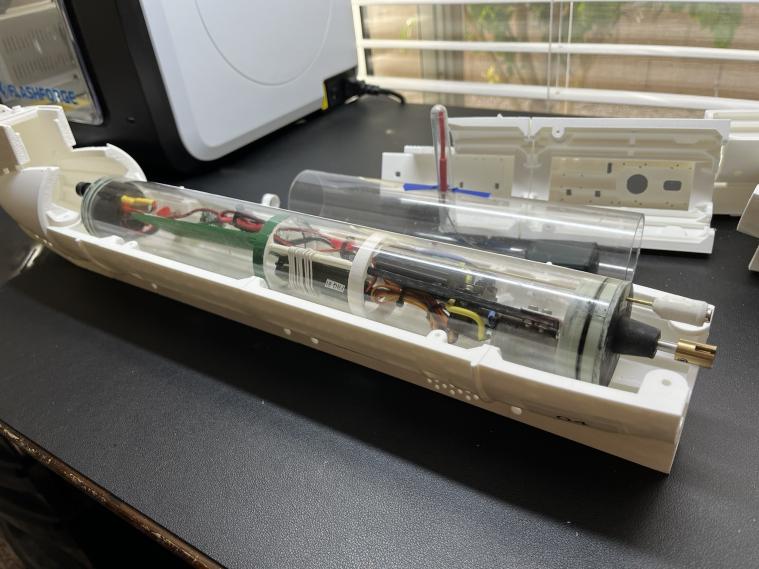

                      It has certainly been a while since I have been able to work on my HMS Stickleback submarine! But here I am back at it again.

                      Click image for larger version

Name:	STICKLEBACK 37.jpg
Views:	124
Size:	50.6 KB
ID:	182972 Click image for larger version

Name:	STICKLEBACK 21.jpg
Views:	108
Size:	61.0 KB
ID:	182973

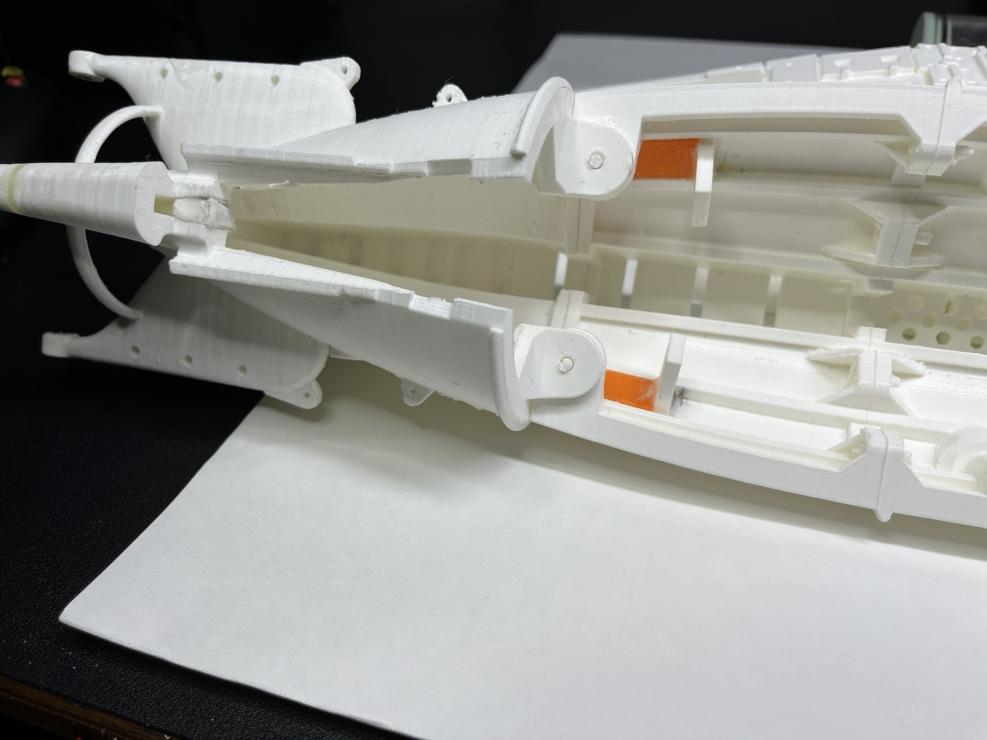

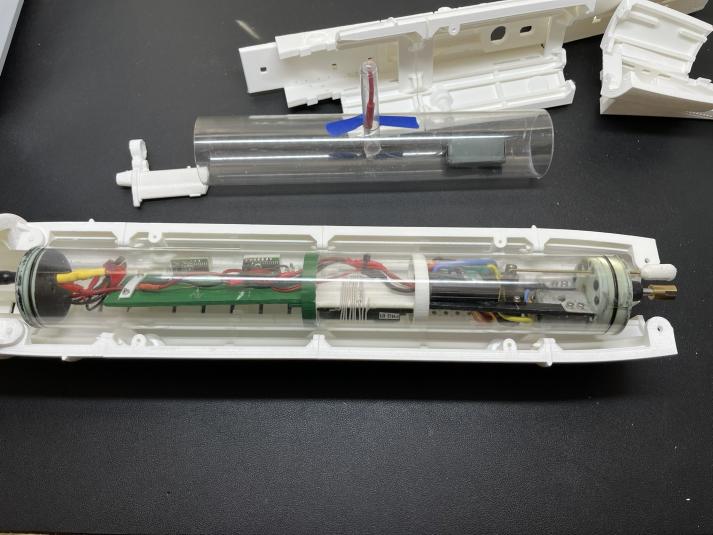

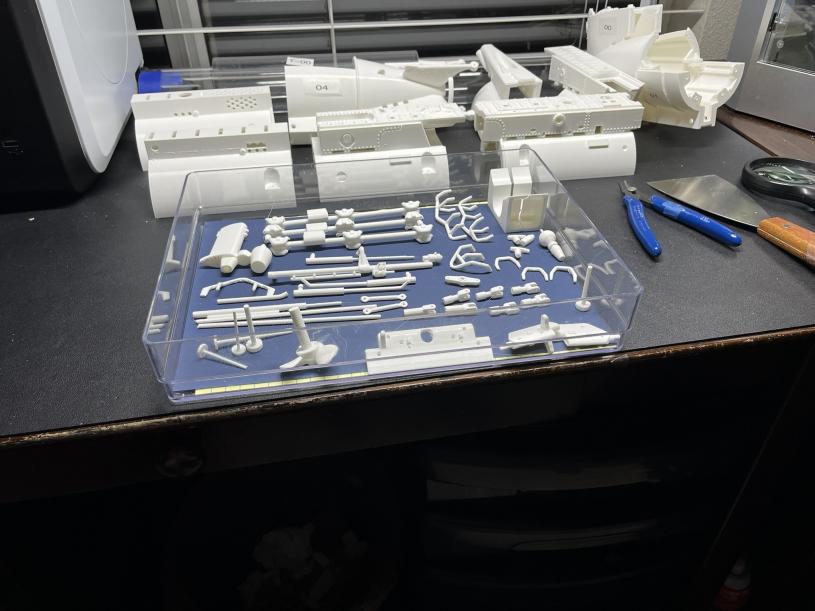

                      These photos show approximately where I left off on the build. I am ready to put the hull sections together for the upper hull, at which point I can start on the control surface installation and prop installation.

                      Rob
                      "Firemen can stand the heat."

                      Comment

                      • rwtdiver
                        Vice Admiral

                        • Feb 2019
                        • 1916

                        #56
                        Today I finished up putting the upper hull sections together, and installing the WTC hold in place bracing as well as the bracket supports for holding the top deck down.

                        Click image for larger version

Name:	STICLEBACK 16.jpg
Views:	118
Size:	52.6 KB
ID:	183005 Click image for larger version

Name:	STICLEBACK 17.jpg
Views:	98
Size:	59.2 KB
ID:	183006 Click image for larger version

Name:	STICLEBACK 15.jpg
Views:	98
Size:	54.3 KB
ID:	183007
                        I will be installing threaded brass insert and using stanless steel bolts for holding the top deck in place.

                        Rob
                        "Firemen can stand the heat."

                        Comment

                        • Das Boot
                          Rear Admiral

                          • Dec 2019
                          • 1274

                          #57
                          Reminds me of Dave Merriman favorite movie, “Submarine X-1”’.
                          Of the 40,000 men who served on German submarines, 30,000 never returned.”

                          Comment

                          • rwtdiver
                            Vice Admiral

                            • Feb 2019
                            • 1916

                            #58

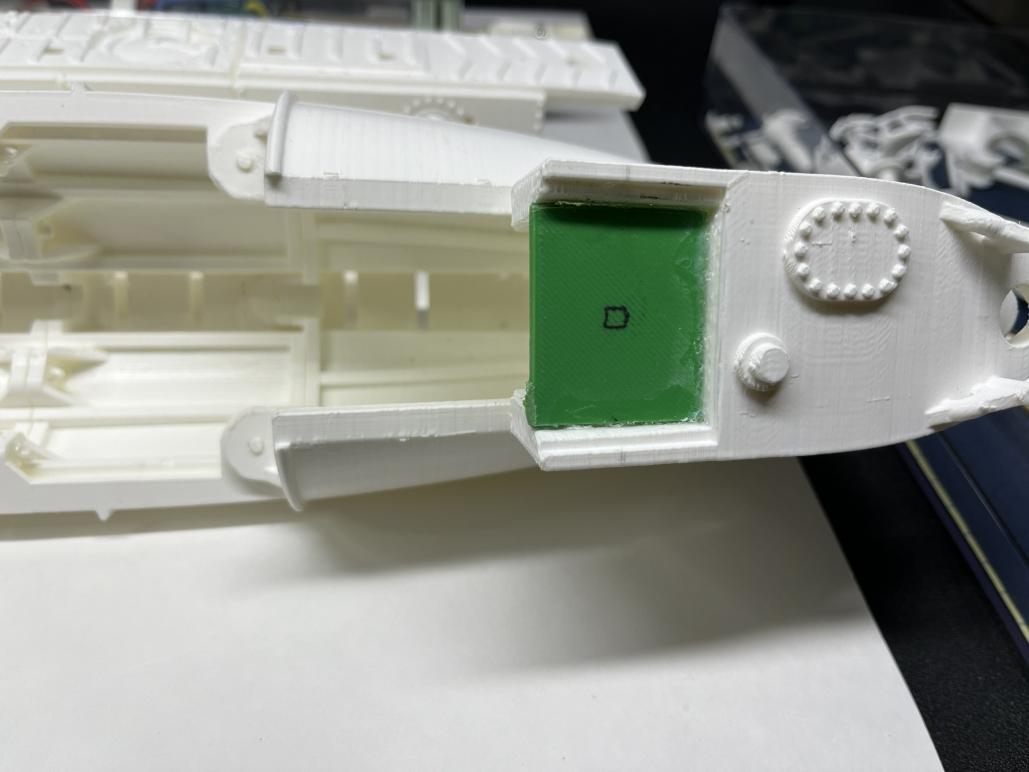

                            Today I went to work on the fasteners for the top deck hold downs.

                            Click image for larger version

Name:	STICKLEBACK 18.jpg
Views:	112
Size:	65.8 KB
ID:	183032 Click image for larger version

Name:	STICKLEBACK 19.jpg
Views:	82
Size:	53.2 KB
ID:	183033

                            Click image for larger version

Name:	STICKLEBACK 20.jpg
Views:	89
Size:	49.1 KB
ID:	183034 Click image for larger version

Name:	STICKLEBACK 22.jpg
Views:	84
Size:	48.8 KB
ID:	183035

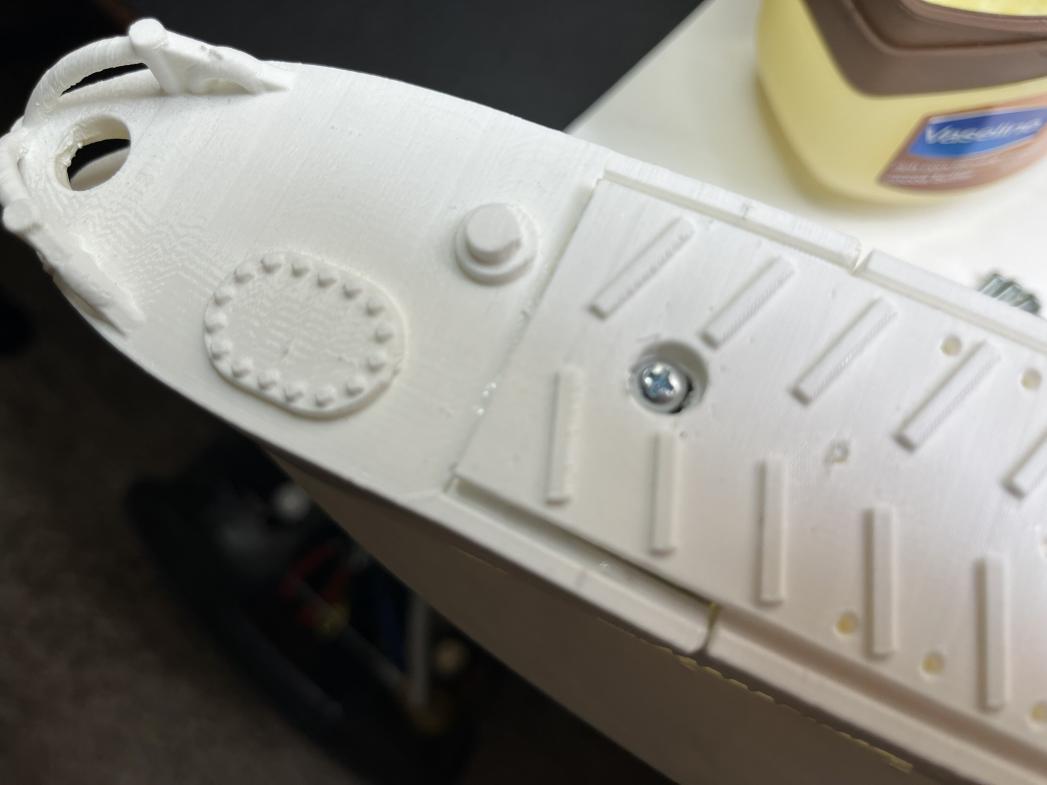

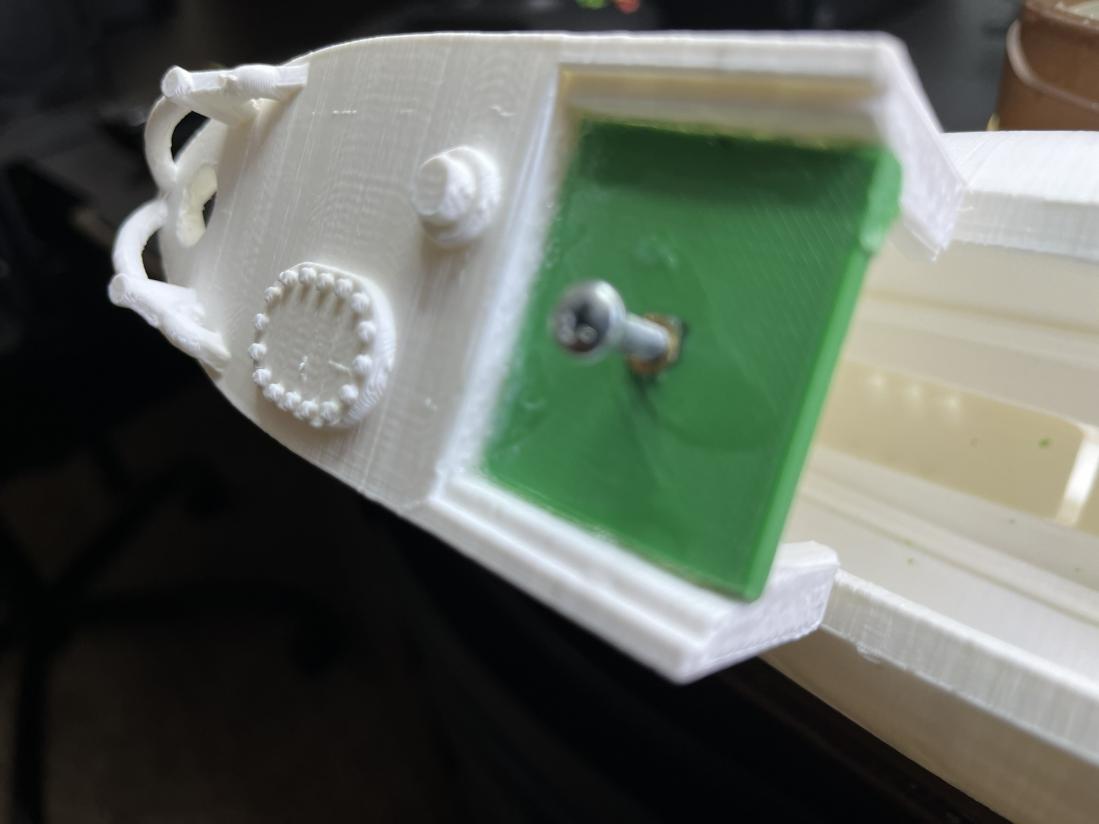

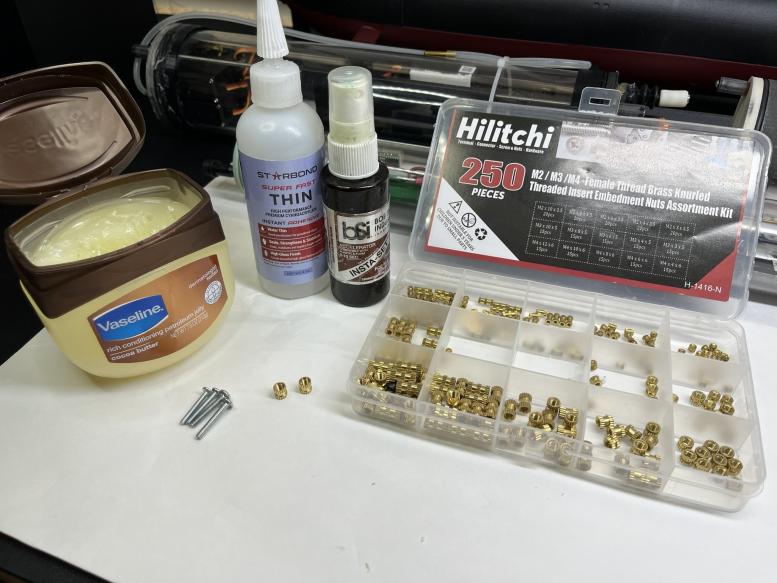

                            I realize this sort of stuff is somewhat elementary to most of you guys, but it does show how I use the threaded brass inserts and stainless steel screws for my hold downs. The Vaseline that you see is used on the screw threads while using thin CA to secure the brass inserts, the Vaseline keeps the CA from penetrating the threads. I have also used the tip of a hot soldering iron to melt the brass inserts into the hole. Both ways work well.

                            Rob
                            "Firemen can stand the heat."

                            Comment

                            • rwtdiver
                              Vice Admiral

                              • Feb 2019
                              • 1916

                              #59
                              After some breakaway time from the Stickleback building (The Shark Build) I am back on finishing up my Stickleback!

                              ​​

                              I have the WTC installed and locked into place, and both top deck hold downs completed I can now move onto the propulsion system and the control linkages. Along with the Stickleback submarine build, I latched onto another project that will be sort of back and forth. If you look down and the right hand corner of the photo you will see this new project.



                              This is going to be of some interest for Ken, and Bob G. They ​both enjoy building surface boats (Target Boats) to submariners! I will be doing a short build blog on this forum for the outboard motor as well as a surface boat which I will install the outboard on. (Just a fun breakaway project)

                              Rob
                              "Firemen can stand the heat."
                              ​​​​​​​​

                              ​​​​​​​

                              Comment

                              • rwtdiver
                                Vice Admiral

                                • Feb 2019
                                • 1916

                                #60

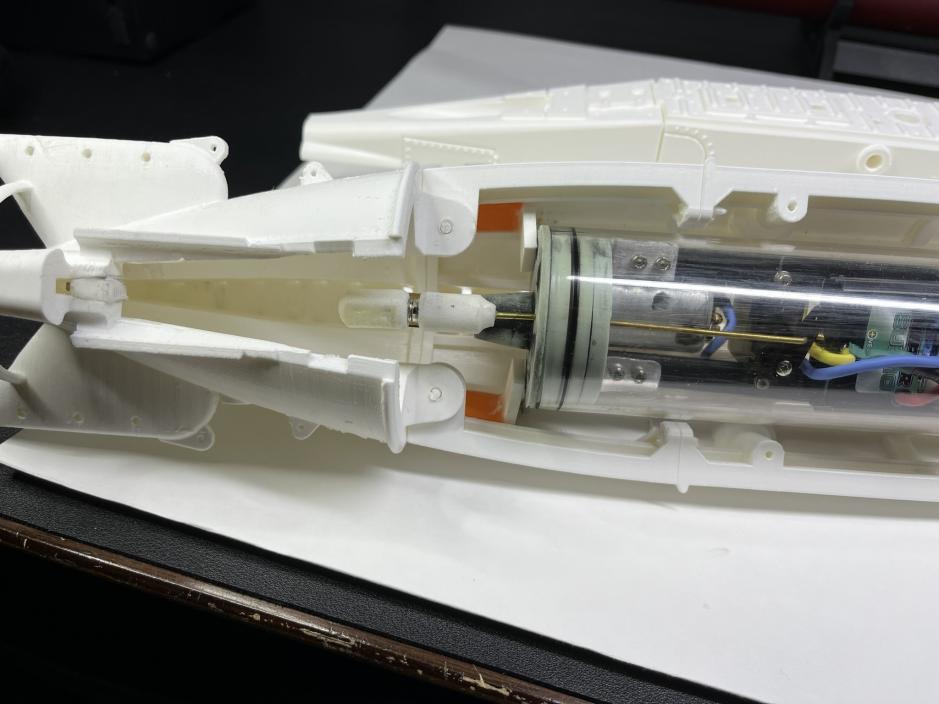

                                Today I took the old oil light prop bushing out and replaced it with the correct Dia. size. Now the prop is turning straight and true and no wobbling. And instead of a dog bone type hook up I was able to use a stainless-steel universal joint to tie the prop shaft to the motor shaft. Totally better!

                                Click image for larger version

Name:	STICKLE BACK 45.jpg
Views:	46
Size:	62.9 KB
ID:	184273

                                Click image for larger version

Name:	STICKLE BACK 46.jpg
Views:	32
Size:	50.4 KB
ID:	184274

                                I will now start on the rudder and the stern dive planes linkage.

                                Rob
                                "Firemen can stand the heat."

                                ​​​​​​
