ICTINCO ll Submarine Build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16

    The real boat was 14 meters long (551 inches). Divide that with 34" ( your model) = 16. It's 1/16th scale.

    BTW, you're printing this in right and left halves, How will you access the WTC inside?
    Last edited by redboat219; 11-18-2022, 02:27 AM.
    Make it simple, make strong, make it work!

    Comment


    • #17
      Originally posted by redboat219 View Post
      The real boat was 14 meters long (551 inches). Divide that with 34" ( your model) = 16. It's 1/16th scale.

      BTW, you're printing this in right and left halves, How will you access the WTC inside?
      Romel,

      Thank you for that information on how to calculate model scales!

      My plan will be to use the three inner hull sections to make entrance into the hull itself by cutting the TOP portion of those three inner sections that will lift off for access to the WTC.

      Rob
      "Firemen can stand the heat"
      Last edited by rwtdiver; 11-18-2022, 02:10 PM.

      Comment


      • #18
        Isn't it possible to modify the files to include the top hatch in the printing?
        Make it simple, make strong, make it work!

        Comment


        • #19
          Maybe you could go with Manfred's Type XXIII radial hull separation. https://youtu.be/dwpT6FzhrZI .
          Make it simple, make strong, make it work!

          Comment


          • #20
            Originally posted by redboat219 View Post
            Maybe you could go with Manfred's Type XXIII radial hull separation. https://youtu.be/dwpT6FzhrZI .
            Romel,

            I do not have the ability myself to use a CAD system for the modification of the hull sections. Plus, I already have three sections already printed. If I go the route that I mentioned, I will use a high-end zona saw and cut the hulls by hand to achieve the top removal to gain access into the hull. Patience, time, and accuracy is all that is required! It may take some time, but doing it by hand will give me a much better cut than using any power cutting saw...

            Thank you for posting the video! That is another possible way to do the WTC!

            Rob
            "Firemen can stand the heat"

            Comment


            • #21
              Rob,


              In the future, if you have a challenge like that, hit me up (or post up here and I'm sure someone else will step up). Slicing STL files is a pretty rudimentary thing for a program like Netfabb or many others. Many STL files out there are not optimized for our needs, so a few minutes of playing around can save hours of labor later.


              Bob

              Comment


              • #22

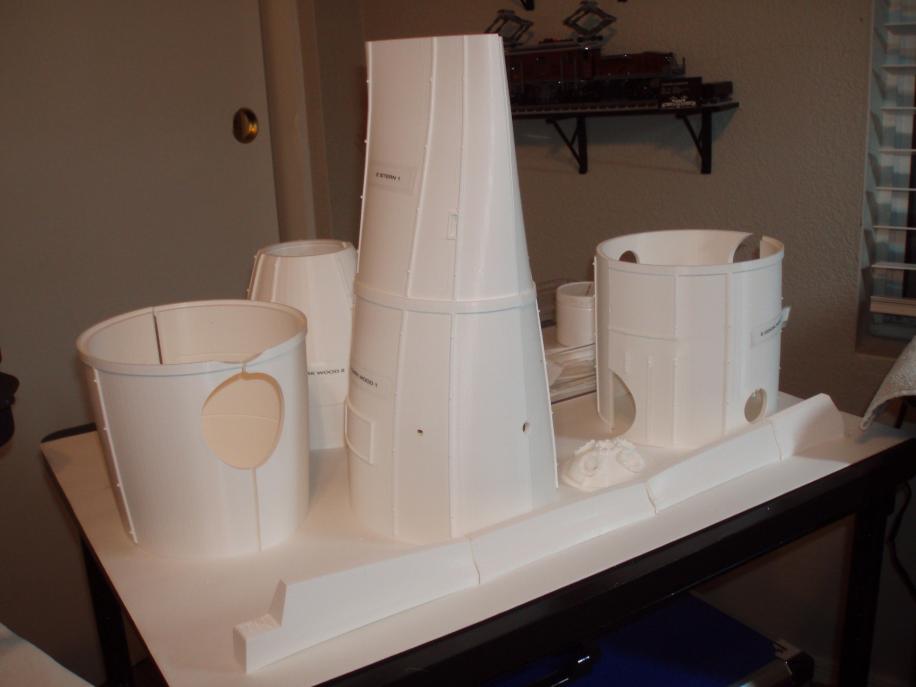

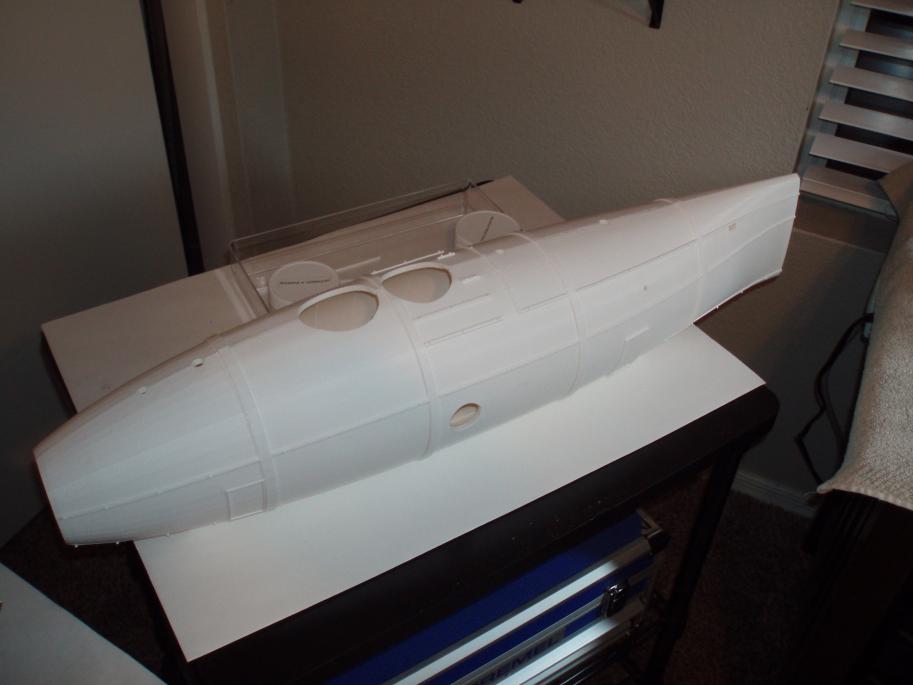

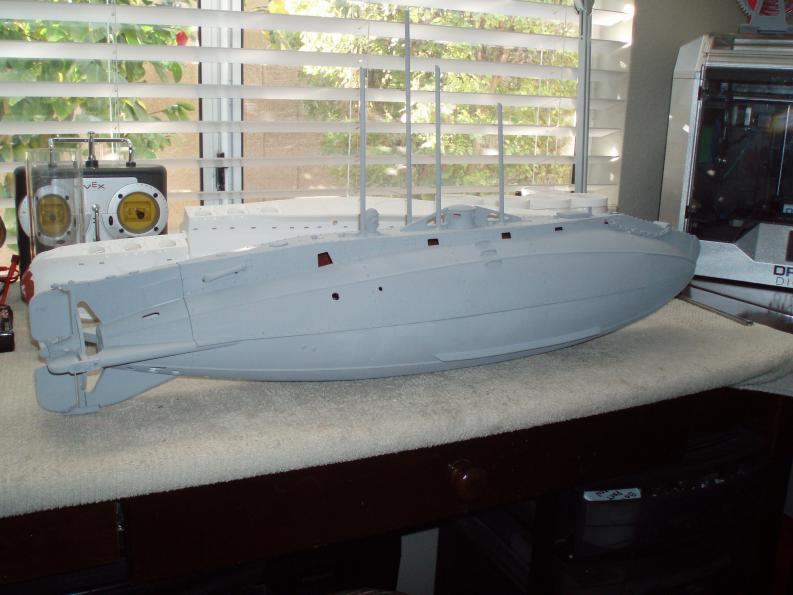

                Today I finished up the outer hull sections on the ICTINEO.

                Click image for larger version

Name:	ICTINEO ll 8.jpg
Views:	17
Size:	38.6 KB
ID:	167102

                Click image for larger version

Name:	ICTINEO ll 7.jpg
Views:	15
Size:	54.4 KB
ID:	167103

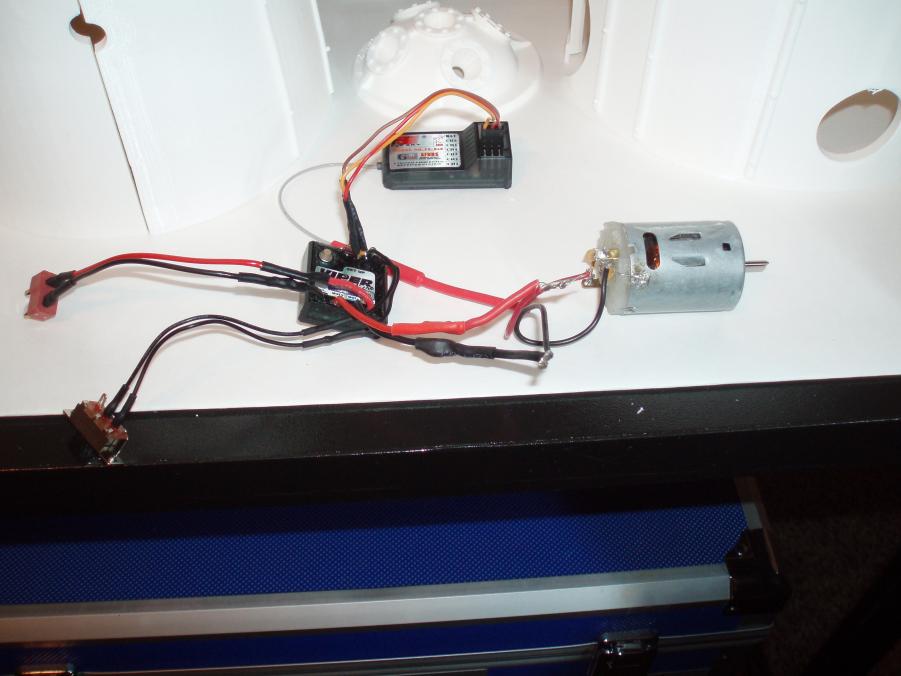

                I have also made the decision as to the propulsion system (550 brushed motor) with the small Viper ESC and I will be using a 2.4 radio system. The only control on this boat is a rudder and it will be controlled with a standard size Hitec servo. The power will be supplied with a 7.2-volt NiMH battery... This is all predesign at this point and is not set in stone. I also need to start designing the WTC as well!

                Rob
                "Firemen can stand the heat"

                Comment


                • #23

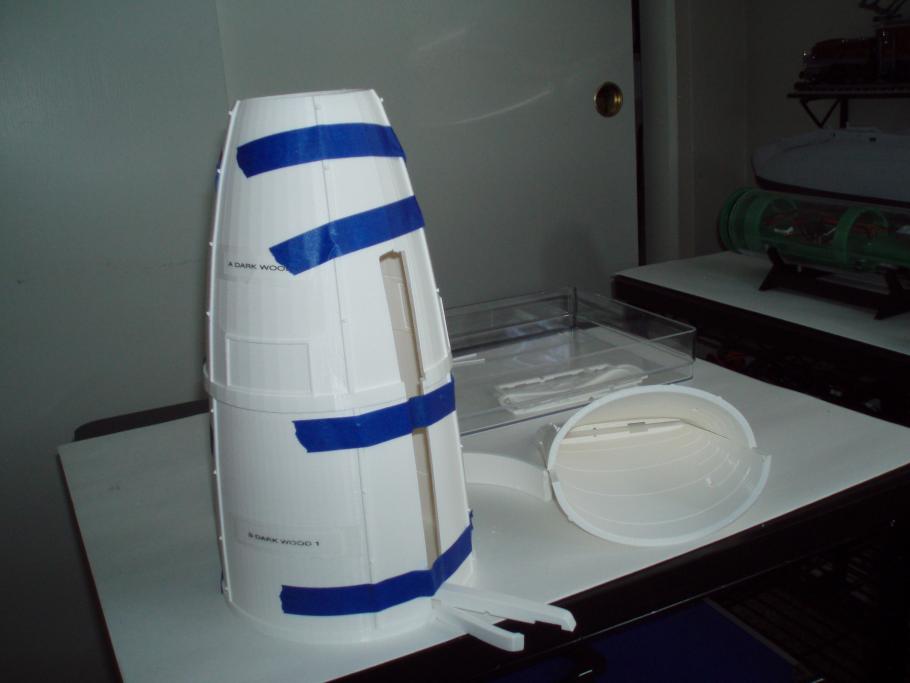

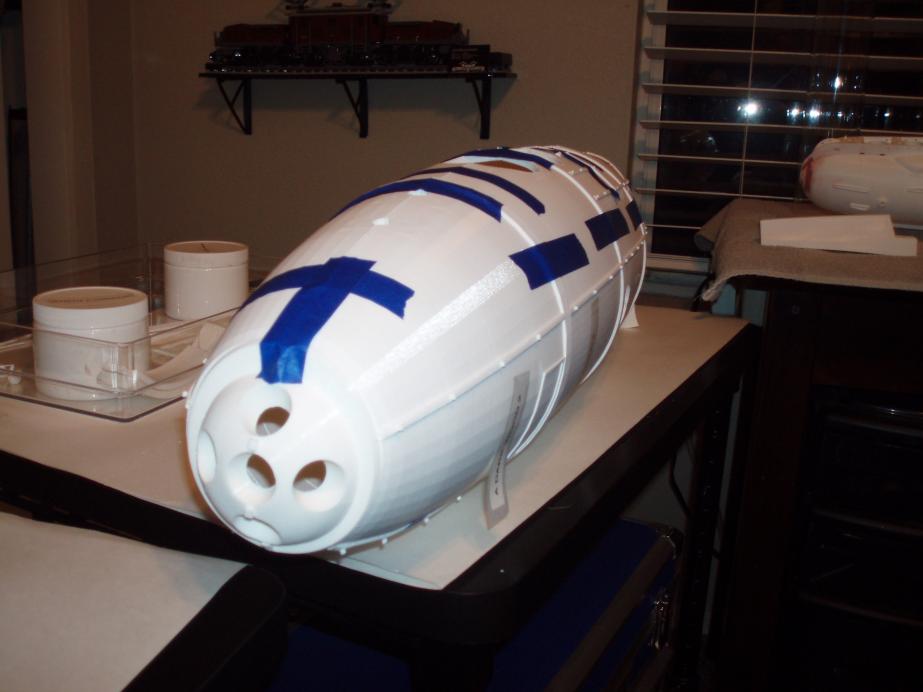

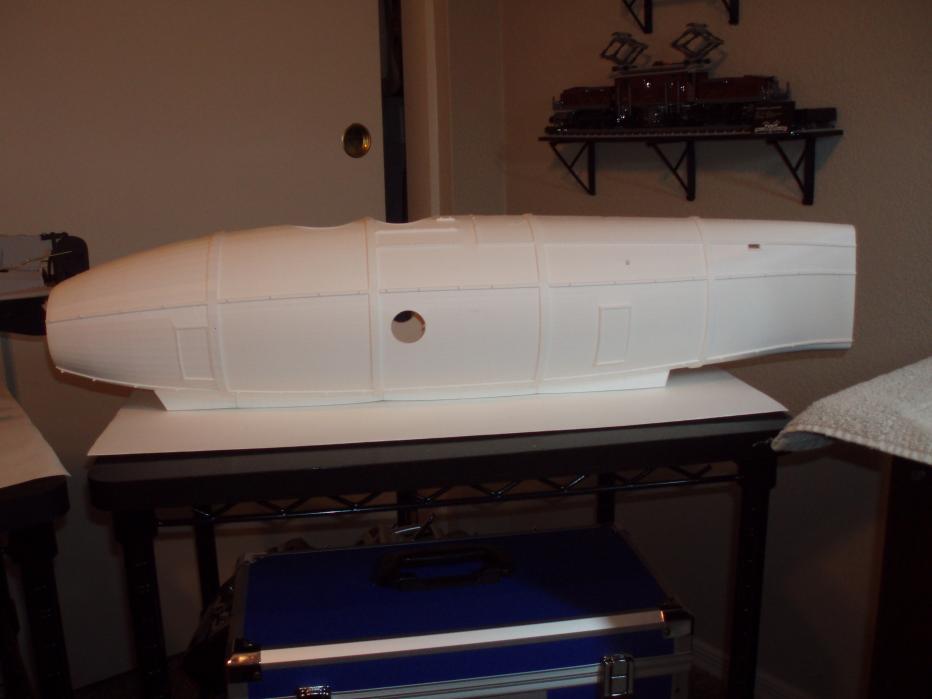

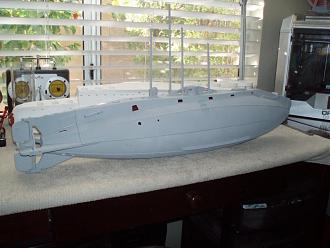

                  I have started to assemble the hull sections together.

                  Click image for larger version  Name:	ICTINEO ll 9.jpg Views:	0 Size:	43.4 KB ID:	167138

                  Click image for larger version  Name:	ICTINEO ll 10.jpg Views:	0 Size:	49.1 KB ID:	167139

                  Right now the hull is just taped together to get a feel as to how it will all fit together. It is going to be a challenge, but so far it all seems to be a good fit!

                  Rob
                  Last edited by rwtdiver; Yesterday, 02:02 AM.

                  Comment


                  • #24

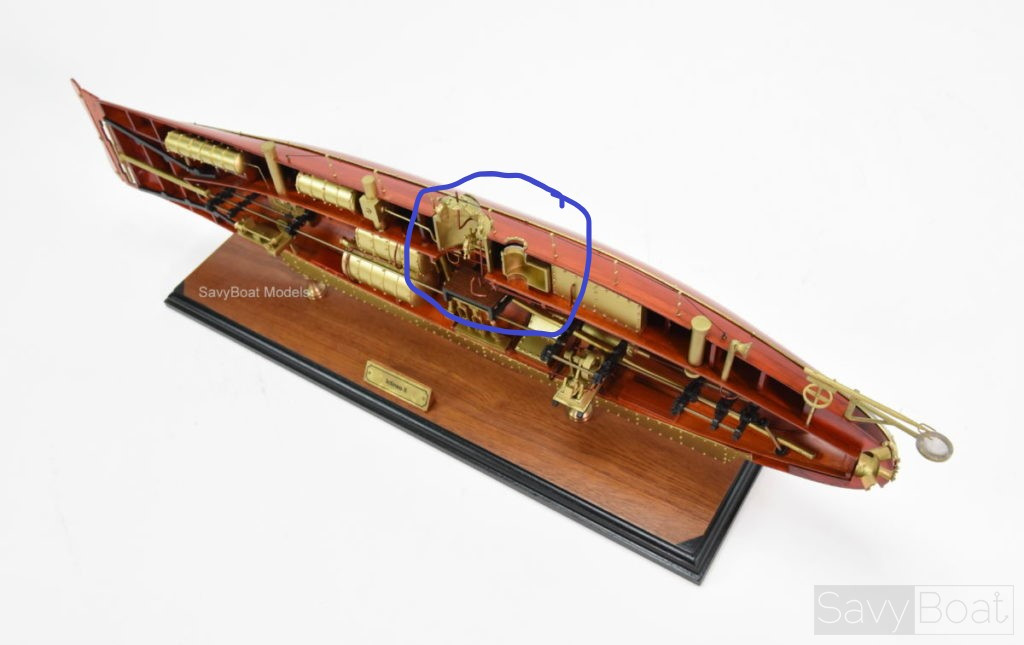

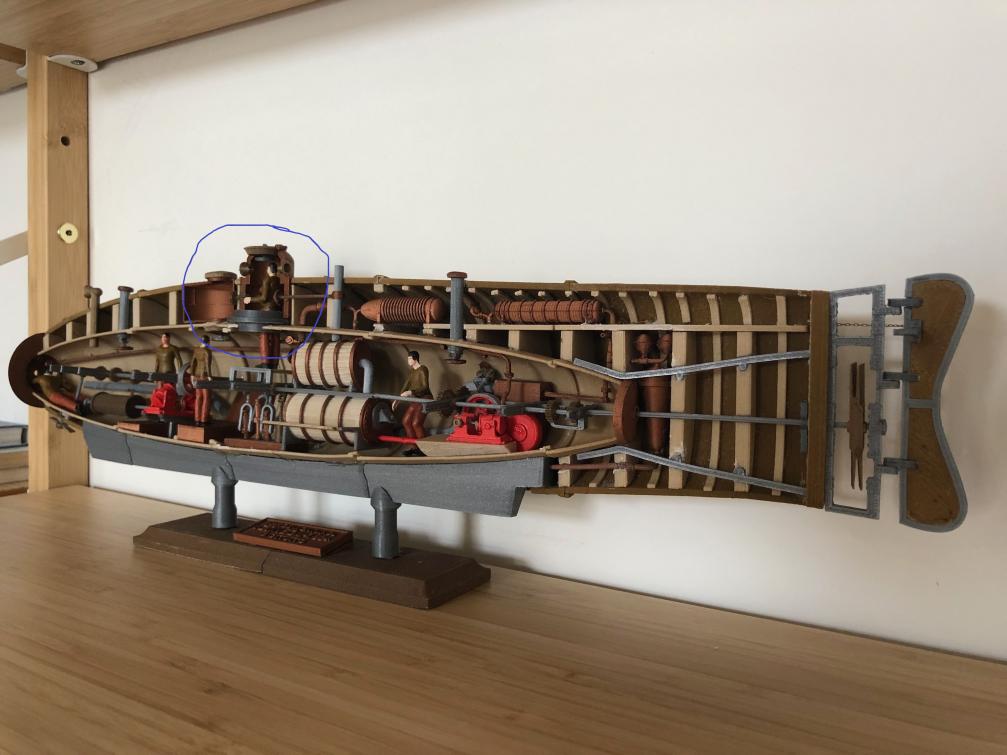

                    Originally posted by rwtdiver View Post

                    Click image for larger version  Name:	ICTINEO ll 10.jpg Views:	0 Size:	49.1 KB ID:	167139



                    Rob

                    https://youtube.com/clip/Ugkx-ucb9ct...EC7IwVlMbaifWG
                    Last edited by redboat219; Yesterday, 01:22 AM.
                    Make it simple, make strong, make it work!

                    Comment


                    • #25
                      I am quite sure that one will work a lot better than the original! Interesting build!
                      I first learned about the Ictineo II from an article of a german modeller who actually made it in RC from wood! A sort of Super-scale model.

                      Jörg

                      Comment


                      • #26
                        Kinda has that Jules Verne vibe.
                        Make it simple, make strong, make it work!
