  • HMS Trafalgar Class Submarine Draft Marks

    Anyone out there have definitive info or pictures as to the locations for the subject draft marks? I have the stuff needed for my Upholder and Oberon hulls. I'm refurbishing a 1/96 HMS Trenchant in the 1991 paint scheme. Recent videos are not conclusive (clear) as to where the numbers go. If you have some pics,and are willing to share, please send to: wlambing AT Or, post them in the British Submarine page on this site (If you can!)



  • #2

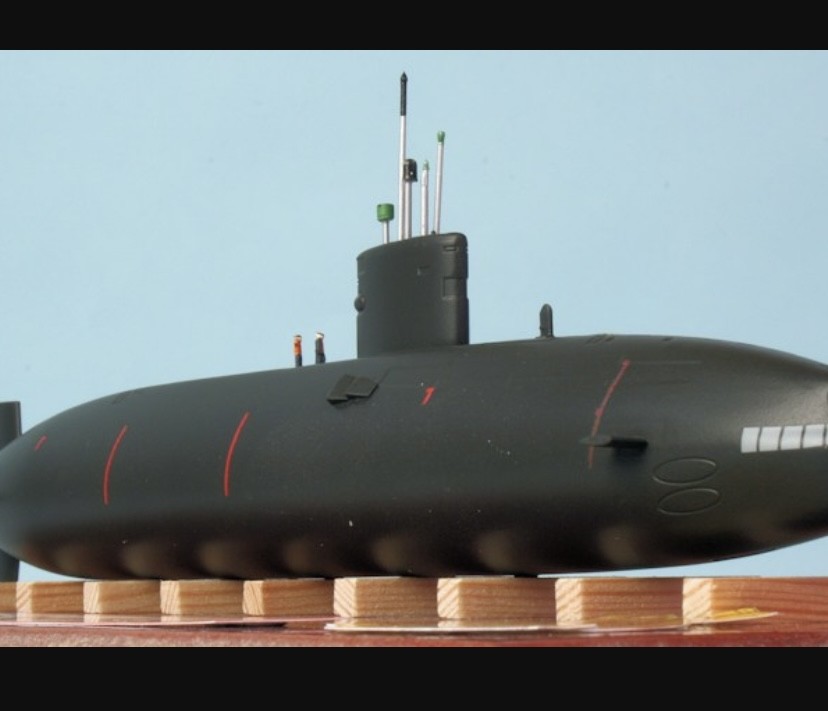

    Click image for larger version

Name:	327C0BB1-5A6C-4B6A-B5D8-8A6FA9CE726A.jpeg
Views:	120
Size:	55.8 KB

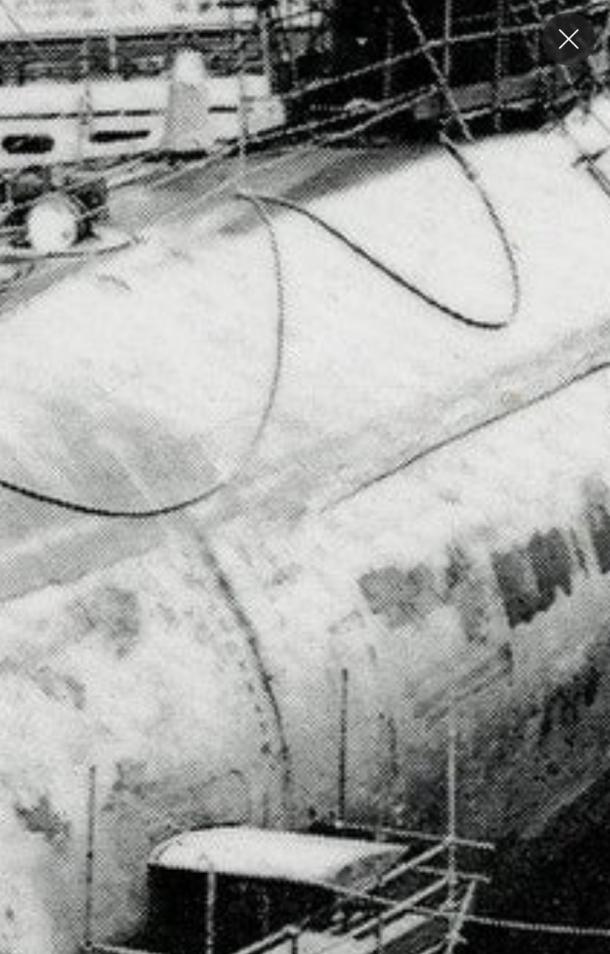

ID:	161960Click image for larger version

Name:	862D7D4A-5128-4431-A243-94A745730590.jpeg
Views:	102
Size:	73.6 KB
ID:	161961
    Of the 40,000 men who served on German submarines, 30,000 never returned.”


    • #3

      Regards Gantu


      • #4

        Regards Gantu


        • #5
          Nice pictures, Gantu! Thank you!


          • #6
            There were some plans released by Jecobin here in the UK. I have a set that came with my Sheerline Trafalgar. They show the markings on them. Not sure if they're still available ? I might be able to get some pics to you if needed ?



            • #7
              Thank you for your help and offers! I finally found the full size set of ships plans I thought I had but were eluding me. I'm all set now!

              Take care,
