1:96 Scale Russian Kilo Kit Build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Another possibility!

    Click image for larger version

Name:	Kilo Hull Cut 1.jpg
Views:	126
Size:	49.2 KB
ID:	158166Click image for larger version

Name:	Kilu Hull Cut 2.jpg
Views:	111
Size:	46.5 KB
ID:	158167

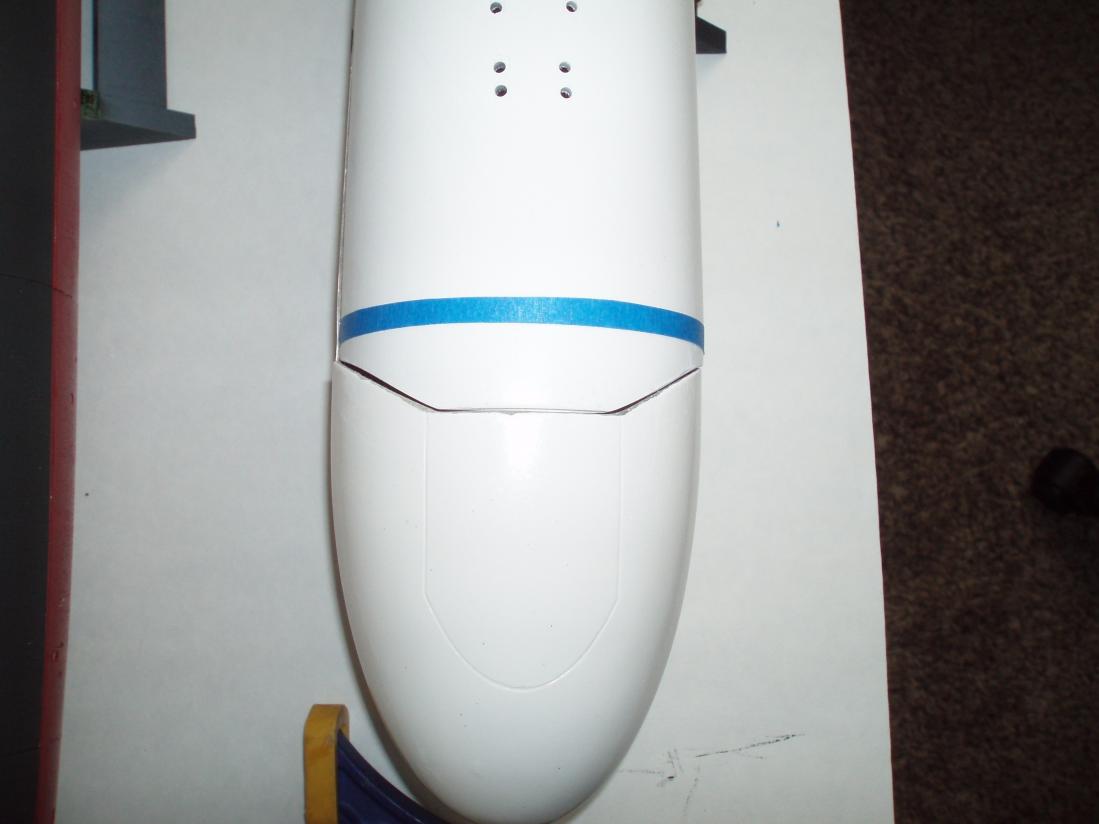

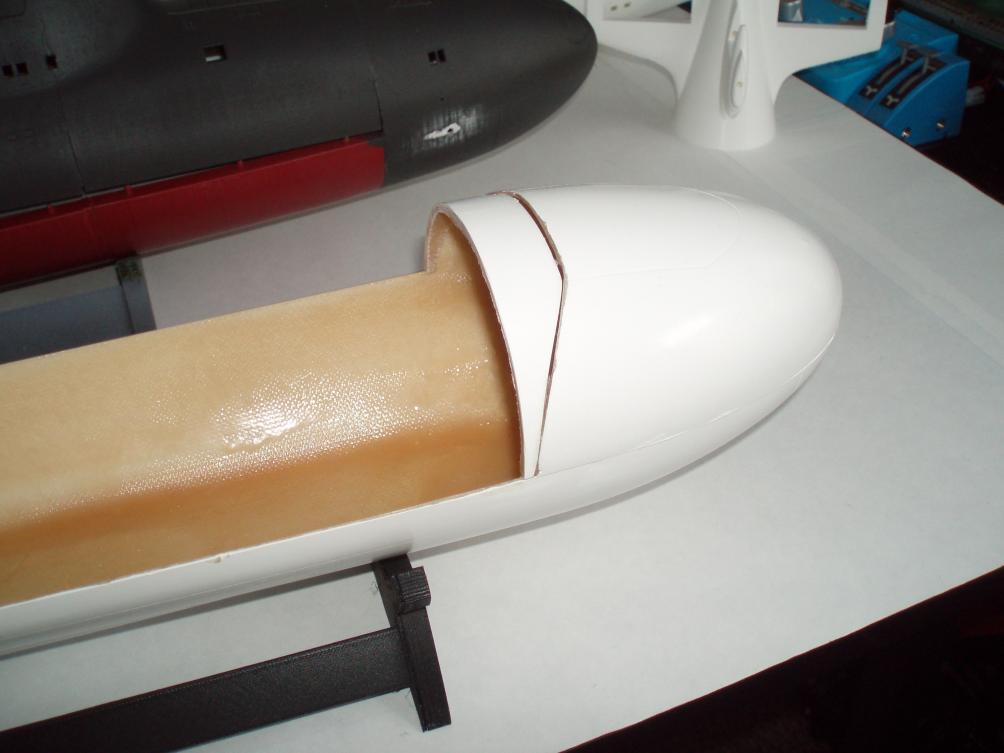

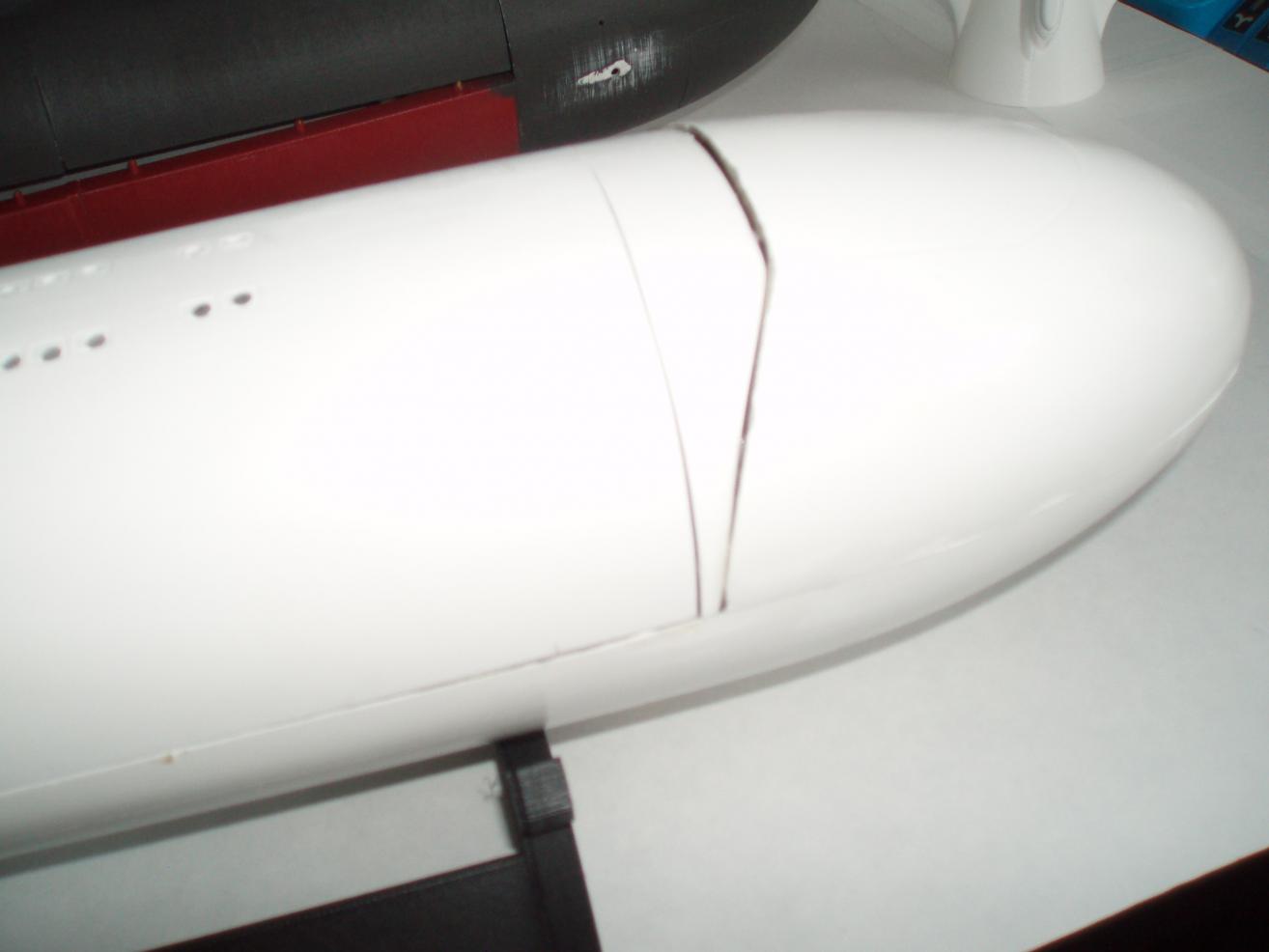

    I am going to cut the hull and square it off. It will make a much cleaner connection at the bow. After looking over the kit parts photos on Nautilus Drydocks, that is just how the bow section looks!

    Rob
    "Firemen can stand the heat"

    Comment


    • #17
      Hot damn, I’m following this one with popcorn.
      Of the 40,000 men who served on German submarines, 30,000 never returned.”

      Comment


      • #18
        Originally posted by rwtdiver View Post

        David,

        Thank you for the photos, and the information on the Blueback kit.

        Click image for larger version  Name:	Kilo Hull 1.jpg Views:	0 Size:	54.5 KB ID:	158158Click image for larger version  Name:	Kilo Hull 2.jpg Views:	0 Size:	54.1 KB ID:	158159

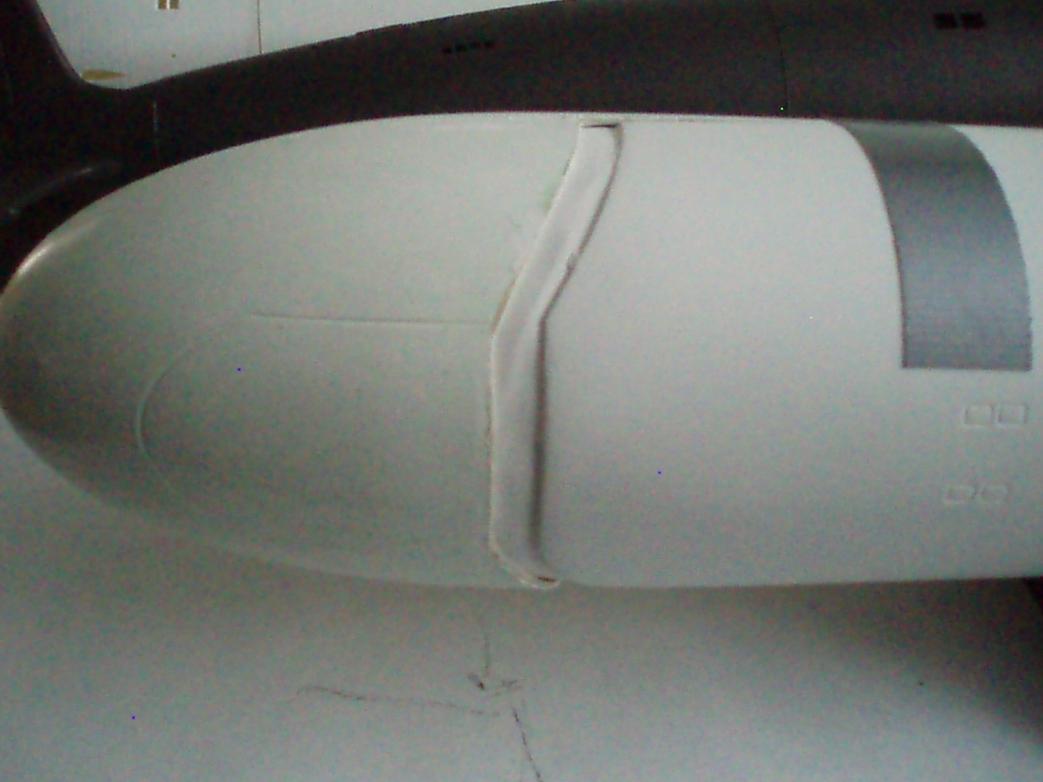

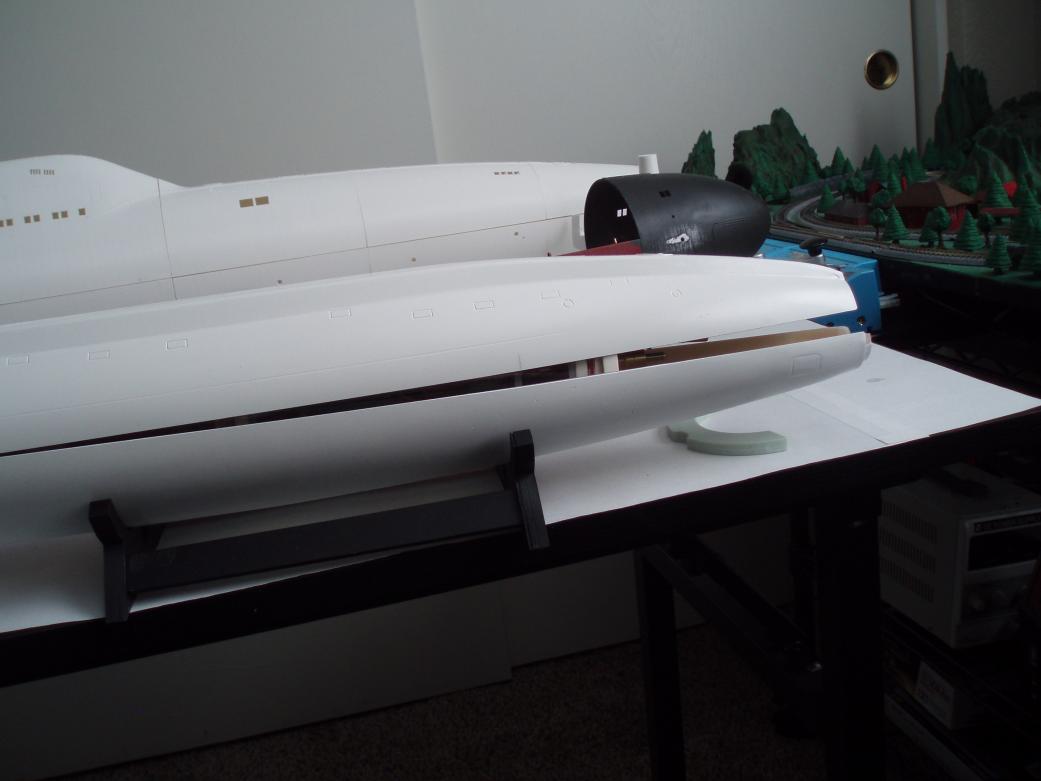

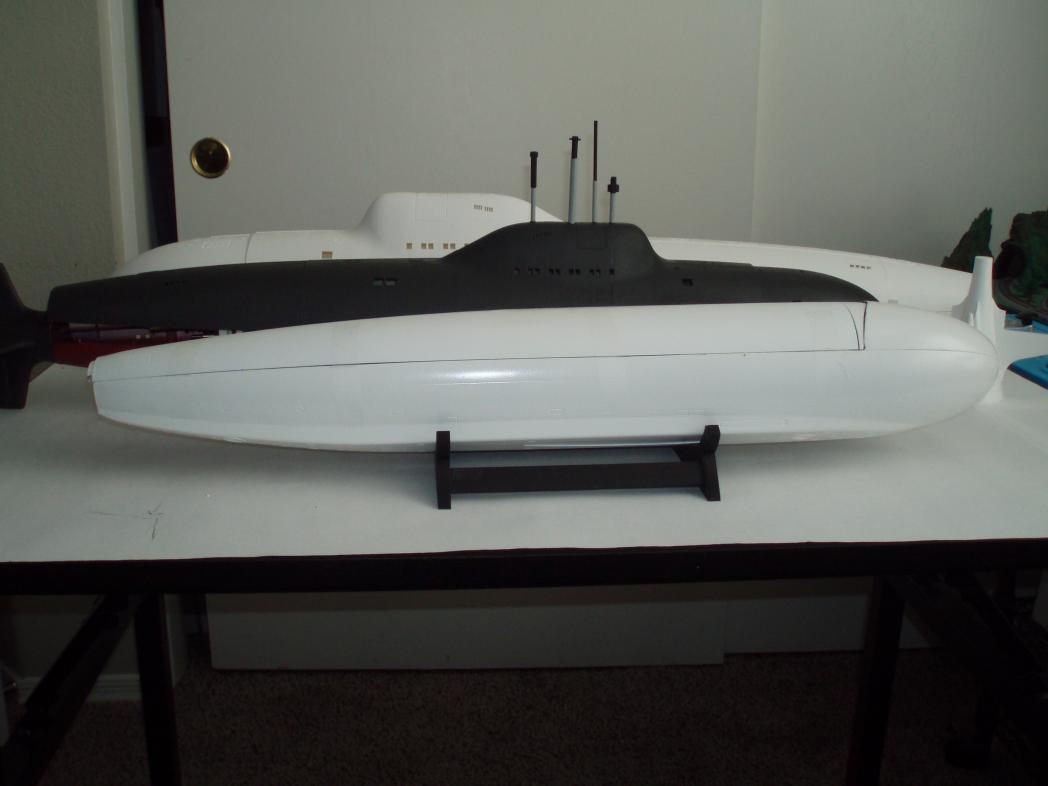

        Photos above are before, or how the Kilo kit came to me.


        The photos above show what I was able to get done today. I guess I am making head way!

        Rob
        "Firemen can stand the heat"
        A little heat goes a long way.
        Last edited by Das Boot; 01-20-2022, 01:23 AM.
        Of the 40,000 men who served on German submarines, 30,000 never returned.”

        Comment


        • #19
          Originally posted by rwtdiver View Post
          Another possibility!

          Click image for larger version

Name:	Kilo Hull Cut 1.jpg
Views:	126
Size:	49.2 KB
ID:	158166Click image for larger version

Name:	Kilu Hull Cut 2.jpg
Views:	111
Size:	46.5 KB
ID:	158167

          I am going to cut the hull and square it off. It will make a much cleaner connection at the bow. After looking over the kit parts photos on Nautilus Drydocks, that is just how the bow section looks!

          Rob
          "Firemen can stand the heat"
          Rob

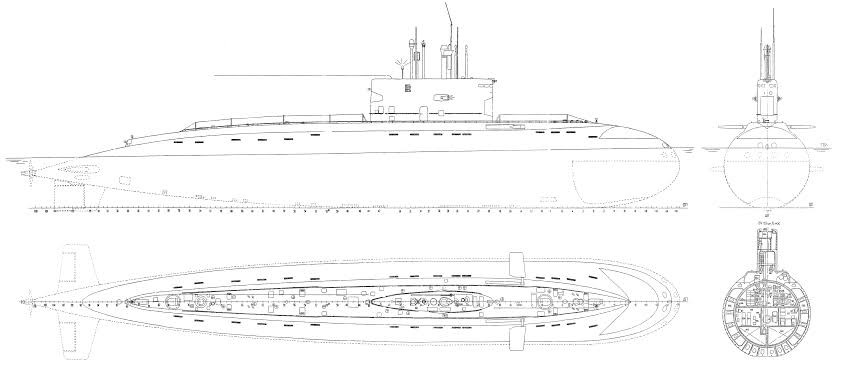

          The existing hull separation follows the lower sonar dome window outline which makes hiding the seam easy. Click image for larger version

Name:	images (26).jpeg
Views:	115
Size:	47.0 KB
ID:	158177
          Make it simple, make strong, make it work!

          Comment


          • #20

            I have another question as to the type of adhesive I should use on the fiberglass Kilo hull? It seems to be fiberglass and resin construction. I will be gluing the stern section, which is a David M. cast type structure to the fiberglass hull. This is all new to me. I could not find it specifically in my Diving Deep book.

            Romel, thank you for the Kilo sketch that you posted in the above photo in your post.

            Rob
            "Firemen can stand the heat"
            Last edited by rwtdiver; 01-20-2022, 07:13 PM.

            Comment


            • #21
              Originally posted by rwtdiver View Post
              I have another question as to the type of adhesive I should use on the fiberglass Kilo hull? It seems to be fiberglass and resin construction. I will be gluing the stern section, which is a David M. cast type structure to the fiberglass hull. This is all new to me. I could not find it specifically in my Diving Deep book.

              Romel, thank you for the Kilo sketch that you posted in the above photo in your post.

              Rob
              "Firemen can stand the heat"
              Check out the bottom part of this post.
              https://forum.rc-sub.com/forum/gener...-s-work/page55
              Of the 40,000 men who served on German submarines, 30,000 never returned.”

              Comment


              • #22
                Originally posted by Das Boot View Post
                Check out the bottom part of this post.
                https://forum.rc-sub.com/forum/gener...-s-work/page55
                Perfect Casey!

                Thank you for finding Davids work and posting it up for me. Appreciate the help.

                Rob
                "Firemen can stand the heat"

                Comment


                • #23

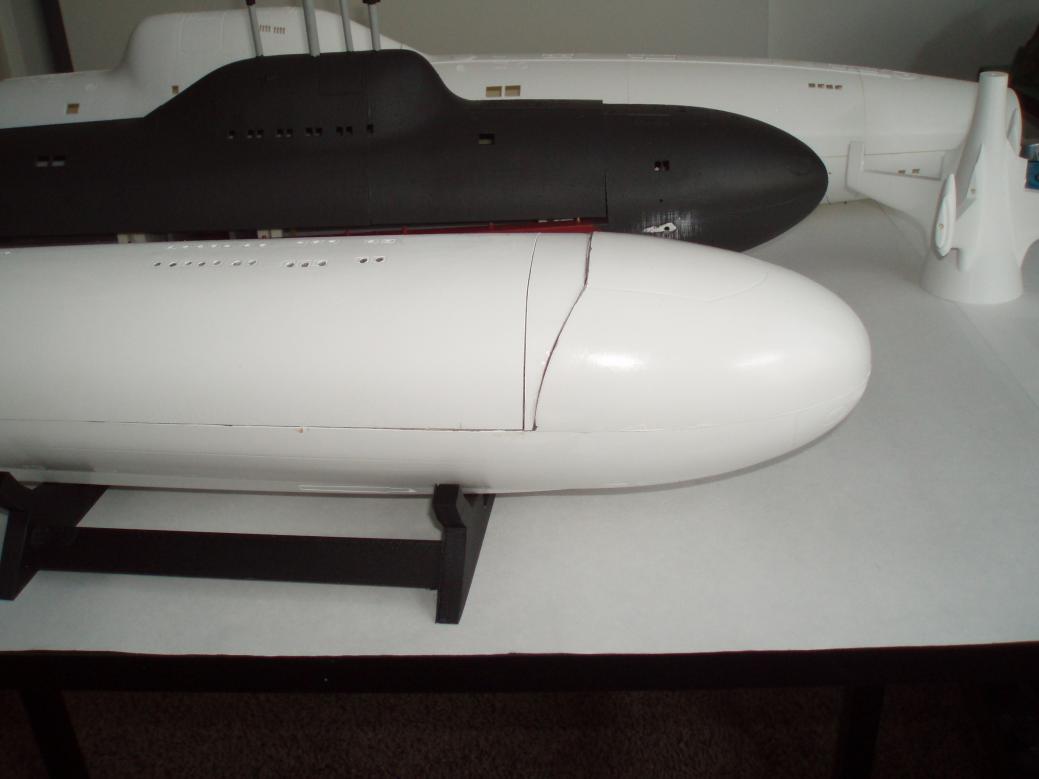

                  I got brave and made the hull bow cut!

                  Click image for larger version

Name:	Kilo Hull Cut 1.jpg
Views:	96
Size:	51.6 KB
ID:	158268Click image for larger version

Name:	K Hull Cut 2.jpg
Views:	81
Size:	52.0 KB
ID:	158269

                  Click image for larger version

Name:	K Hull Cut 3.jpg
Views:	85
Size:	46.1 KB
ID:	158270

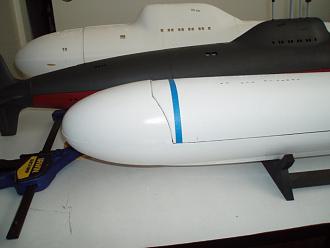

                  As you can see by the photos, this cut makes a much cleaner joint. I will use fiberglass and resin on the inside of the hull to secure the cut piece. I will them use Bodo to fill the gaps, and sand it to the contour of the bow. To me this is going to make a much tighter seam between the top and bottom hull sections.

                  Rob
                  "Firemen can stand the heat"

                  Comment


                  • #24
                    A viable fix, Rob. Good plan.

                    David
                    Resident Luddite

                    Comment


                    • #25
                      Originally posted by He Who Shall Not Be Named View Post
                      A viable fix, Rob. Good plan.

                      David

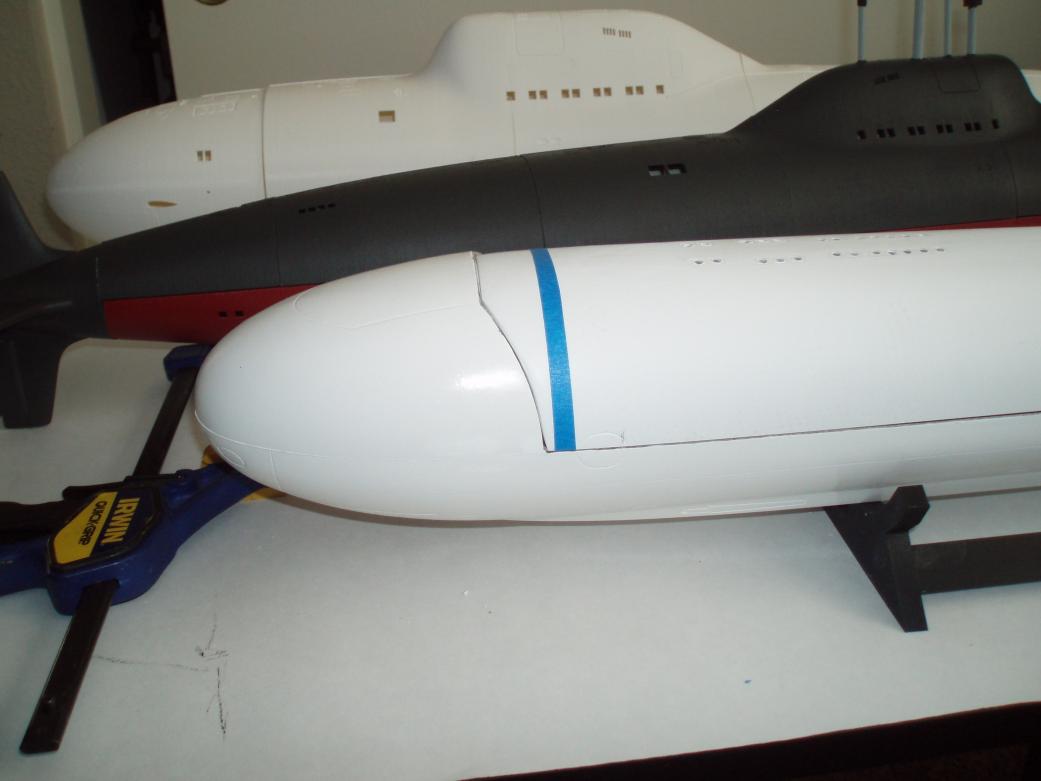

                      Thanks David,

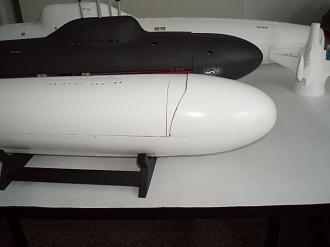

                      We are getting closer!

                      Click image for larger version

Name:	Kilo Hull Seam.jpg
Views:	82
Size:	45.0 KB
ID:	158274

                      Rob
                      "Firemen can stand the heat"

                      Comment


                      • #26

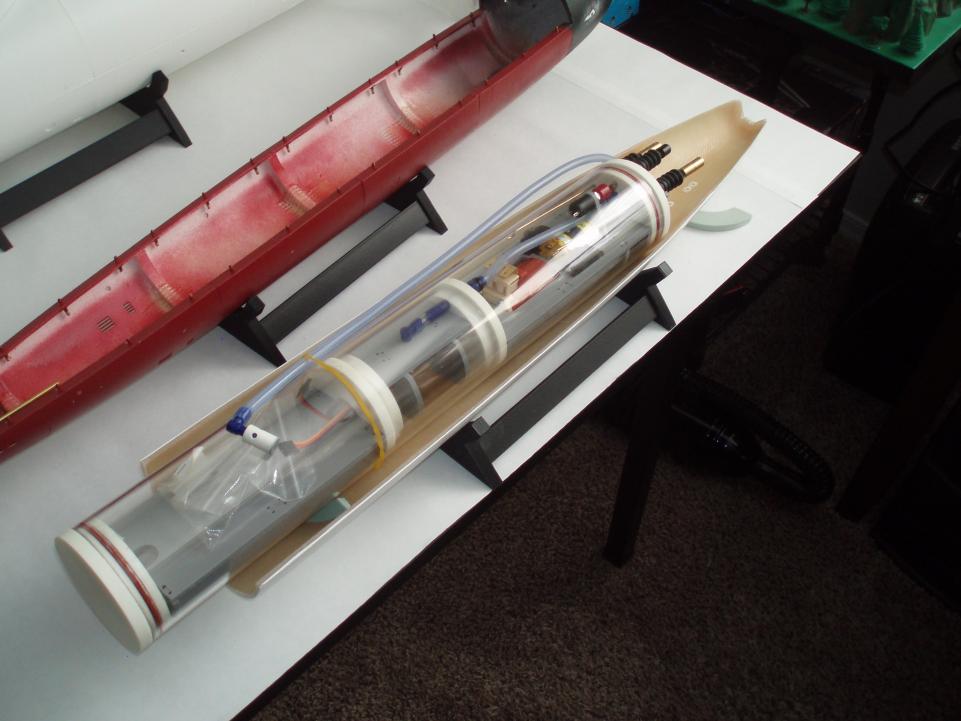

                        Now that I have the bottom and top hull sections of the Kilo lined up, it was time to fit the WTC!

                        Click image for larger version

Name:	WTC 3.jpg
Views:	94
Size:	70.0 KB
ID:	158329Click image for larger version

Name:	WTC 4.jpg
Views:	68
Size:	47.6 KB
ID:	158330

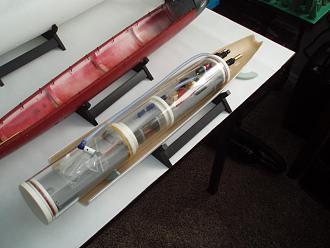

                        The WTC that I ordered for the Kilo kit is going to be a problem to fit into the Kilo hull. As it sits now without any cradles (except the one forward) it is sitting on the floor of the bottom hull, you can see it won't close down. If I push the WTC forward to make the stern rest down, then the WTC is to far forward to fit into the bow properly to be able to have any forward dive planes at all. This WTC is not a good fit for the Kilo 1:96 scale kit! Plus the fact if I cannot use any cradles in the hull, it will be a problem with ballast weights in the bottom.

                        Click image for larger version

Name:	WTC 1.jpg
Views:	73
Size:	60.0 KB
ID:	158331

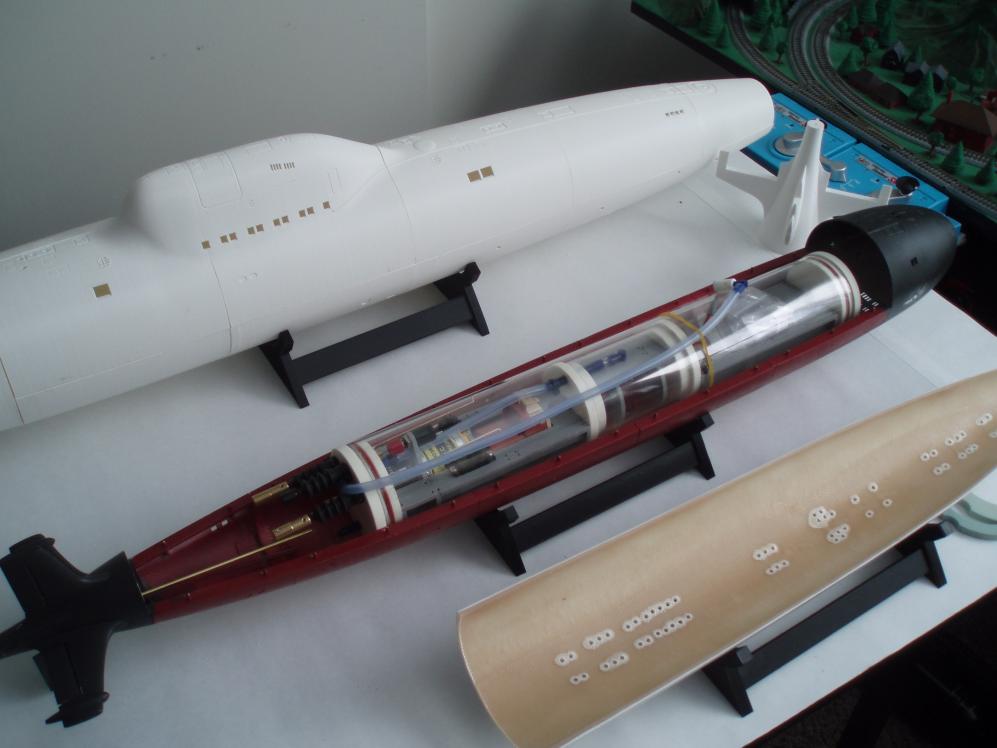

                        As you can see by the photo above the 70 mm WTC is as perfect fit for my 3D printed Russian Alfa.

                        As for the Kilo kit, I may try to make the 70 mm WTC fit and not have any forward dive plains. Not sure at this point. May design and build my own WTC for the Kilo!?!

                        Rob
                        "Firemen can stand the heat"

                        Comment


                        • #27
                          Rob,

                          The 70mm unit does fit in the Kilo, but it's tight, as you say. That cylinder actually has a lot of wasted space both in the battery and electronics compartments. You can easily shave about an inch from each, particularly if you take the time to reorganize the motor compartment.

                          In regard to bow planes, you'd absolutely want to install a servo in the battery compartment. Then it's just a straight shot out the front to the planes (albeit taking a detour up and around for Kilo).

                          Bob

                          Comment


                          • #28
                            Originally posted by SubHuman View Post
                            Rob,

                            The 70mm unit does fit in the Kilo, but it's tight, as you say. That cylinder actually has a lot of wasted space both in the battery and electronics compartments. You can easily shave about an inch from each, particularly if you take the time to reorganize the motor compartment.

                            In regard to bow planes, you'd absolutely want to install a servo in the battery compartment. Then it's just a straight shot out the front to the planes (albeit taking a detour up and around for Kilo).

                            Bob
                            Thanks for the response, Bob!

                            I will find a way to make things work! As for the forward dive planes, I was thinking their location was more to the center of the hull (my bad for not studying the photos) I will get a servo mounted somewhere to make them work. As for cutting into the WTC cylinder, that is not going to happen!

                            The 70 mm WTC is also going to be used on my Alfa. This whole concept of using fiberglass and resin, and casting hulls is not for me. I do not have a shop with the proper tooling or the space. I also cannot work with those type of materials without a lot of cover up. I have LEARNED my lesson well on this one! I take FULL responsibility for my purchase on the Kilo kit, I will do what I can with it and move on.

                            3D PRINTING ONLY for me from now on!!!

                            Rob
                            "Firemen can stand the heat"

                            Comment


                            • #29
                              What is the bay in the battery compartment for?
                              Of the 40,000 men who served on German submarines, 30,000 never returned.”

                              Comment


                              • #30
                                Originally posted by Das Boot View Post
                                What is the bay in the battery compartment for?
                                Casey,

                                I am not sure. I have not opened the WTC up yet to take a good hard look.

                                Rob
                                "Firemen can stand the heat"
