Hybrid Ballast Tank/Piston System

  • Filter
  • Time
  • Show
Clear All
new posts

  • #46

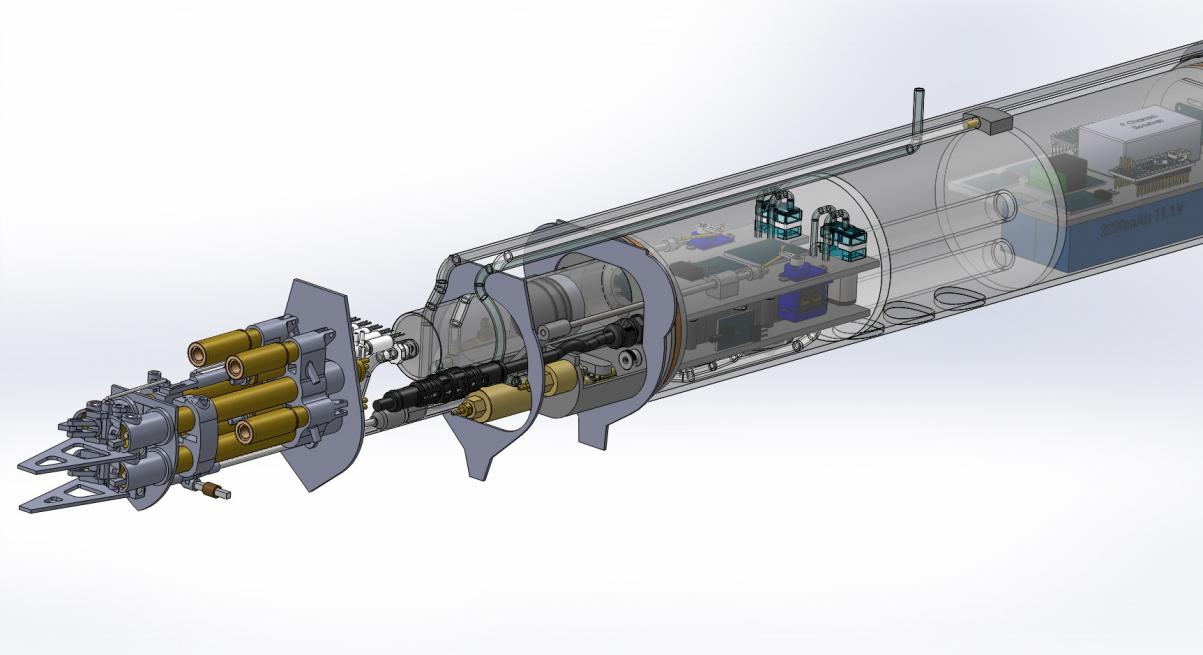

    Click image for larger version

Name:	CFF560FC-5605-4484-AE25-A5EA9752BE4D.jpeg
Views:	83
Size:	69.8 KB
ID:	147679 Sneak peak of the project progress.

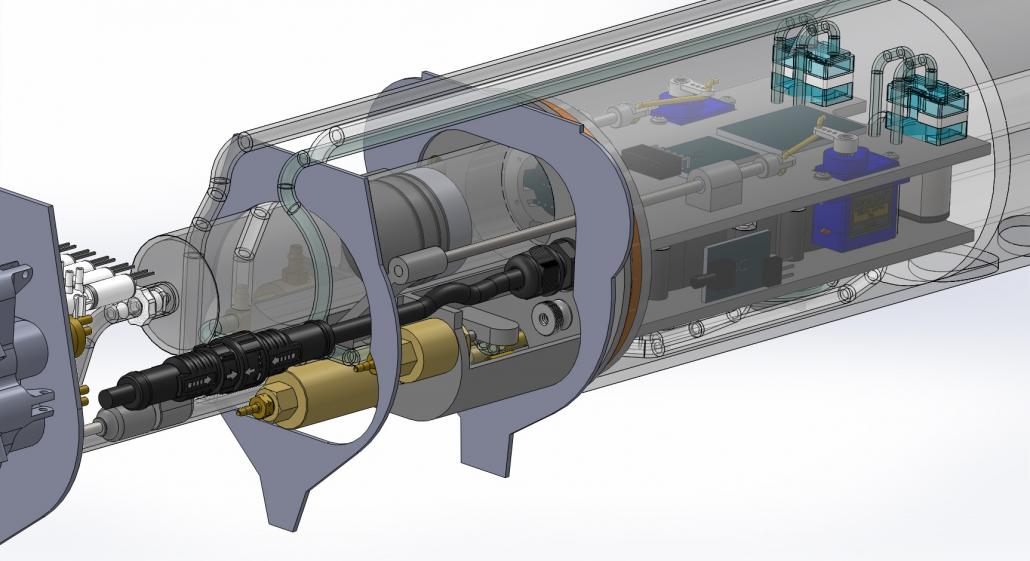

    Click image for larger version

Name:	E04D55DC-3232-4D41-9560-3FD0FF4D8164.jpeg
Views:	84
Size:	88.5 KB
ID:	147676Click image for larger version

Name:	56E88AF7-C308-4F97-861C-44C59262069B.jpeg
Views:	81
Size:	73.8 KB
ID:	147675

    Click image for larger version

Name:	1E6C6913-A537-43AC-83DC-D05E35D92419.jpeg
Views:	82
Size:	64.1 KB
ID:	147673Click image for larger version

Name:	1A396DA4-5AE4-4279-AF81-7676A841DC7F.jpeg
Views:	81
Size:	93.6 KB
ID:	147677Click image for larger version

Name:	AB9BF8D6-8936-4439-8027-E32F57DF1D33.jpeg
Views:	81
Size:	90.8 KB
ID:	147678
    Attached Files


    • #47
      Here is the current progress as of this moment on the WTC build experiment.

      Click image for larger version

Name:	IMG_2494.jpg
Views:	72
Size:	80.7 KB
ID:	147714

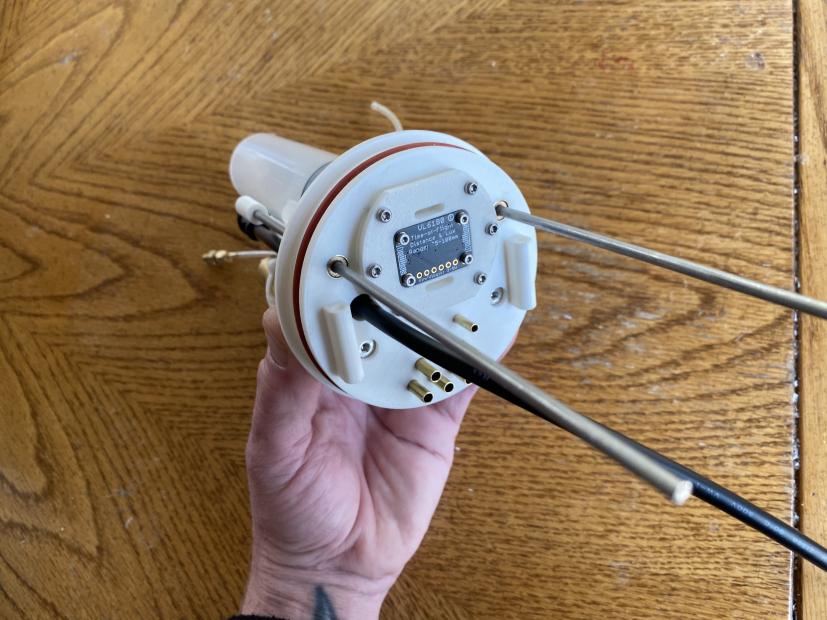

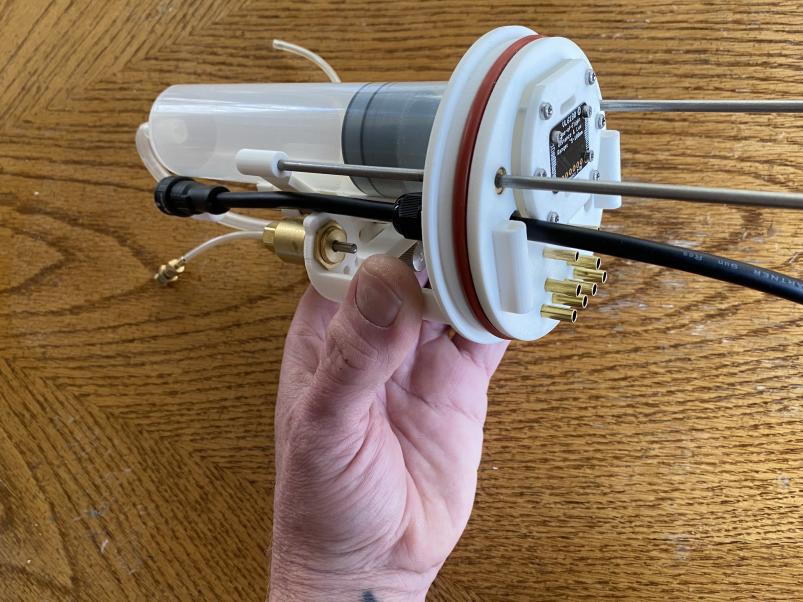

      Backside of the forward end cap.

      Click image for larger version

Name:	IMG_2495.jpg
Views:	65
Size:	90.2 KB
ID:	147715

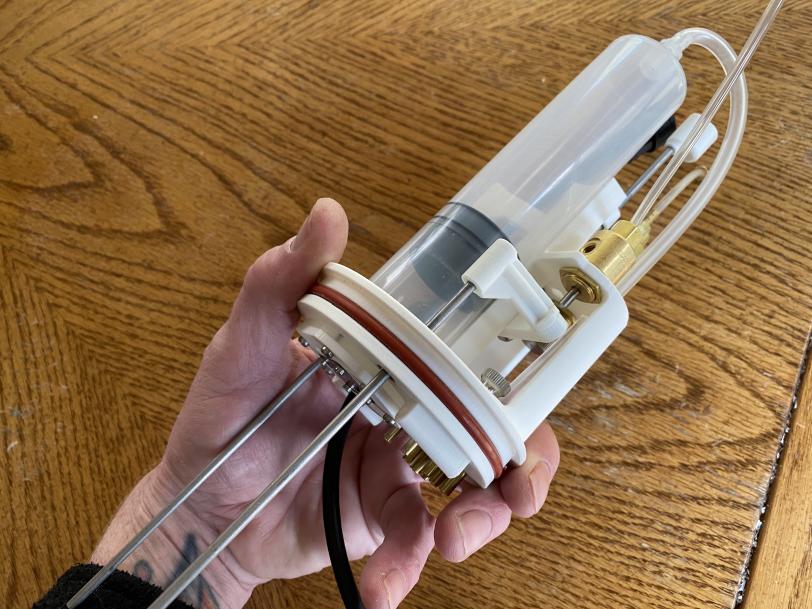

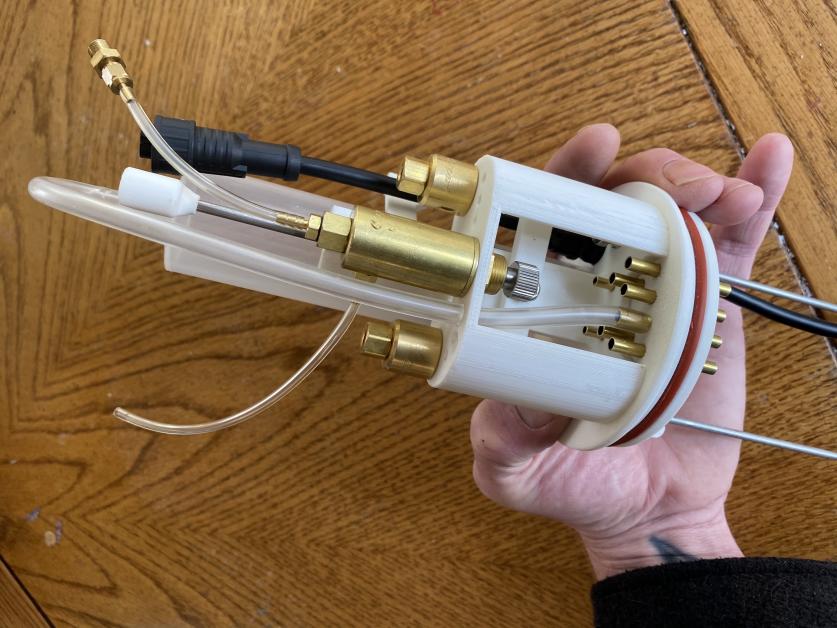

      Different camera angle. The brass nipples were a press fit. All of the various holes were finish sized with a straight flute reamer prior to the test fitting the parts to the assembly.

      Click image for larger version

Name:	IMG_2496.jpg
Views:	69
Size:	86.4 KB
ID:	147716

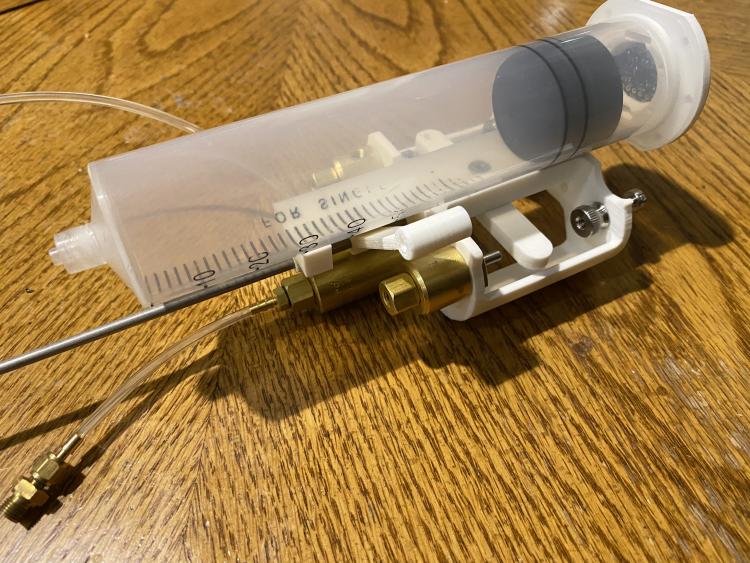

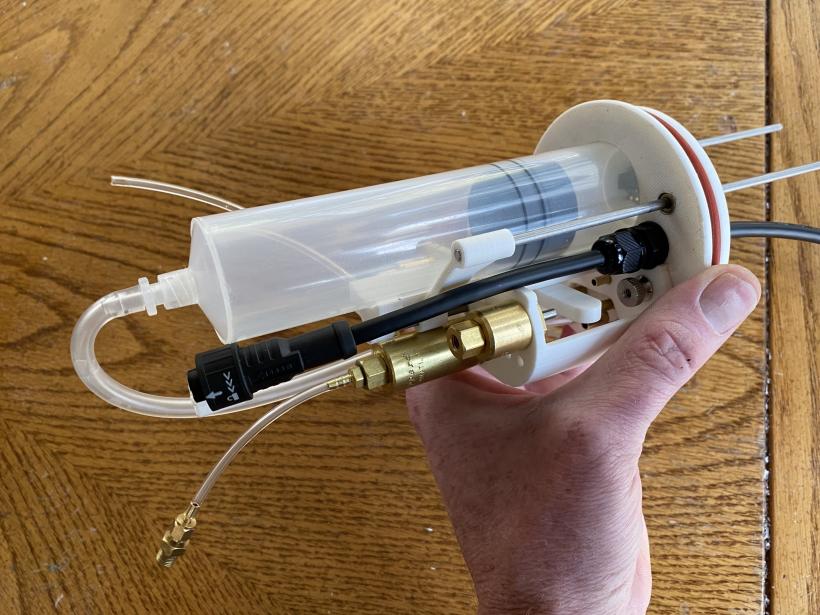

      Port side view.

      Here the brass emergency gas blow valve visible as well as the brass adjustable pressure regulator for the torpedo solenoids.

      The push rods used u-cup seals. I used Bob's trick to build them that he explains in detail on his YouTube channel. The only difference is i use an oil-lite bearing on either side of the u-cup seal. The bearings are held in place with a dab of blue Loctite.

      The IP68 one piece molded multi pin connector passes through the end cap using a IP68 rated cable gland. Silicon sealer will be used on the threads and sealing bit of the cable gland during final assembly. Not needed but extra insurance.

      Click image for larger version

Name:	IMG_2497.jpg
Views:	64
Size:	91.1 KB
ID:	147717

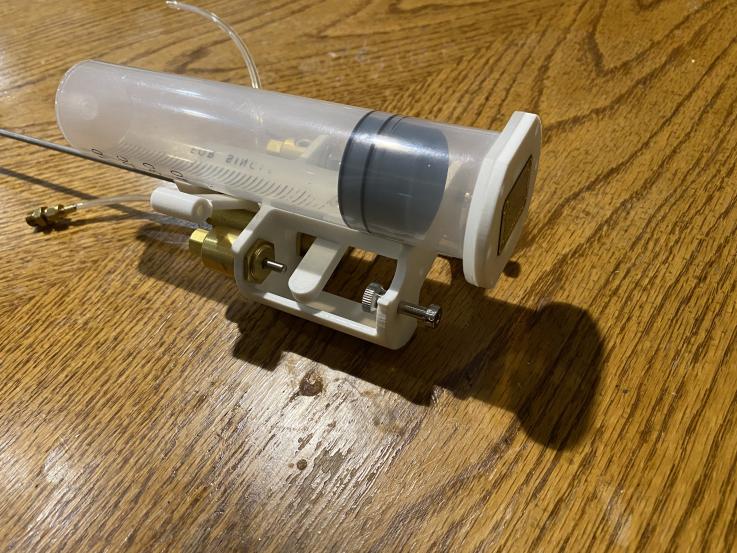

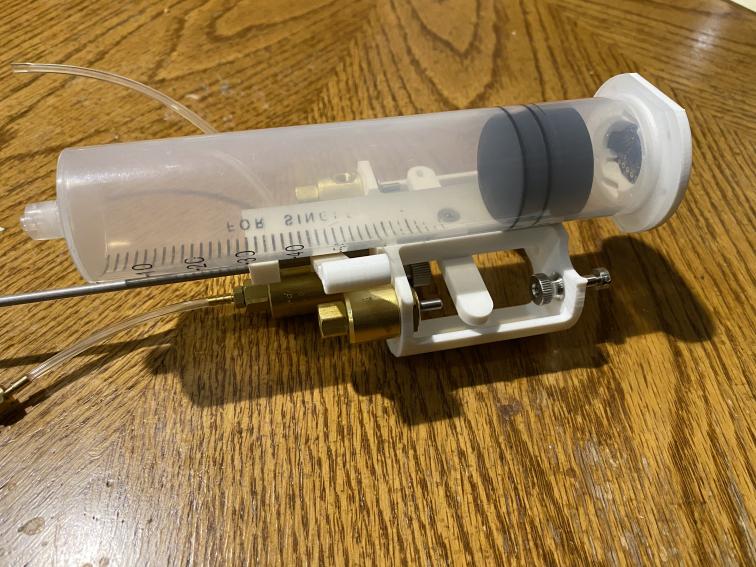

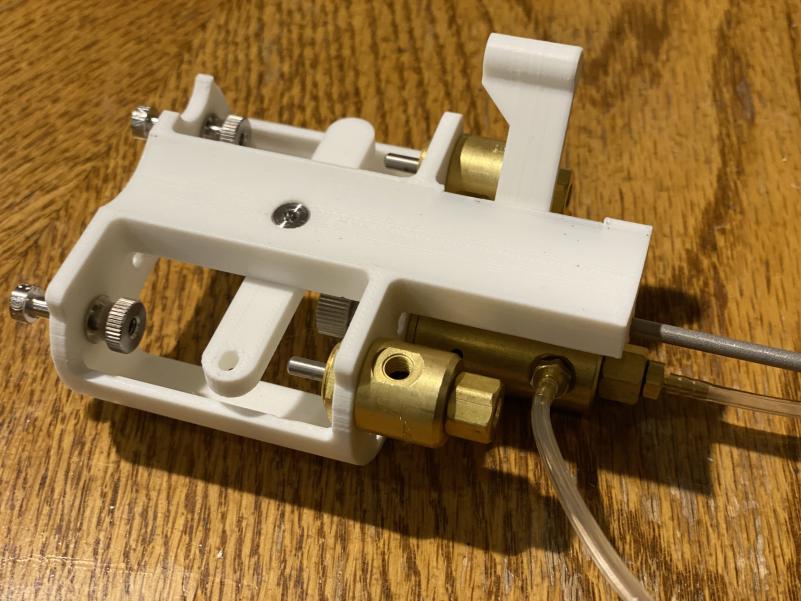

      Starboard side.

      Both push rods travel very smoothly. Here you can see the other brass valve that vents the main ballast tank.

      Click image for larger version

Name:	IMG_2498.jpg
Views:	64
Size:	79.9 KB
ID:	147718


      Click image for larger version

Name:	IMG_2499.jpg
Views:	64
Size:	87.7 KB
ID:	147719

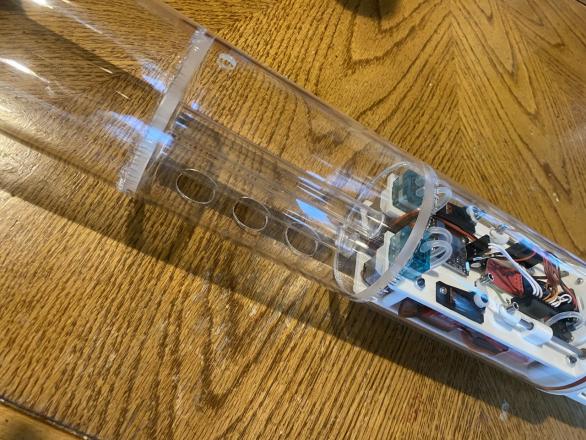

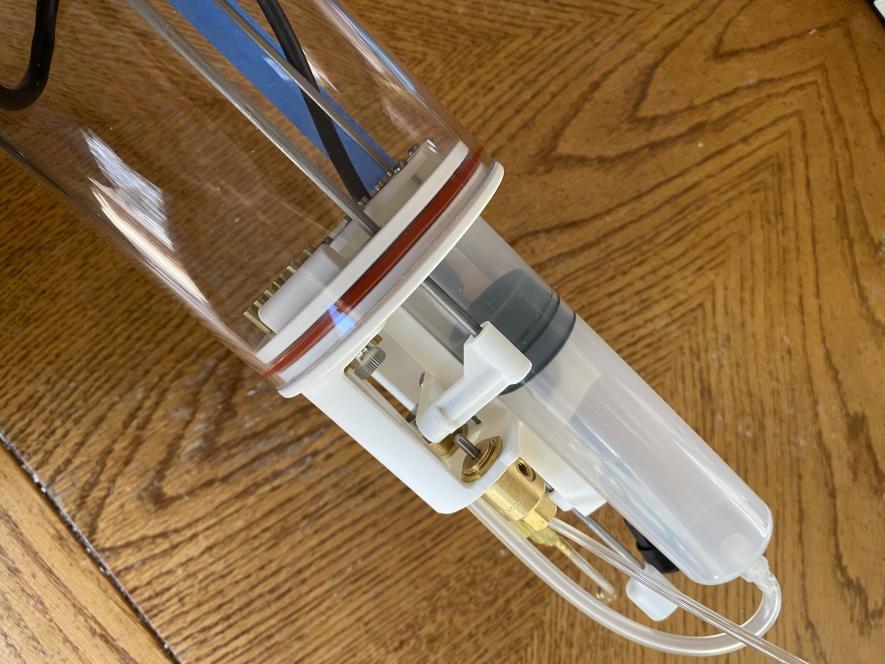

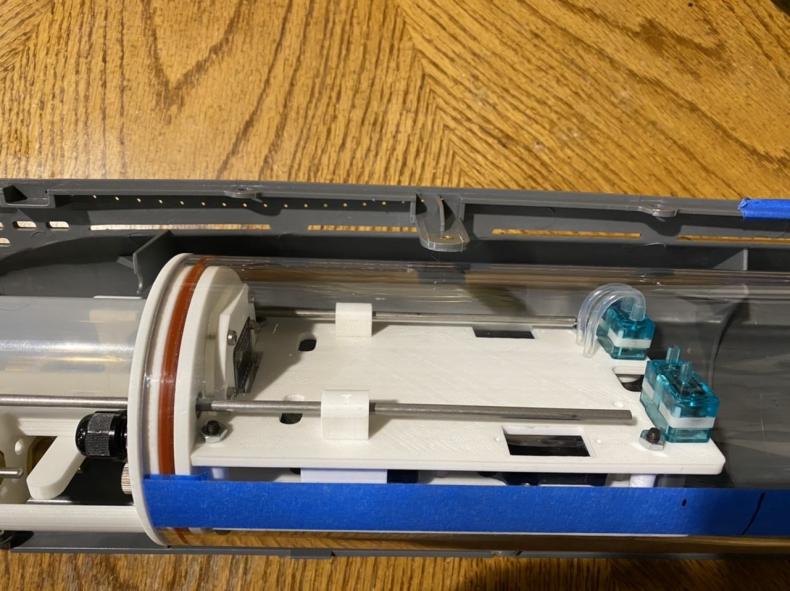

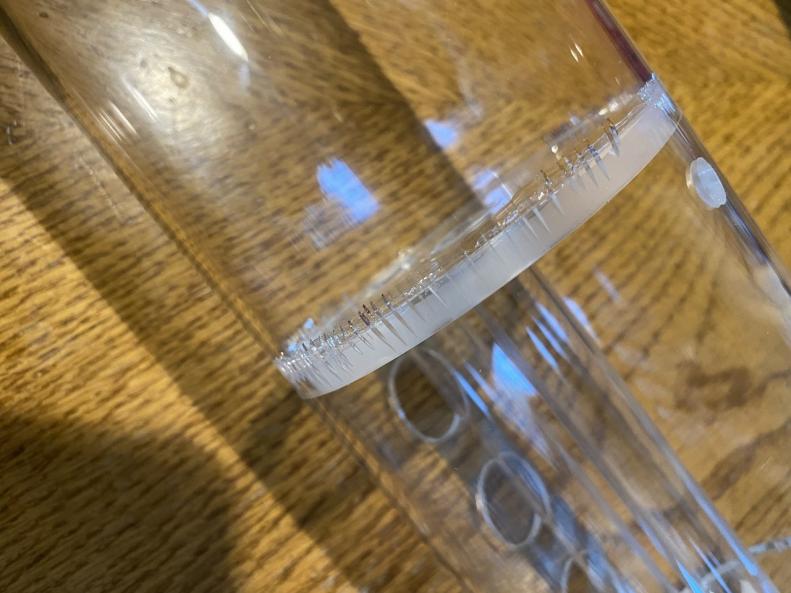

      Test fitting with the 90mm OD Acrylic WTC tube. Nice consistent O-ring squish all around.

      Click image for larger version

Name:	IMG_2500.jpg
Views:	63
Size:	90.0 KB
ID:	147720

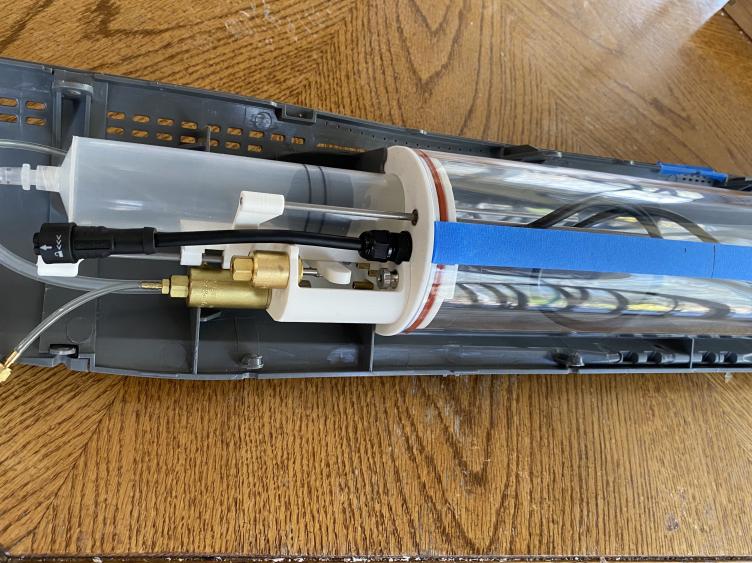

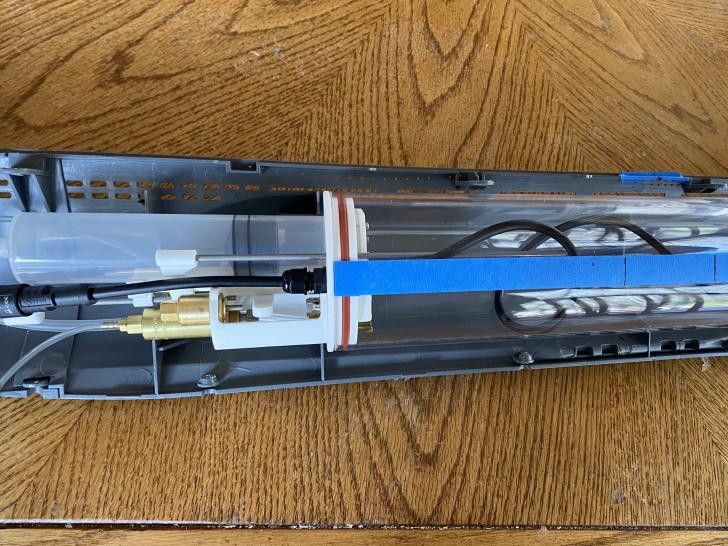

      Test fitting it to the hull to see how I did taking measurements and verifying what I designed in CAD land. Fits as planned. Guess I'm not fired today but there's always tomorrow.

      Click image for larger version

Name:	IMG_2501.jpg
Views:	64
Size:	87.6 KB
ID:	147721

      This about catches up the work with the real parts to date. Need to wrap up a few minor details with the forward equipment shelves before I make those very soon. I had shifted focus recently in the CAD design to the rear compartment and motors but the forward compartment was so close I figure I should finish that first.

      Enjoy the weekend,



      • #48

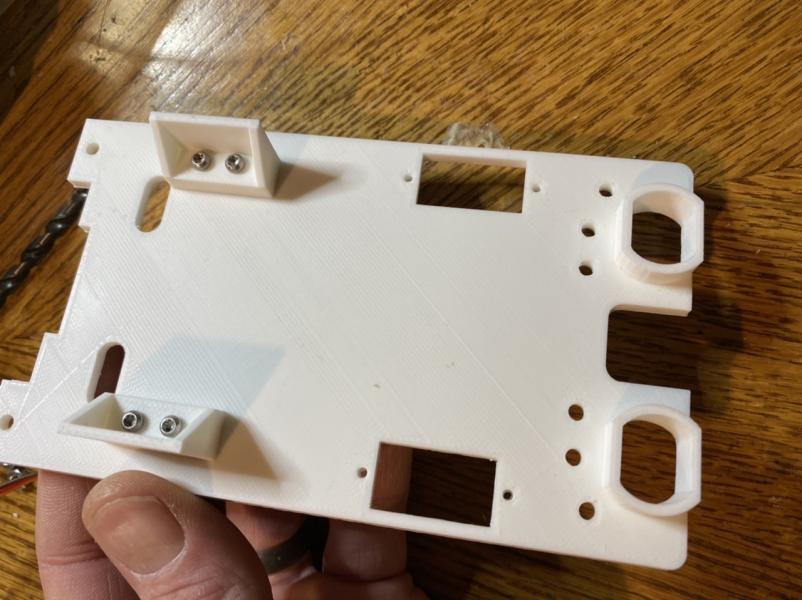

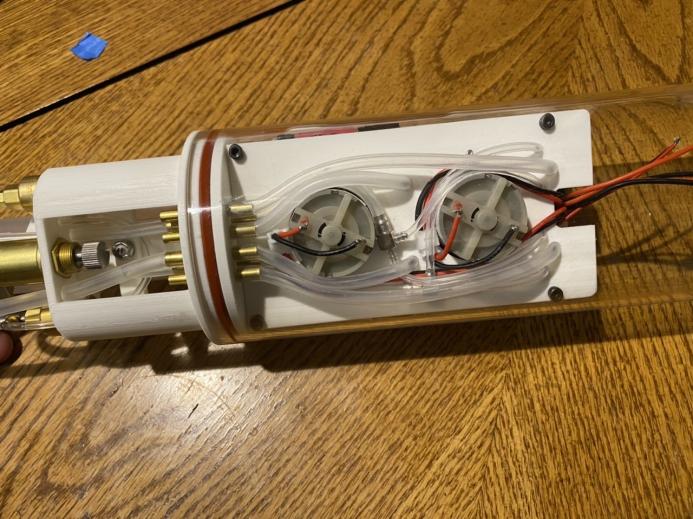

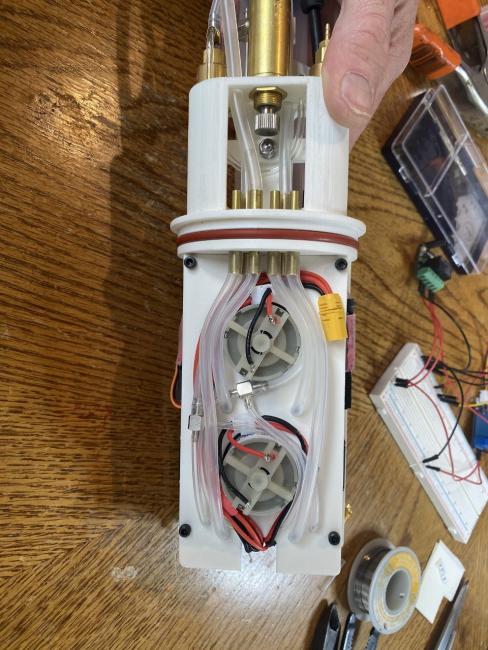

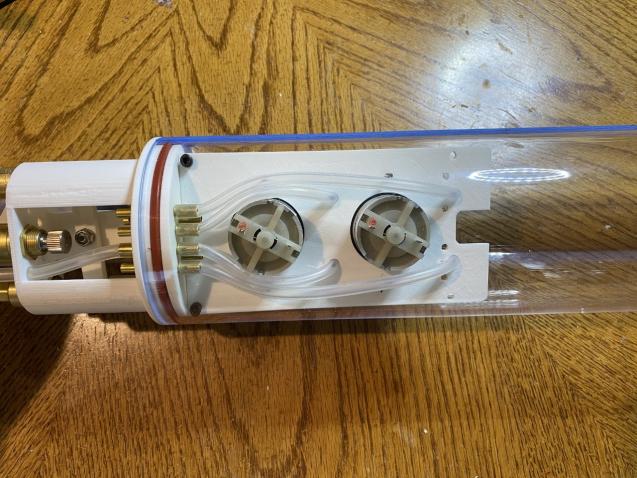

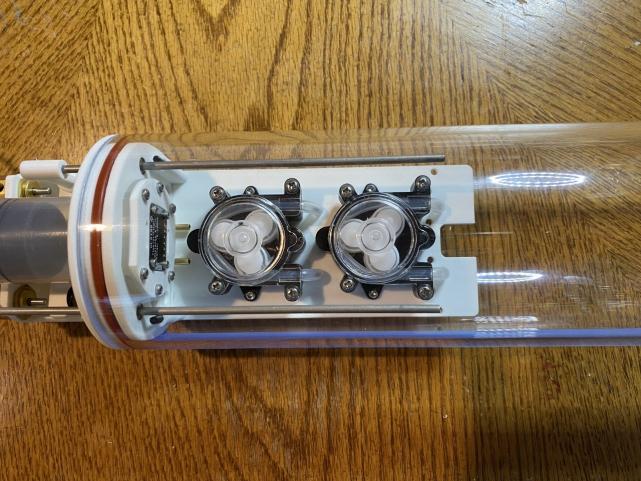

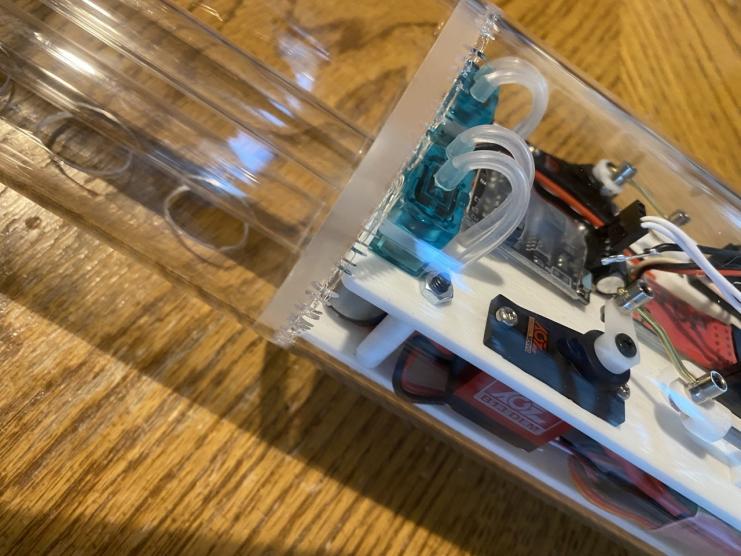

        Got up early this morning and pulled the freshly finished lower pump equipment shelf out of the 3D printer. A quick clean up of a few holes with various sized straight flute machine tool reamers and it was time to test fir the peristaltic pumps and hoses to it.

        Click image for larger version

Name:	IMG_2502 (1280x960) (2).jpg
Views:	70
Size:	65.0 KB
ID:	147731

        Even if this whole experiment proves to be a huge failure, at least it was a learning experience and I'l have a pretty neat looking failure trophy to stare at. Hahaha!

        Click image for larger version

Name:	IMG_2503 (1280x960).jpg
Views:	66
Size:	60.8 KB
ID:	147732

        I had purchased the raw materials to make most of these parts on my mill and lathe but decided to see how printing the parts would turn out first. The finishes of the prints are rough in areas as I am experimenting with printing in lower quality (faster) print settings. I will sand these parts at a later date or give them a vapor smoothing treatment. Still getting to know this machine even though I've made lots of parts with it over the last year.

        Prior to this Experimental WTC project, every part I printed was in the highest resolution and made from ABS due to many parts being small and having critical tolerances. The larger parts of the WTC would take forever if I printed them in the highest resolution. Still I know I could machine most these by hand much faster than the printer could print them at it's lowest (fastest) setting. The nice thing about the printer vs manual machining is, this allows me to focus my time in other areas.



        • #49
          ...and it allows you to go to bed and wake up to a finished print...


          • #50
            This is looking awesome, Nick! Great work!


            • #51
              Quick build update. Was out of bed, vertical and working on the first cup of coffee thanks to the indoor cats and little rug rat deciding it was party time at 3am this morning.... With one eye barely open and the other still twitching open and closed I picked up where I left off on the upper equipment shelf build.

              Installed the port and starboard mounting brackets for the depth controller and the controller for the low pressure blower pumps to the underside of the upper equipment shelf.

              Click image for larger version

Name:	BE9D5C88-BE95-42A3-A09F-D581BB35678C.jpeg
Views:	48
Size:	62.2 KB
ID:	147772

              The screws that hold these in place also hold the above linear pushrod blocks above in place. They act as stiffeners as well.

              Click image for larger version

Name:	2B45317D-56D5-4789-B7B7-EDC6BE3DD2B8.jpeg
Views:	43
Size:	66.0 KB
ID:	147773

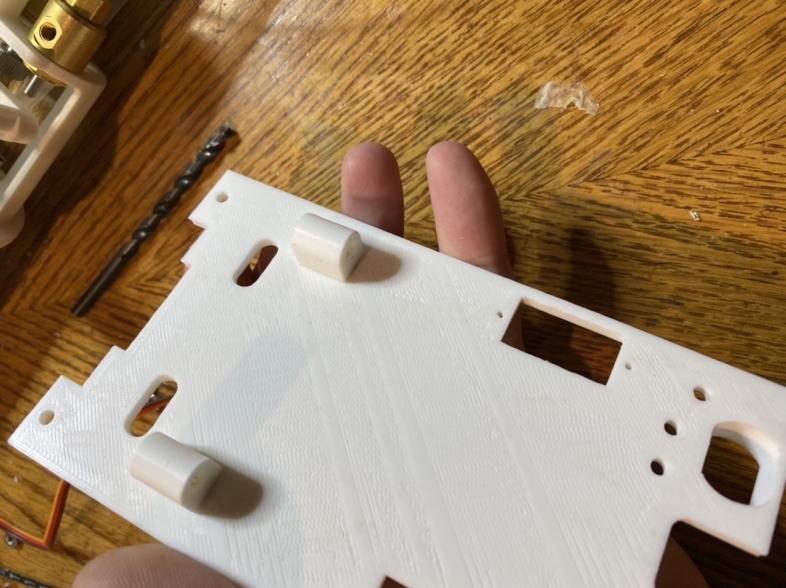

              Above linear pushrod blocks. Only purpose is to lessen side forces on the bulkhead seal bearings from side force transmission from the servos. They are sleeved with a machined Delrin bushings with a few thou tolerance clearance.

              Click image for larger version

Name:	F33ECB9C-4FC8-4EFC-8D54-55BBA9615787.jpeg
Views:	46
Size:	71.5 KB
ID:	147774Last lazy pic of the day, of what I have so far. Waiting on critical small parts to show up for the next forward compartment mock up. So not many updates to follow until those parts get here. Look like they will trickle in over the next couple weeks. Until then I’ll find other areas of design to explore.



              • #52
                I am enjoying your progression on this. Thank you.
                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.


                • #53
                  Thanks Tom!!!


                  • #54
                    Quick update.

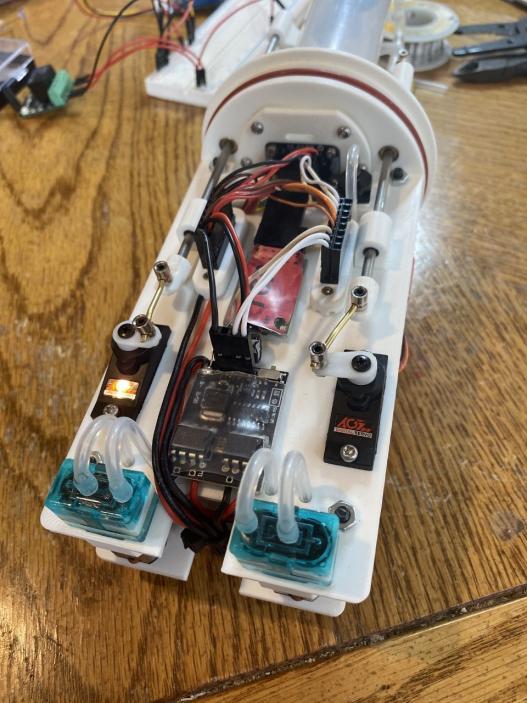

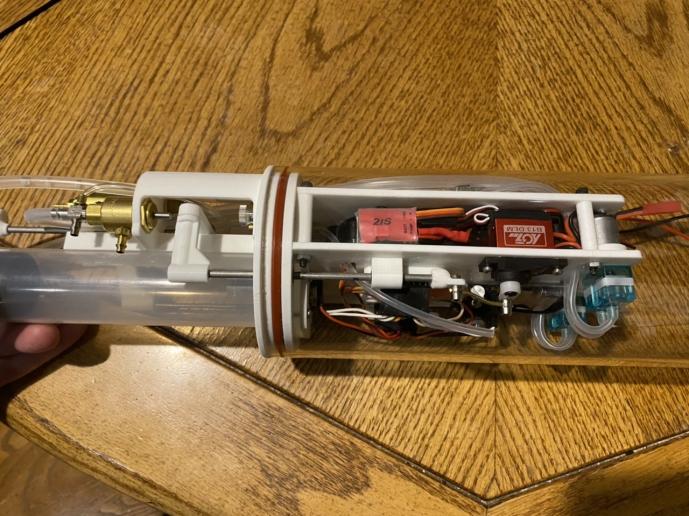

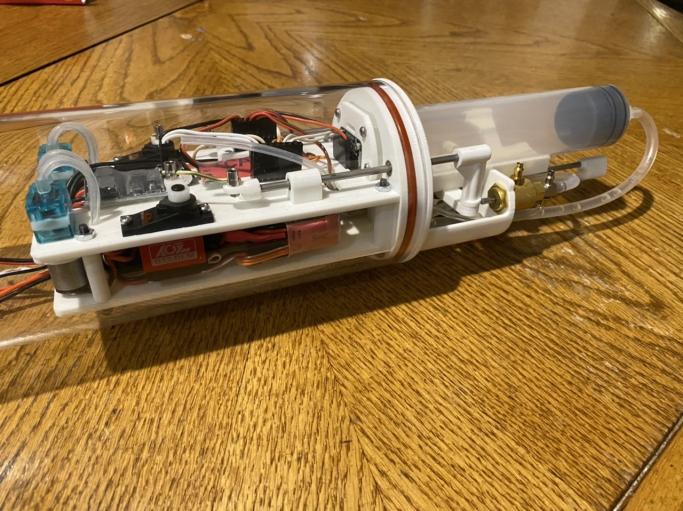

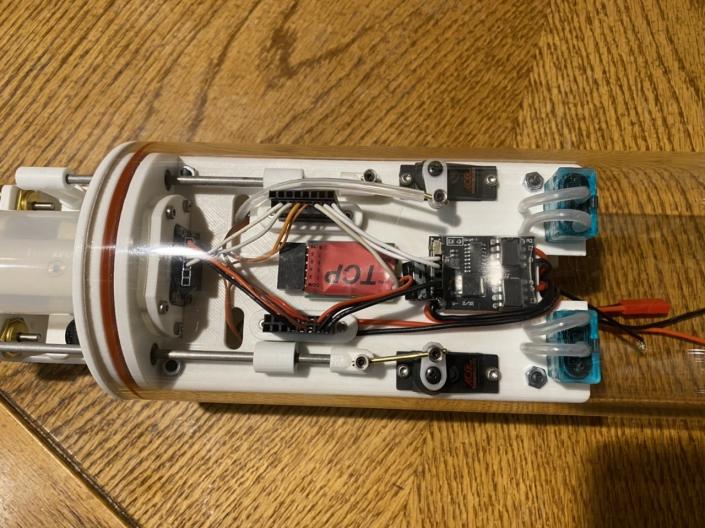

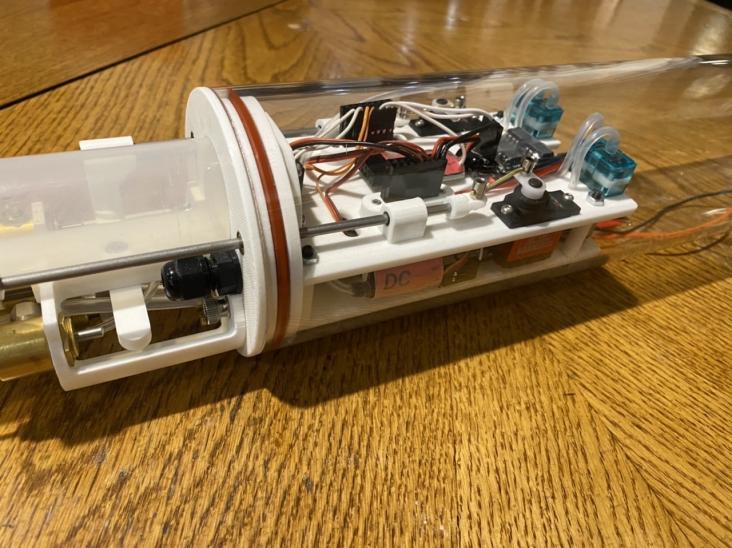

                    Parts have arrived and here is the current state of the forward compartment equipment assembly as of today. Almost finished with the initial assembly mock up of the forward compartment. Just need to add the main depth sensor, main power harness and finish the torpedo command circuits. Will try to write a more detailed report of the build when I get a chance.

                    Click image for larger version

Name:	3CE11274-FA87-4606-A458-CC30A695FD8A.jpeg
Views:	14
Size:	75.0 KB
ID:	148007Click image for larger version

Name:	DF7C6F86-AC7A-4BB8-B2FB-7EB0E89E845B.jpeg
Views:	14
Size:	73.3 KB
ID:	148006Click image for larger version

Name:	033DC611-675D-4640-B274-56ECE0843900.jpeg
Views:	14
Size:	74.5 KB
ID:	148005Click image for larger version

Name:	8E62EABA-4B95-4915-B1AC-7625B4F5D2AC.jpeg
Views:	14
Size:	75.5 KB
ID:	148004Click image for larger version

Name:	A1A4CC49-6B74-499B-9423-A2C71344D065.jpeg
Views:	16
Size:	75.5 KB
ID:	148003


                    • #55
                      Got the main pressure depth sensor installed and hooked up. It’s on the starboard side near the ballast pushrod penetration just forward of the starboard signal junction buss. The torpedo harness is also connected to the TCP module.

                      On the port side you can see the 5v positive and ground junction buss with TCP in the middle. The dual esc for the trim peristaltic pumps is just aft of the TCP module. Might dump this esc and replace it with a H-bridge unit. (Not happy with the cheap esc)

                      Click image for larger version

Name:	IMG_2535 (960x1280).jpg
Views:	0
Size:	68.9 KB
ID:	148031

                      A view from the bottom side shows the completed pump wiring and the main 3 wire power connection. One ground, a 5volt positive and a 11.2 positive.

                      Click image for larger version

Name:	IMG_2539 (960x1280).jpg
Views:	0
Size:	64.5 KB
ID:	148032

                      Last edited by Monahan Steam Models; Today, 12:00 PM. Reason: Photos did not post.
