    Originally posted by Albacore 569

    Bob makes some important points. Yes, I see the possibilities. Open to either scale.

    Was offered some detailed which I am grateful to get and will use and not share per agreement. Thank you.

    The casing has these massive undercuts to tuck in those open torpedoes. Thinking we may need three-way split. a full lower half, and then a left and right top half? David? So, your definite on 1/32?

    Either scale is good but the 1/24 might be a little roomer inside around the WTC? But Dave you have to decide scale early on in the process naturally as you are the 'primary shipyard'. and I am ust the lofting dept...lol. We can also all go over this in private emails and move this portion of the todays build to a new thread? I don't mind transparency, the resources of advice here are an embarrassment of riches already. :)


    'Norbert Bruggen did a model of this". Norbert? anything from your build you could give advice on if you wished you had done something differently perhaps in hindsight?
    Naw. Keep it on this thread... I'm sure the originator won't mind too much. And if he does... **** that guy!

    And hell yes. Open source; no secrets; share the wealth; blab away. It's the objective here (and it always should be this way) is to spread the word. Only selfish idiots of poor moral fiber work to keep 'secrets' from fellow Craftsman.
    Who is John Galt?

    Comment

    • Albacore 569
      Commander

      • Sep 2020
      • 452

      Originally posted by He Who Shall Not Be Named
      The break will be equatorial all the way around -- a simple plane. No Z-cut. We'll place the break at the waterline -- that way we can hide the seam with sea-grass and other crap. The tooling for the upper and lower hull halves can accommodate steep and even negative draft (rubber glove, GRP shell). Don't worry... not my first rodeo, as you well know, Steve. As the rubber captures all detail, don't be shy about putting in such no-no's as limber holes, plating, panel lines, oil-canning, etc. The rubber will capture all (even finger prints!)
      ok got it, and will be then in1/32

      Comment

      • Albacore 569
        Commander

        • Sep 2020
        • 452

        Originally posted by Subculture
        Not Bob, I'm Andy.

        Not heard of Norbert Bruggen?
        Sorry confusing, I thought you were nautilus drydocks Oh yes, heard of the illustrious Norbert Bruggen

        Comment

        • He Who Shall Not Be Named
          Moderator

          • Aug 2008
          • 12955

          Originally posted by Albacore 569

          ok got it, and will be then in1/32
          OK then. COMMENCE HOSTILITIES!!
          Who is John Galt?

          Comment

          • redboat219
            Admiral

            • Dec 2008
            • 3169

            hell of a Saturday wake up call. Last thing I remember reading was Dave calling me a Shameless tease, lol.

            Originally posted by He Who Shall Not Be Named

            Naw. Keep it on this thread... I'm sure the originator won't mind too much. And if he does... **** that guy!
            Could call it the Italian Job.




            Make it simple, make strong, make it work!

            Comment

            • redboat219
              Admiral

              • Dec 2008
              • 3169

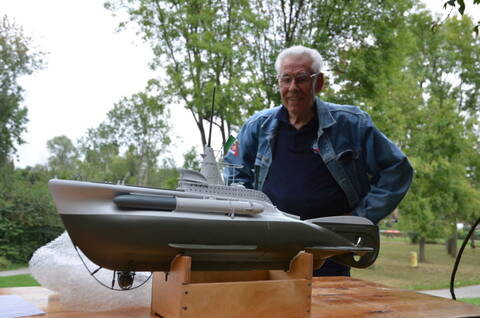

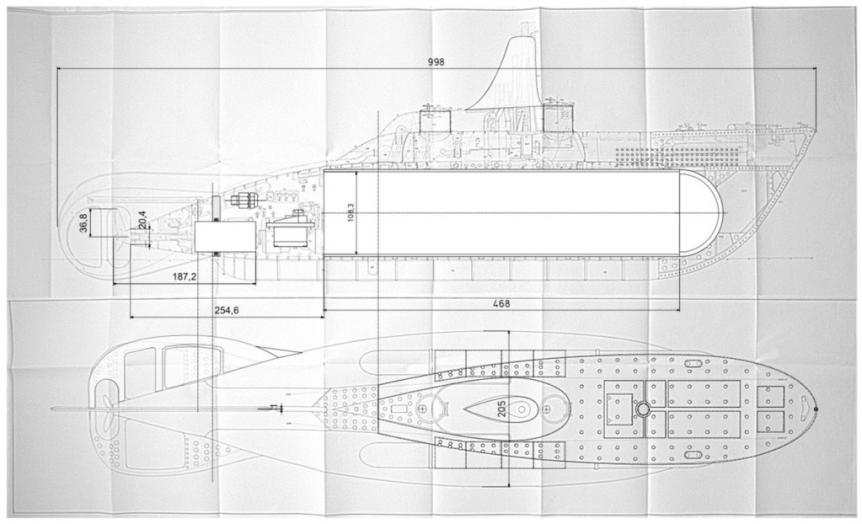

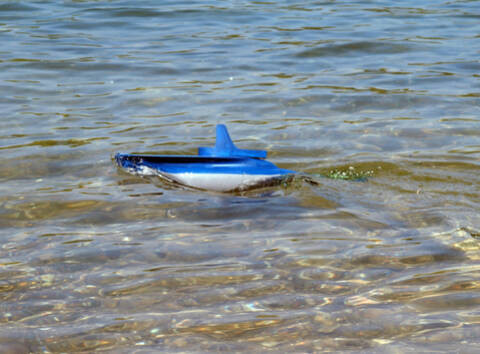

              Pictures of Norbert Bruggen's 1/15 scale CB 20 I got from AMS site.
              Click image for larger version

Name:	ntb_1510.jpg
Views:	91
Size:	49.7 KB
ID:	185613 Click image for larger version

Name:	bildsc10.jpg
Views:	90
Size:	51.5 KB
ID:	185614 Click image for larger version

Name:	n5238910.jpg
Views:	103
Size:	52.6 KB
ID:	185612
              Make it simple, make strong, make it work!

              Comment

              • He Who Shall Not Be Named
                Moderator

                • Aug 2008
                • 12955

                Originally posted by redboat219
                hell of a Saturday wake up call. Last thing I remember reading was Dave calling me a Shameless tease, lol.



                Could call it the Italian Job.



                I bet you were that kid in school who, in the cafeteria yelled, FOOD FIGHT!!, and promptly high-tailed it out the exit door to prevent any of it from getting on you.

                LOOK WHAT YOU'VE DONE!
                Who is John Galt?

                Comment

                • redboat219
                  Admiral

                  • Dec 2008
                  • 3169

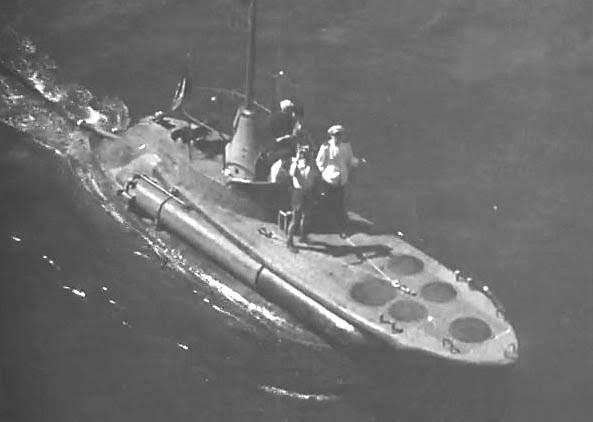

                  I know it's too early but....how about torpedoes! working torpedoes!

                  Click image for larger version

Name:	images (36).jpg
Views:	82
Size:	34.4 KB
ID:	185617 couldn't find any infos but did the Italian used these as submersible torpedo boats and fired from the surface?
                  Make it simple, make strong, make it work!

                  Comment

                  • He Who Shall Not Be Named
                    Moderator

                    • Aug 2008
                    • 12955

                    Originally posted by redboat219
                    I know it's too early but....how about torpedoes! working torpedoes!

                    Click image for larger version  Name:	images (36).jpg Views:	0 Size:	34.4 KB ID:	185617 couldn't find any infos but did the Italian used these as submersible torpedo boats and fired from the surface?
                    My, oh my... wherever would I find 1/32 practical torpedoes???











                    Who is John Galt?

                    Comment

                    • Das Boot
                      Rear Admiral

                      • Dec 2019
                      • 1328

                      Now a word from our resident mad scientist before we get back to our regular scheduled program.
                      Attached Files
                      Of the 40,000 men who served on German submarines, 30,000 never returned.”

                      Comment

                      • Albacore 569
                        Commander

                        • Sep 2020
                        • 452

                        Going to printer to enlarge plans this morning. The CB submarines used a 450 mm (17.7 inch) caliber torpedo. So, adjust accordingly. I'm sure you have the appropriate torpedo in your quiver. I will need to make measurements in the printer store where they have the self-serve enlargement printers.

                        Will see if 1/32 scale will work - thats my scale target. I want to use off the shelf existing components wherever possible. It could be 1/32 might be too small for the 2-inch WTC. We might have to opt for 1/24. Will get back to you after returning to the printers. Stand by

                        Comment

                        • He Who Shall Not Be Named
                          Moderator

                          • Aug 2008
                          • 12955

                          Originally posted by Albacore 569
                          Going to printer to enlarge plans this morning. The CB submarines used a 450 mm (17.7 inch) caliber torpedo. So, adjust accordingly. I'm sure you have the appropriate torpedo in your quiver. I will need to make measurements in the printer store where they have the self-serve enlargement printers.

                          Will see if 1/32 scale will work - thats my scale target. I want to use off the shelf existing components wherever possible. It could be 1/32 might be too small for the 2-inch WTC. We might have to opt for 1/24. Will get back to you after returning to the printers. Stand by
                          I'll defer to you on what scale we settle on, Steve. Better too big than too small. Ideal would be a scale that results in a mean annular space of at least 3/4" between WTC and hull.

                          Regardless, I'm compelled to scratch-build new torpedo masters. No biggy.
                          Who is John Galt?

                          Comment

                          • He Who Shall Not Be Named
                            Moderator

                            • Aug 2008
                            • 12955

                            Originally posted by Subculture
                            Not Bob, I'm Andy.

                            Not heard of Norbert Bruggen?
                            Hey!... Andy! shoot me your e-mail address, Ken Druze wants to talk to you.

                            David
                            dmeriman@aol.com
                            Who is John Galt?

                            Comment

                            • Albacore 569
                              Commander

                              • Sep 2020
                              • 452




                              Originally posted by He Who Shall Not Be Named

                              I'll defer to you on what scale we settle on, Steve. Better too big than too small. Ideal would be a scale that results in a mean annular space of at least 3/4" between WTC and hull.

                              Regardless, I'm compelled to scratch-build new torpedo masters. No biggy.
                              The 1/32 scale is do- able. We will go with 1/32. The waterline break affords a curved flared out contour allowing a big gap wide enough (if the hull break is at the waterline) to basically shoehorn in a 2-inch wtc. Tipping front up and in and sliding back. the drawing seems to suggest that's very possible. Like loading a cartridge in a rifle backwards. Magnet connects should make easy & sure to shaft and stern controls. No bow planes. If you think the scale should be different, time to say now.
                              a
                              It's a great size the hull lines are widened a skosh more - 1/4 inch more an 1/4-inch deeper for added volume that no one will ever notice.

                              I am starting off on the template sections tomorrow and its 'get going'.

                              How long is this 2-inch wtc Dave?


                              Click image for larger version

Name:	vadim-yurinov-cam1-wet-1.jpg
Views:	38
Size:	45.6 KB
ID:	185633

                              Click image for larger version  Name:	cb-flare-out.jpg Views:	0 Size:	67.8 KB ID:	185632
                              Last edited by Albacore 569; 01-25-2025, 07:41 PM.

                              Comment

                              • He Who Shall Not Be Named
                                Moderator

                                • Aug 2008
                                • 12955

                                Originally posted by Albacore 569




                                The 1/32 scale is do- able. We will go with 1/32. The waterline break affords a curved flared out contour allowing a big gap wide enough (if the hull break is at the waterline) to basically shoehorn in a 2-inch wtc. Tipping front up and in and sliding back. the drawing seems to suggest that's very possible. Like loading a cartridge in a rifle backwards. Magnet connects should make easy & sure to shaft and stern controls. No bow planes. If you think the scale should be different, time to say now.
                                a
                                It's a great size the hull lines are widened a skosh more - 1/4 inch more an 1/4-inch deeper for added volume that no one will ever notice.

                                I am starting off on the template sections tomorrow and its 'get going'.

                                How long is this 2-inch wtc Dave?


                                Click image for larger version

Name:	vadim-yurinov-cam1-wet-1.jpg
Views:	38
Size:	45.6 KB
ID:	185633

                                Click image for larger version Name:	cb-flare-out.jpg Views:	0 Size:	67.8 KB ID:	185632
                                Go with 1/32. As I'm doing the layup, I'll strive to make the above waterline structures paper thin to minimize displacement of those structures. If I put the motor in the wet, I'll be able to size the 2" WTC to fit.

                                Proceed, sir!
                                Who is John Galt?
