Below Waterline Uneven Bleaching Weathering Effect

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Below Waterline Uneven Bleaching Weathering Effect

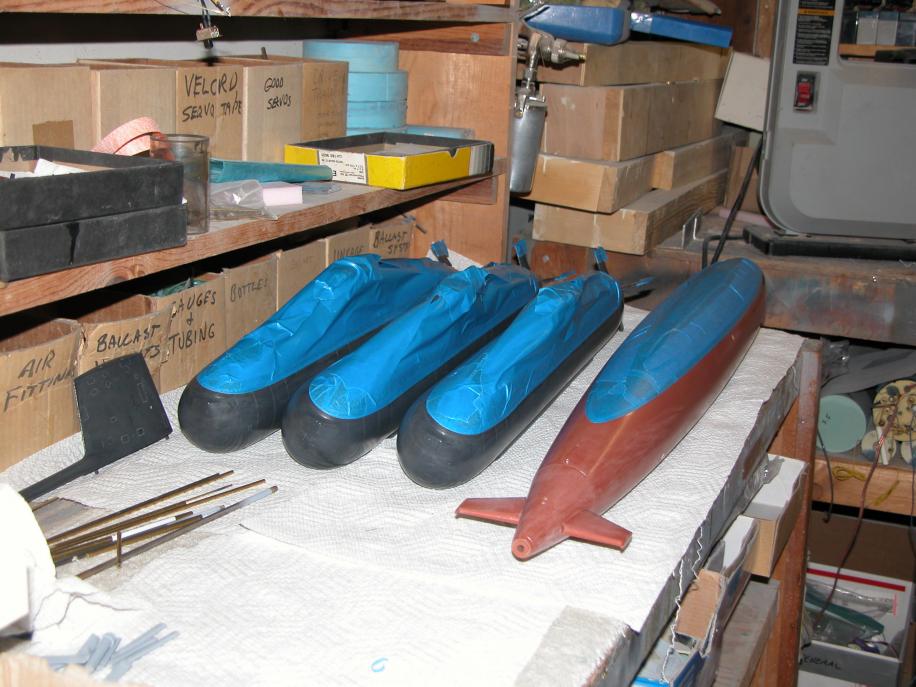

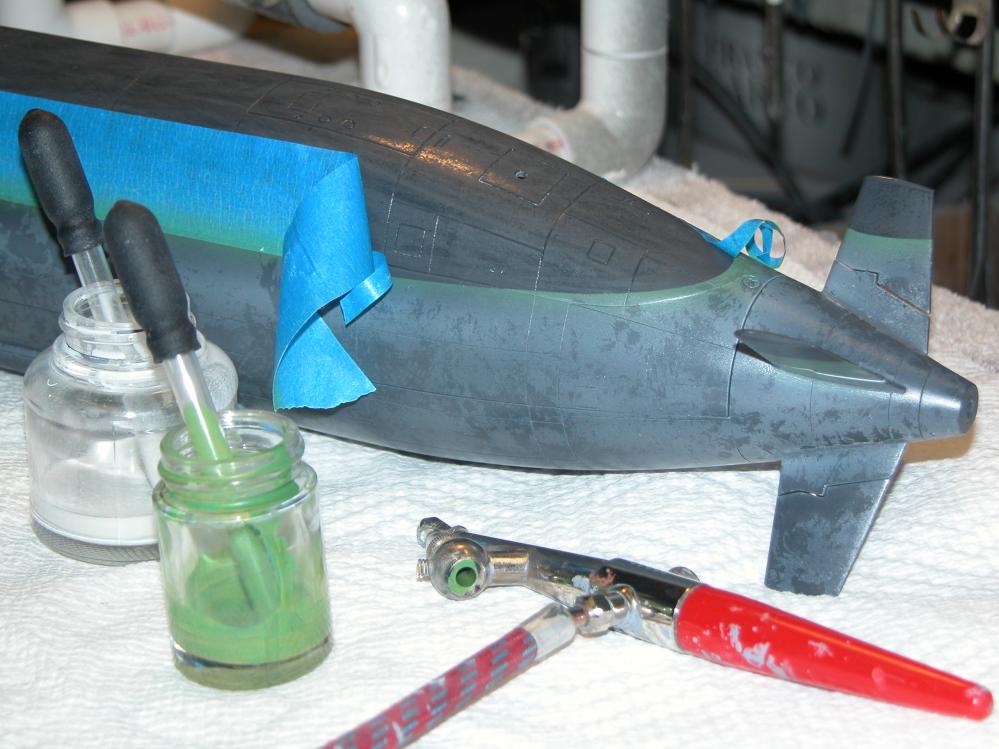

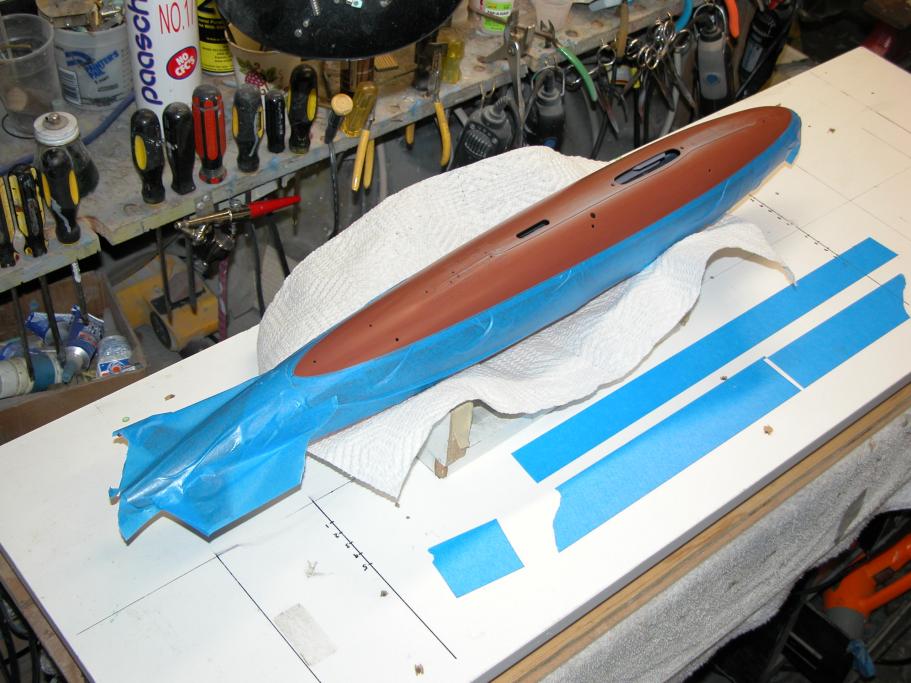

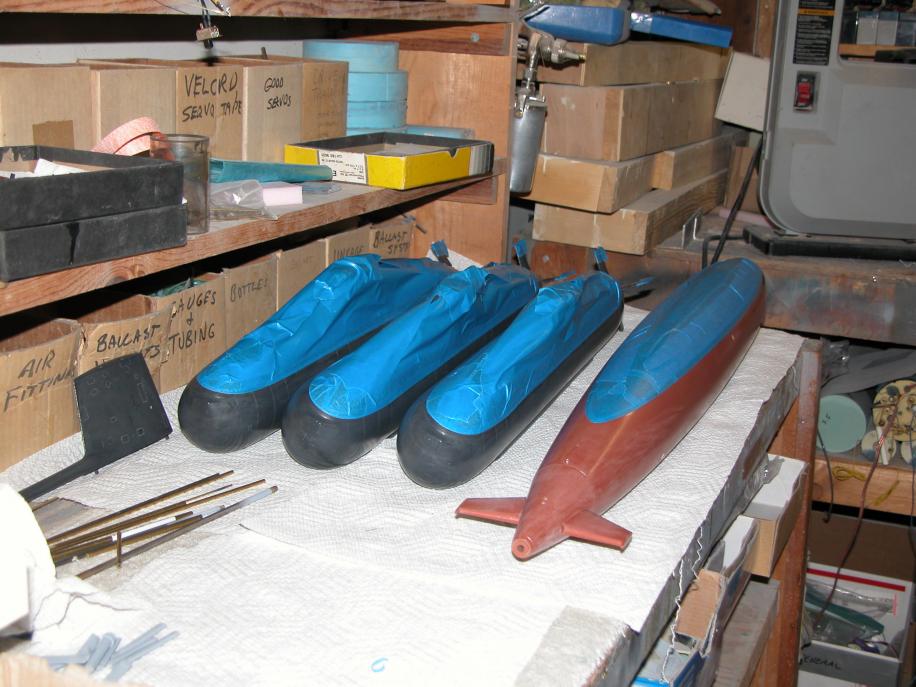

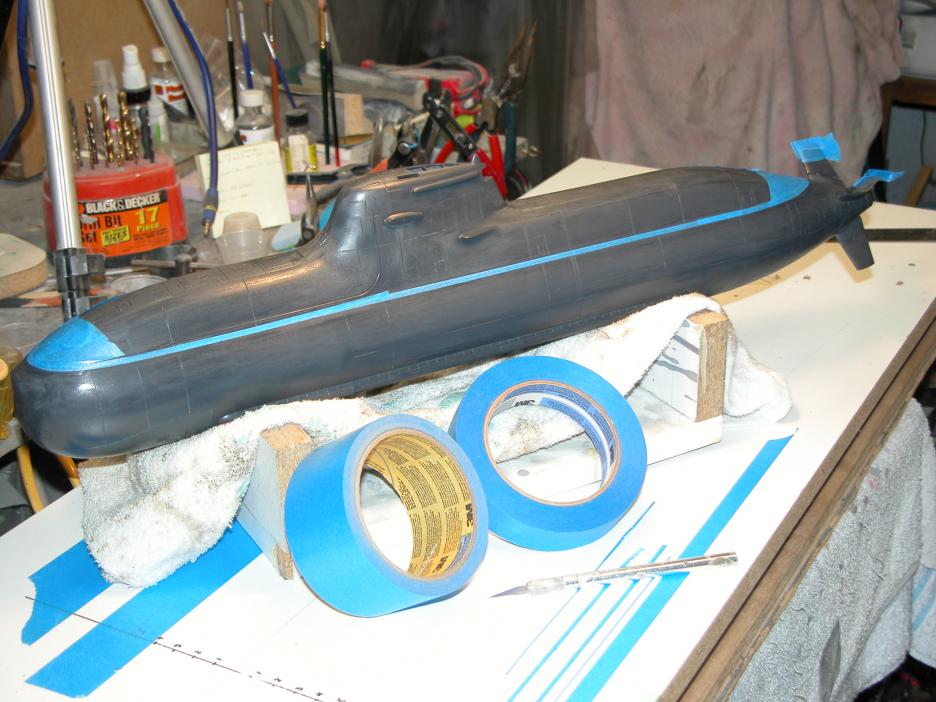

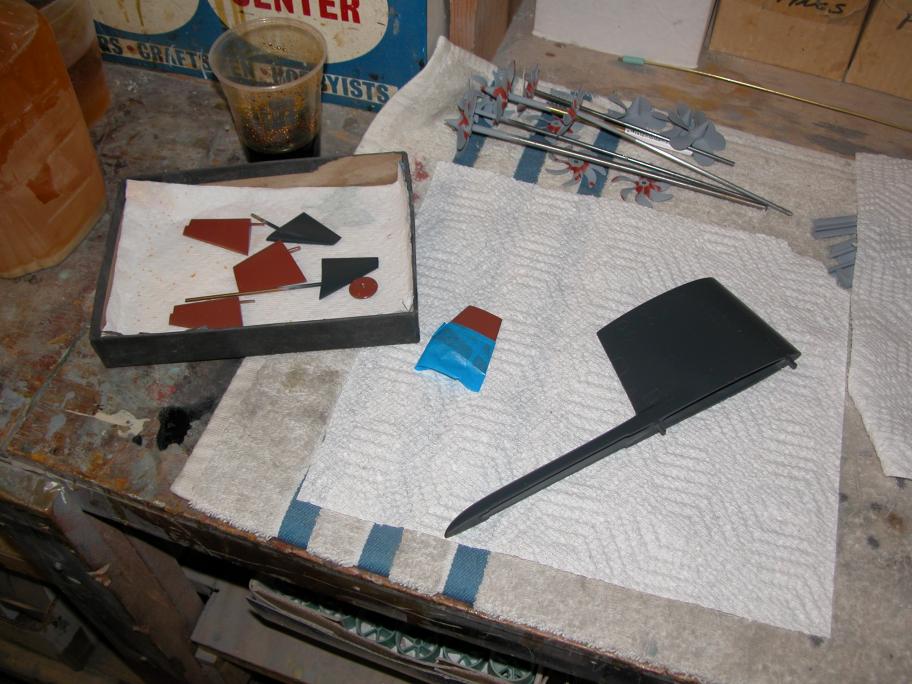

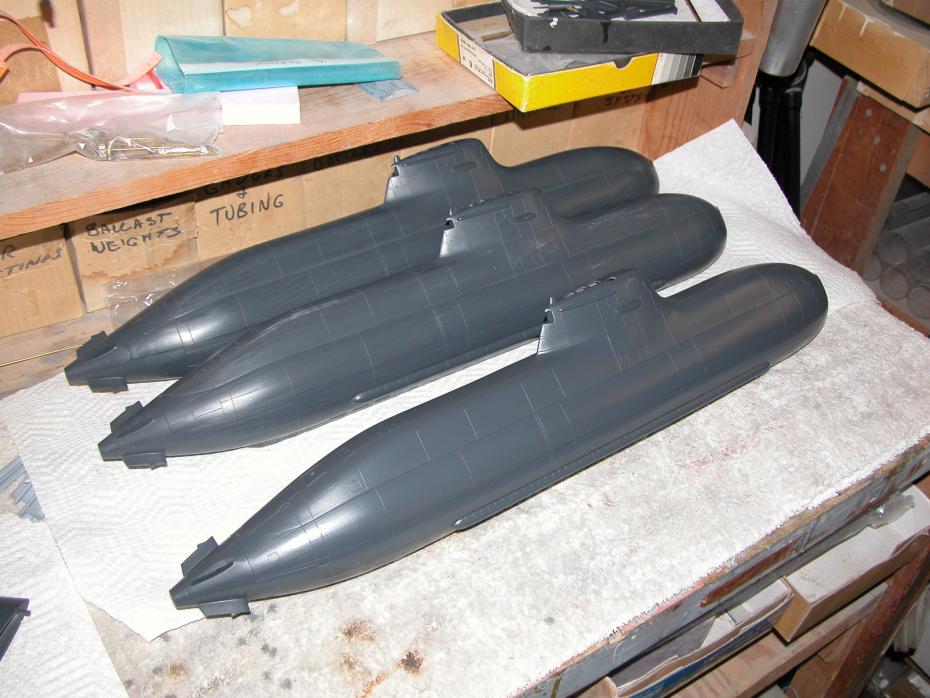

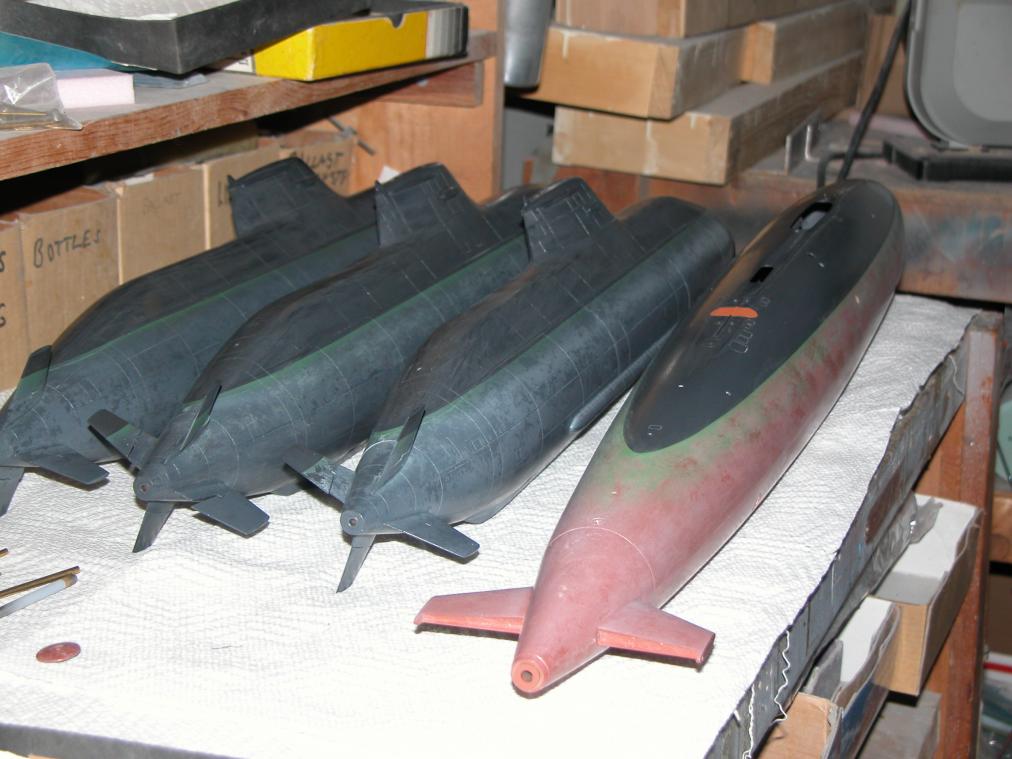

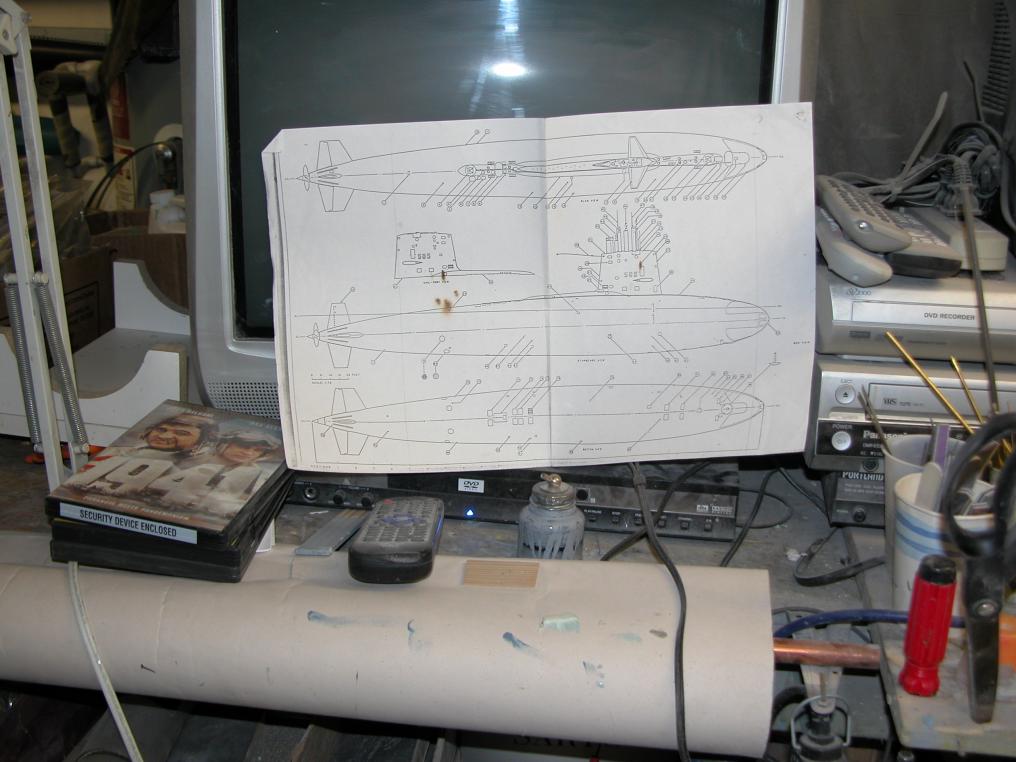

    Careful masking, stippling on some toothpaste (a water-soluble masking medium), then over-painting with a very thinned out white are the first steps to achieve that broken 'bleached' out look of the below waterline areas of the hull. Once you give the paint a few minutes to harden the work is scrubbed with a damp rag, which melts and pulls away the toothpaste leaving a very hard-edged broken pattern. A bit more of the white to soften things up a bit, followed by some green sprayed around the waterline, and you're done with the basic bleaching effect.

    Click image for larger version

Name:	DSCN0173..jpg
Views:	1
Size:	88.1 KB
ID:	99861Click image for larger version

Name:	DSCN0177..jpg
Views:	2
Size:	90.4 KB
ID:	99862Click image for larger version

Name:	DSCN0199..jpg
Views:	1
Size:	89.5 KB
ID:	99863Click image for larger version

Name:	DSCN0162..jpg
Views:	1
Size:	94.7 KB
ID:	99864Click image for larger version

Name:	DSCN0170..jpg
Views:	2
Size:	89.3 KB
ID:	99865Click image for larger version

Name:	DSCN0164..jpg
Views:	1
Size:	93.1 KB
ID:	99866Click image for larger version

Name:	DSCN0187..jpg
Views:	2
Size:	93.9 KB
ID:	99867Click image for larger version

Name:	DSCN0166..jpg
Views:	1
Size:	95.6 KB
ID:	99868Click image for larger version

Name:	DSCN0168..jpg
Views:	1
Size:	89.7 KB
ID:	99869Click image for larger version

Name:	DSCN0192..jpg
Views:	1
Size:	91.1 KB
ID:	99870Click image for larger version

Name:	DSCN0190..jpg
Views:	1
Size:	91.7 KB
ID:	99871Click image for larger version

Name:	DSCN0182..jpg
Views:	2
Size:	92.1 KB
ID:	99872Click image for larger version

Name:	DSCN0163..jpg
Views:	1
Size:	94.0 KB
ID:	99873
    ________
    Amc Concord Specifications
    Last edited by He Who Shall Not Be Named; 02-19-2011, 01:27 AM.
    Resident Luddite

  • #2
    David,

    As usual, very nice work.

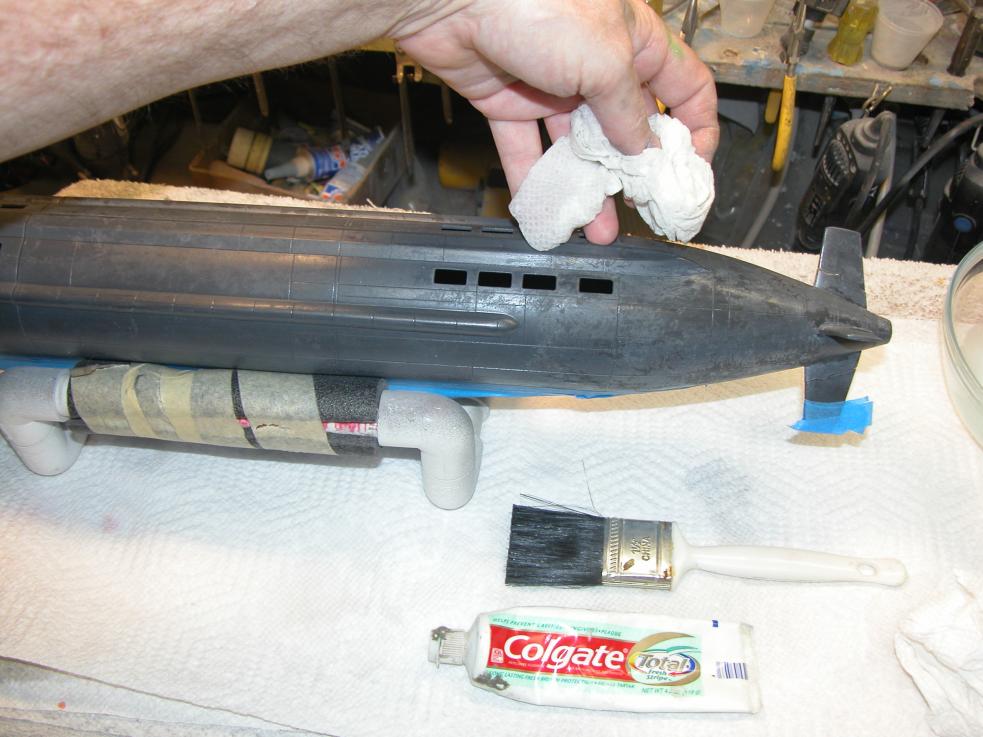

    One question though. In picture #8 you show what I believe is the standard 3M painter's masking tape. But in pictures #6 and #7 you show some blue "clingy stuff" for the masking. Is that the 3M tape too or is something else used?

    Thanks,

    Dan
    ________
    MERCEDES-BENZ M123 ENGINE HISTORY
    Last edited by He Who Shall Not Be Named; 02-19-2011, 01:27 AM.
    Born in Detroit - where the weak are killed and eaten.

    Comment


    • #3

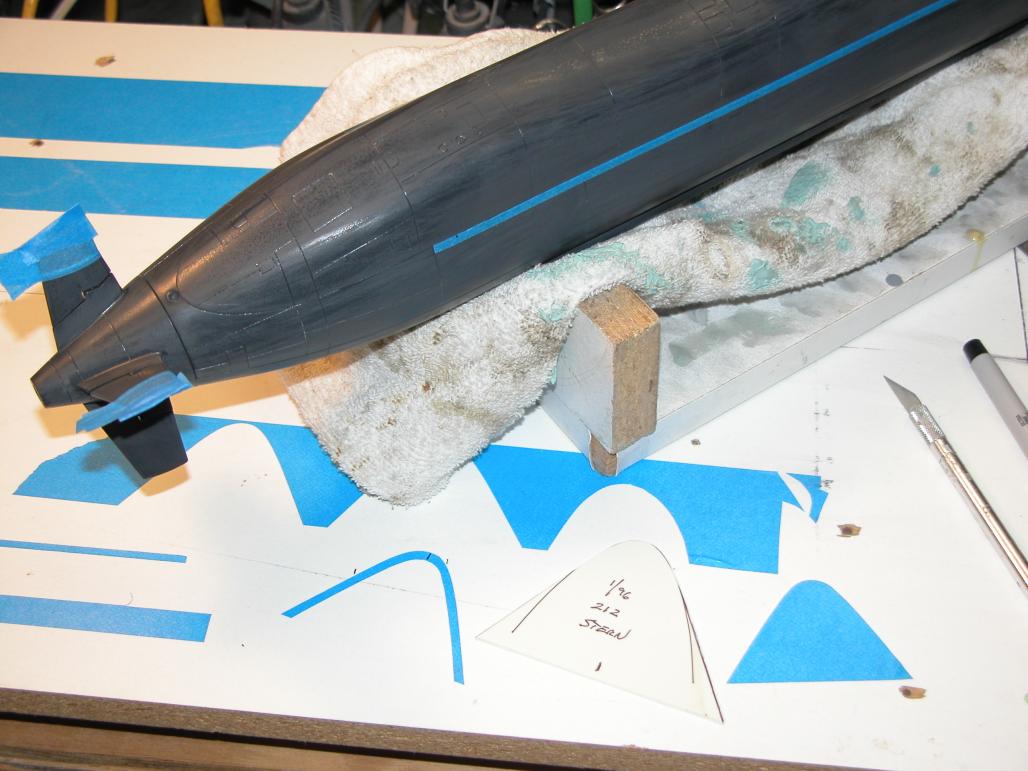

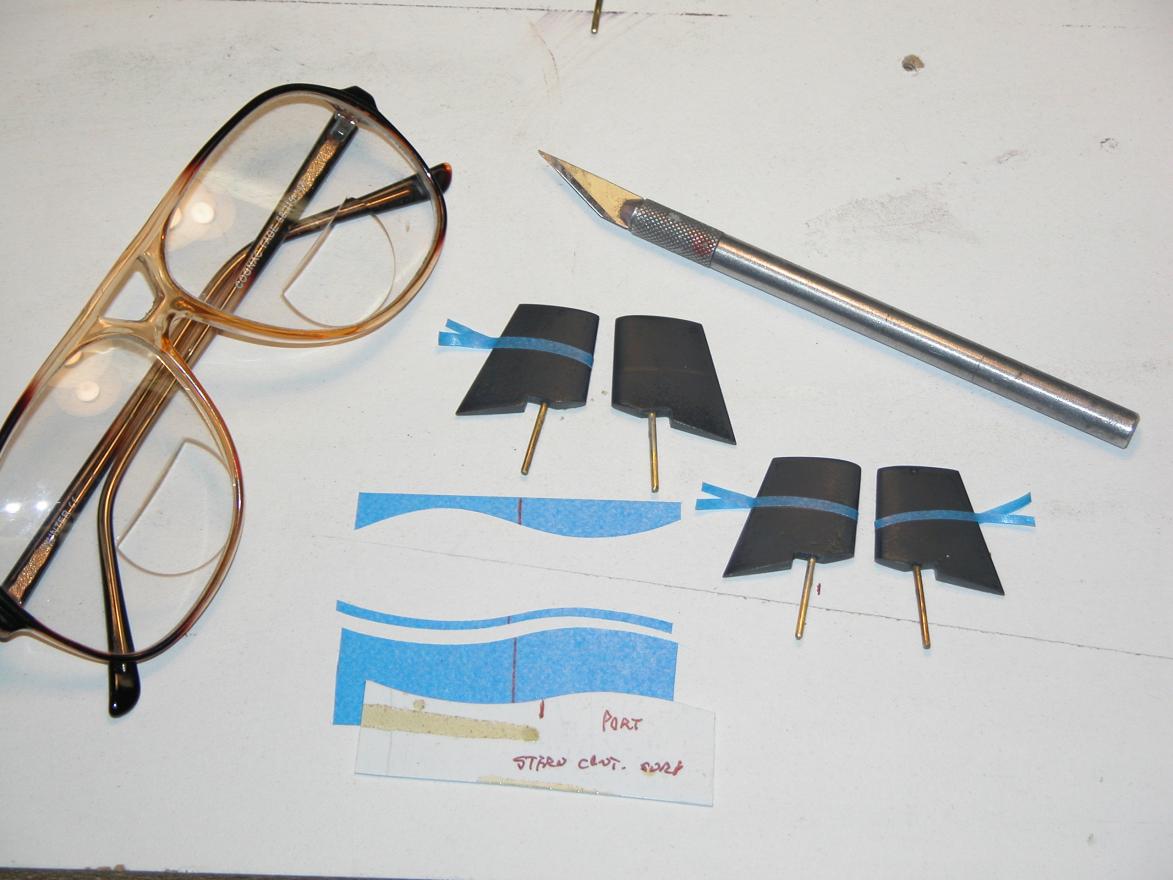

      Yeah, that's more of the same. I get this low-tack masking tape from Lowe's over here in Virginia Beach. Note that I cut out portions of the tape with the aid of special stencils cut from plastic -- each stencil for a specific tight radius masking task, like the bow, stern, and the upper rudders for the 212.

      Even though I employ automotive paints and clear-coat systems I endeavor to use as low a tack tape as possible for the job, minimizing the chances of pulling paint when I remove the masking tape.

      David,
      ________
      330
      Last edited by He Who Shall Not Be Named; 02-19-2011, 01:27 AM.
      Resident Luddite

      Comment


      • #4
        which pictures show the masking and the toothpaste, pre white paint?
        ________
        Medical marijuana card
        Last edited by He Who Shall Not Be Named; 02-19-2011, 01:27 AM.
        Next time someone points out it takes 42 muscles to frown, point out it will only take 4 muscles to b1tch slap them if they tell you how mnay muscles you need to smile:pop

        Comment


        • #5
          Click image for larger version

Name:	DSCN0187..jpg
Views:	2
Size:	93.9 KB
ID:	58368Click image for larger version

Name:	DSCN0170..jpg
Views:	2
Size:	89.3 KB
ID:	58369Click image for larger version

Name:	DSCN0177..jpg
Views:	2
Size:	90.4 KB
ID:	58370Click image for larger version

Name:	DSCN0182..jpg
Views:	2
Size:	92.1 KB
ID:	58371
          Originally posted by Albion View Post
          which pictures show the masking and the toothpaste, pre white paint?
          ________
          Chevrolet Celebrity Specifications
          Last edited by He Who Shall Not Be Named; 02-19-2011, 01:28 AM.
          Resident Luddite

          Comment


          • #6
            source of plastic stencils?

            Originally posted by Merriman View Post

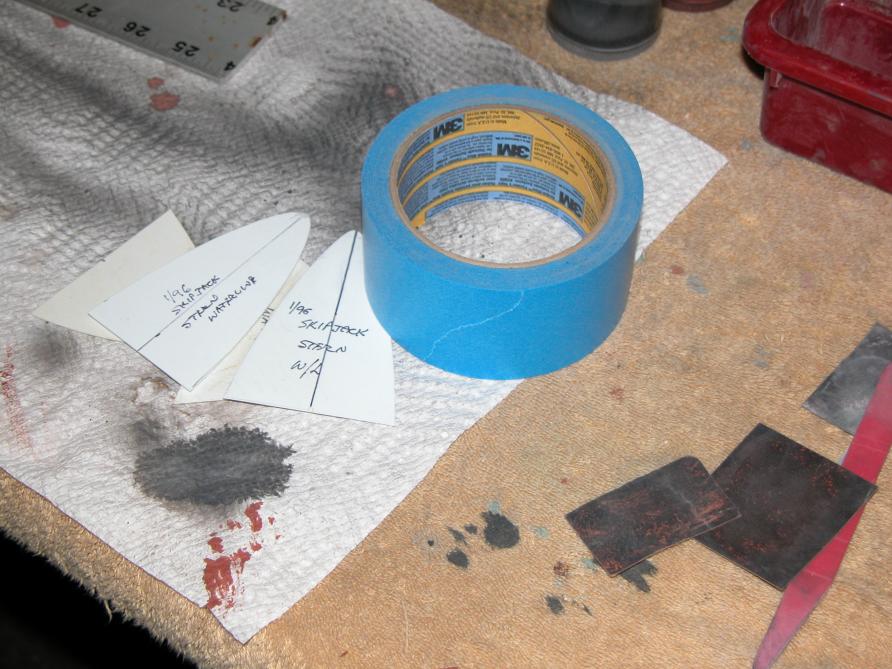

            -- each stencil for a specific tight radius masking task, like the bow, stern, and the upper rudders for the 212.
