          The Flu got me, it took some weeks to recover, but still building ahead, first the things i did untill the Flu hitted me.

          Click image for larger version

Name:	20241125_162249.jpg
Views:	49
Size:	55.9 KB
ID:	185761
          Click image for larger version

Name:	20241125_162315.jpg
Views:	46
Size:	52.8 KB
ID:	185762
          Since i want to both steer and retract the forward divingplanes i altered the front bulkhead to give me room for three servo's

          Click image for larger version

Name:	20241126_154131.jpg
Views:	46
Size:	45.7 KB
ID:	185763
          Placed the new servo's and made some magnetic connectors

          Click image for larger version

Name:	20241126_154324.jpg
Views:	45
Size:	48.4 KB
ID:	185764
          A fit to see if everything will fit inside the boat.

          Click image for larger version

Name:	20241208_143545.jpg
Views:	44
Size:	49.9 KB
ID:	185765
          Retracting the dive planes creates a problem, it must be possible to put the upper half on while making the connection for the retracting mechanism, glued the frontpart down

          Click image for larger version

Name:	20241208_144806.jpg
Views:	54
Size:	46.6 KB
ID:	185766
          After glueing the front part i took the jewelers saw and cutted it free.

          Click image for larger version

Name:	20241208_144819.jpg
Views:	45
Size:	45.2 KB
ID:	185767
          This is the result, you can lift the upperpart in the middle of the boat, at that moment the Flu hit me, next chapter was started after the Flu

          Click image for larger version

Name:	20241216_175630.jpg
Views:	53
Size:	52.7 KB
ID:	185768

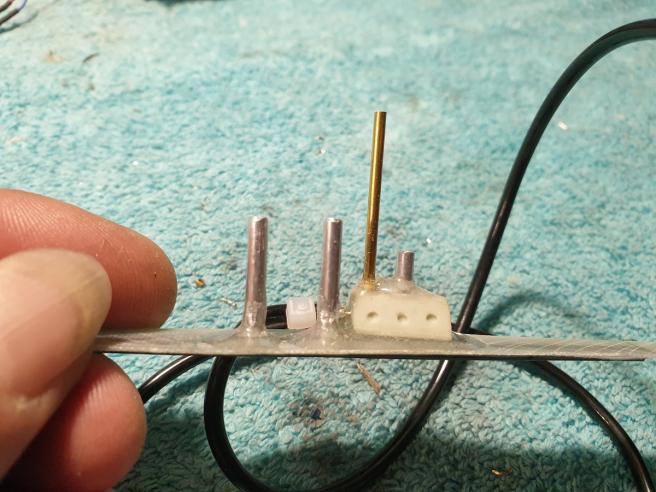

          Made this contraption for holding both scopes and the schnorkeltube.

          Click image for larger version

Name:	20241216_175700.jpg
Views:	45
Size:	50.8 KB
ID:	185769
          The stainless tube of the schnorkel will slide over the bras tube, making the connection to snort.

          Click image for larger version

Name:	20241216_175725.jpg
Views:	45
Size:	61.7 KB
ID:	185772
          The front tube has a inlet to suck up the air while bringing the boat up

          Click image for larger version

Name:	20241216_175823.jpg
Views:	44
Size:	53.4 KB
ID:	185770
          The contraption will fit underneath the conningtower.

          Click image for larger version

Name:	20241217_135249.jpg
Views:	44
Size:	52.9 KB
ID:	185771

          Complete conningtower with all the gizmo's placed, even found some scale mesh to clad the FUMO radar, for now i'm working on the magnetic connection of the upper hull part, to be continued

          Manfred.





          I went underground

          Comment

          • He Who Shall Not Be Named
            Moderator

            • Aug 2008
            • 12955

            #50
            Originally posted by MFR1964
            The Flu got me, it took some weeks to recover, but still building ahead, first the things i did untill the Flu hitted me.

            Click image for larger version

Name:	20241125_162249.jpg
Views:	49
Size:	55.9 KB
ID:	185761
            Click image for larger version

Name:	20241125_162315.jpg
Views:	46
Size:	52.8 KB
ID:	185762
            Since i want to both steer and retract the forward divingplanes i altered the front bulkhead to give me room for three servo's

            Click image for larger version

Name:	20241126_154131.jpg
Views:	46
Size:	45.7 KB
ID:	185763
            Placed the new servo's and made some magnetic connectors

            Click image for larger version

Name:	20241126_154324.jpg
Views:	45
Size:	48.4 KB
ID:	185764
            A fit to see if everything will fit inside the boat.

            Click image for larger version

Name:	20241208_143545.jpg
Views:	44
Size:	49.9 KB
ID:	185765
            Retracting the dive planes creates a problem, it must be possible to put the upper half on while making the connection for the retracting mechanism, glued the frontpart down

            Click image for larger version

Name:	20241208_144806.jpg
Views:	54
Size:	46.6 KB
ID:	185766
            After glueing the front part i took the jewelers saw and cutted it free.

            Click image for larger version

Name:	20241208_144819.jpg
Views:	45
Size:	45.2 KB
ID:	185767
            This is the result, you can lift the upperpart in the middle of the boat, at that moment the Flu hit me, next chapter was started after the Flu

            Click image for larger version

Name:	20241216_175630.jpg
Views:	53
Size:	52.7 KB
ID:	185768
            Made this contraption for holding both scopes and the schnorkeltube.

            Click image for larger version

Name:	20241216_175700.jpg
Views:	45
Size:	50.8 KB
ID:	185769
            The stainless tube of the schnorkel will slide over the bras tube, making the connection to snort.

            Click image for larger version

Name:	20241216_175725.jpg
Views:	45
Size:	61.7 KB
ID:	185772
            The front tube has a inlet to suck up the air while bringing the boat up

            Click image for larger version

Name:	20241216_175823.jpg
Views:	44
Size:	53.4 KB
ID:	185770
            The contraption will fit underneath the conningtower.

            Click image for larger version

Name:	20241217_135249.jpg
Views:	44
Size:	52.9 KB
ID:	185771

            Complete conningtower with all the gizmo's placed, even found some scale mesh to clad the FUMO radar, for now i'm working on the magnetic connection of the upper hull part, to be continued

            Manfred.




            Outstanding!
            Who is John Galt?

            Comment

            • MFR1964
              Detail Nut of the First Order

              • Sep 2010
              • 1388

              #51
              Got to feed your brain David

              Manfred
              I went underground

              Comment

              • MFR1964
                Detail Nut of the First Order

                • Sep 2010
                • 1388

                #52
                Since i have chosen for retracteble divingplanes i had to make a different way for using the magnets holding the deck.

                Click image for larger version

Name:	20241216_175911.jpg
Views:	16
Size:	51.9 KB
ID:	185924
                First i made a lip for holding the magnet at the stern, this one is horizontal orientated

                Click image for larger version

Name:	20241216_175920.jpg
Views:	16
Size:	51.5 KB
ID:	185925
                The magnet at the stern on the upperdeck, i use different size of magnets, using too big of a magnet will give trouble taking the deck off.

                Click image for larger version

Name:	20241216_175935.jpg
Views:	17
Size:	54.4 KB
ID:	185926
                The front magnet is placed vertical at the bow.

                Click image for larger version

Name:	20241216_175946.jpg
Views:	17
Size:	51.5 KB
ID:	185927
                Same story for the magnet at the bow of the upperdeck, in the background you can see the mechanism for retracting the diveplanes.

                Click image for larger version

Name:	20241216_180022.jpg
Views:	17
Size:	44.8 KB
ID:	185928
                Upperdeck closed.

                Click image for larger version

Name:	20241216_180058.jpg
Views:	17
Size:	44.1 KB
ID:	185929
                Upperdeck removed from the boat, placing the magnets vertical at the bow allows me to lift that part first, the horizontal magnet follows without force

                Click image for larger version

Name:	20241217_133151.jpg
Views:	17
Size:	49.4 KB
ID:	185930

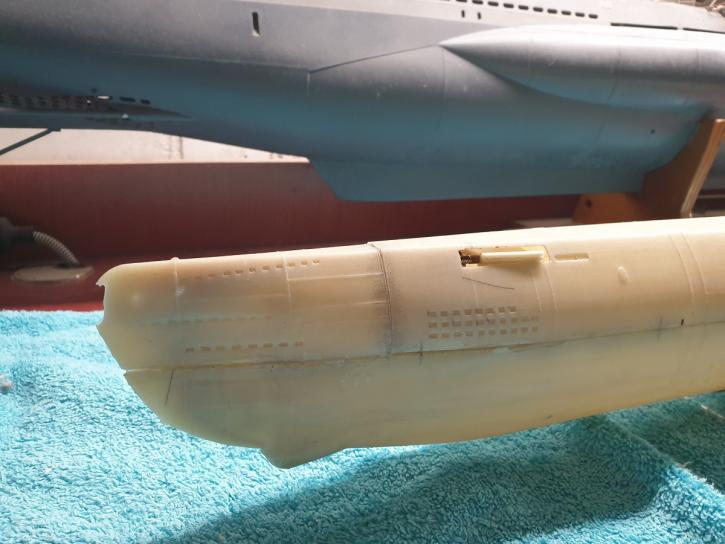

                This was a bummer, the bowpart was not propely aligned, had to cut it free and re-glued it again.

                Click image for larger version

Name:	20241223_140434.jpg
Views:	17
Size:	47.5 KB
ID:	185934
                While the bowpart was curing i made this.

                Click image for larger version

Name:	20241223_140028.jpg
Views:	17
Size:	53.1 KB
ID:	185933
                Once put together it looks likes this.

                Click image for larger version

Name:	20241223_140036.jpg
Views:	17
Size:	46.3 KB
ID:	185931
                Closed position

                Click image for larger version

Name:	20241223_140045.jpg
Views:	17
Size:	46.1 KB
ID:	185932
                Open position

                Click image for larger version

Name:	20241221_142841.jpg
Views:	17
Size:	54.3 KB
ID:	185935
                Prior to cutting open the torpedo shutters, yes, the mechanism is build to control the shutters.

                Click image for larger version

Name:	20241221_153753.jpg
Views:	17
Size:	41.0 KB
ID:	185936
                All shutters cutted open in the rough.

                Click image for larger version

Name:	20241221_153808.jpg
Views:	17
Size:	44.3 KB
ID:	185937
                First i want to get this working, later on i will make this tidy.

                Click image for larger version

Name:	20241223_140514.jpg
Views:	17
Size:	41.9 KB
ID:	185938
                This is the point where i stand now, a central hindge pin on which the shutters will pivot, first have to build some brackets to keep this contraption at it's place.

                Manfred.

                I went underground

                Comment

                • He Who Shall Not Be Named
                  Moderator

                  • Aug 2008
                  • 12955

                  #53
                  Originally posted by MFR1964
                  Since i have chosen for retracteble divingplanes i had to make a different way for using the magnets holding the deck.

                  Click image for larger version

Name:	20241216_175911.jpg
Views:	16
Size:	51.9 KB
ID:	185924
                  First i made a lip for holding the magnet at the stern, this one is horizontal orientated

                  Click image for larger version

Name:	20241216_175920.jpg
Views:	16
Size:	51.5 KB
ID:	185925
                  The magnet at the stern on the upperdeck, i use different size of magnets, using too big of a magnet will give trouble taking the deck off.

                  Click image for larger version

Name:	20241216_175935.jpg
Views:	17
Size:	54.4 KB
ID:	185926
                  The front magnet is placed vertical at the bow.

                  Click image for larger version

Name:	20241216_175946.jpg
Views:	17
Size:	51.5 KB
ID:	185927
                  Same story for the magnet at the bow of the upperdeck, in the background you can see the mechanism for retracting the diveplanes.

                  Click image for larger version

Name:	20241216_180022.jpg
Views:	17
Size:	44.8 KB
ID:	185928
                  Upperdeck closed.

                  Click image for larger version

Name:	20241216_180058.jpg
Views:	17
Size:	44.1 KB
ID:	185929
                  Upperdeck removed from the boat, placing the magnets vertical at the bow allows me to lift that part first, the horizontal magnet follows without force

                  Click image for larger version

Name:	20241217_133151.jpg
Views:	17
Size:	49.4 KB
ID:	185930
                  This was a bummer, the bowpart was not propely aligned, had to cut it free and re-glued it again.

                  Click image for larger version

Name:	20241223_140434.jpg
Views:	17
Size:	47.5 KB
ID:	185934
                  While the bowpart was curing i made this.

                  Click image for larger version

Name:	20241223_140028.jpg
Views:	17
Size:	53.1 KB
ID:	185933
                  Once put together it looks likes this.

                  Click image for larger version

Name:	20241223_140036.jpg
Views:	17
Size:	46.3 KB
ID:	185931
                  Closed position

                  Click image for larger version

Name:	20241223_140045.jpg
Views:	17
Size:	46.1 KB
ID:	185932
                  Open position

                  Click image for larger version

Name:	20241221_142841.jpg
Views:	17
Size:	54.3 KB
ID:	185935
                  Prior to cutting open the torpedo shutters, yes, the mechanism is build to control the shutters.

                  Click image for larger version

Name:	20241221_153753.jpg
Views:	17
Size:	41.0 KB
ID:	185936
                  All shutters cutted open in the rough.

                  Click image for larger version

Name:	20241221_153808.jpg
Views:	17
Size:	44.3 KB
ID:	185937
                  First i want to get this working, later on i will make this tidy.

                  Click image for larger version

Name:	20241223_140514.jpg
Views:	17
Size:	41.9 KB
ID:	185938
                  This is the point where i stand now, a central hindge pin on which the shutters will pivot, first have to build some brackets to keep this contraption at it's place.

                  Manfred.
                  H-O-L-Y C-R-A-P!!!!!

                  Manfred!!... you're out of your frig'n mind!!!!

                  Working shutter doors. Practical retracting bow planes. completely hidden rudder and stern plane linkage horns. Well... that's it. I quit. I'm taking my ball and going home.

                  Wow! The degree of my hatred for your incredible accomplishments cannot be measured. "GRrrrrr!"
                  Who is John Galt?

                  Comment

                  • MFR1964
                    Detail Nut of the First Order

                    • Sep 2010
                    • 1388

                    #54
                    That is, if al those things will work in the future, nothing better as to spoil your day
