    Revision Marder scale 1:35

    It has been some time since my last post on the Seehund, did some work on the Marder, it wasn't running anymore, so i took it apart to see what has happened,

    Click image for larger version

Name:	20240218_115925.jpg
Views:	127
Size:	46.3 KB
ID:	179167

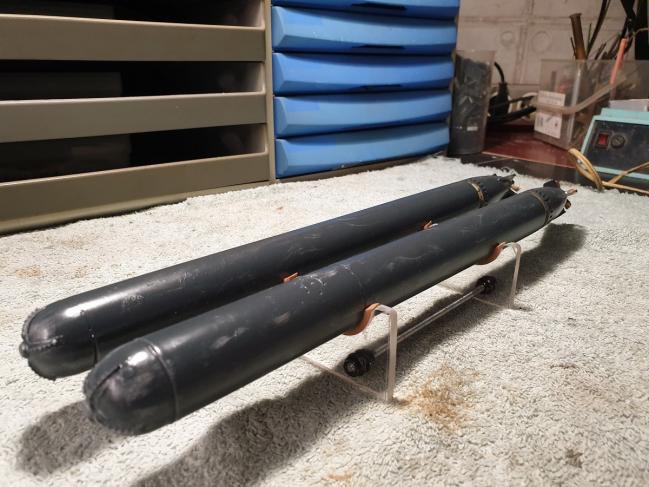

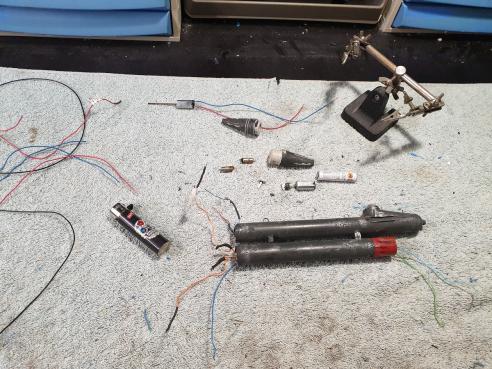

    Took her apart, batteries where shot, as the little e motors, in the background you can see the some bigger replacing motors.

    Click image for larger version

Name:	20240218_115938.jpg
Views:	223
Size:	47.6 KB
ID:	179166

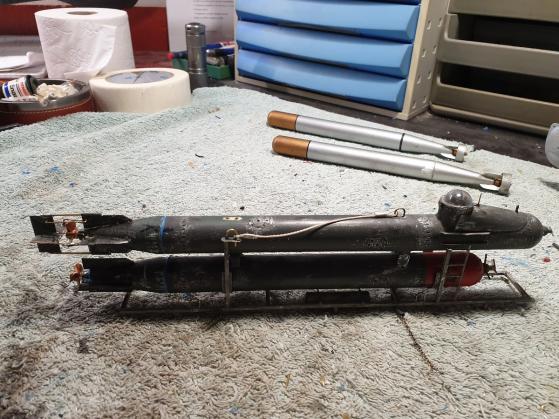

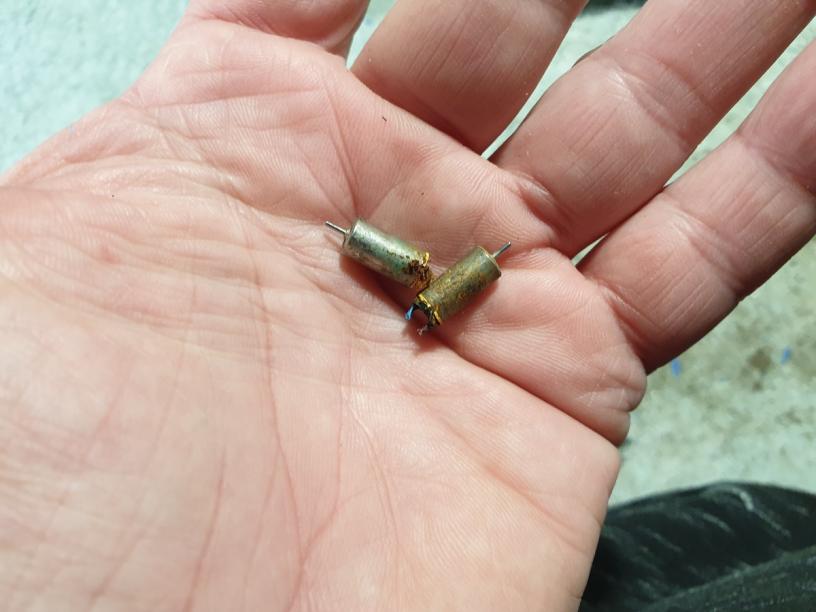

    Those motors where corroded solid, there was no seal at the shafts, have to change that.

    Click image for larger version

Name:	20240218_115918.jpg
Views:	127
Size:	52.3 KB
ID:	179176

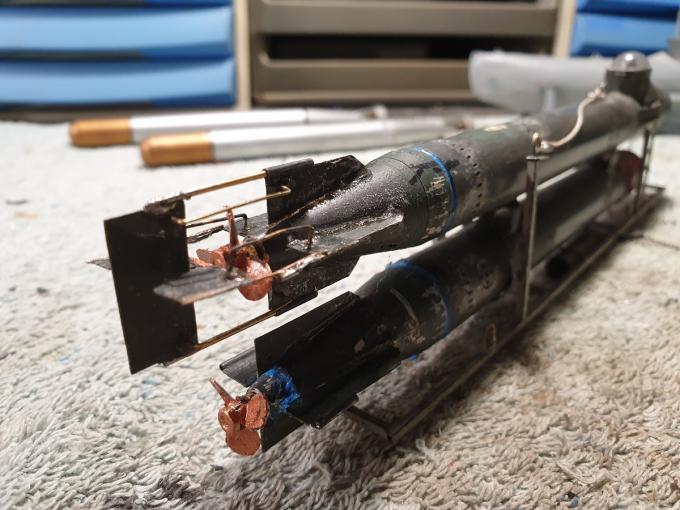

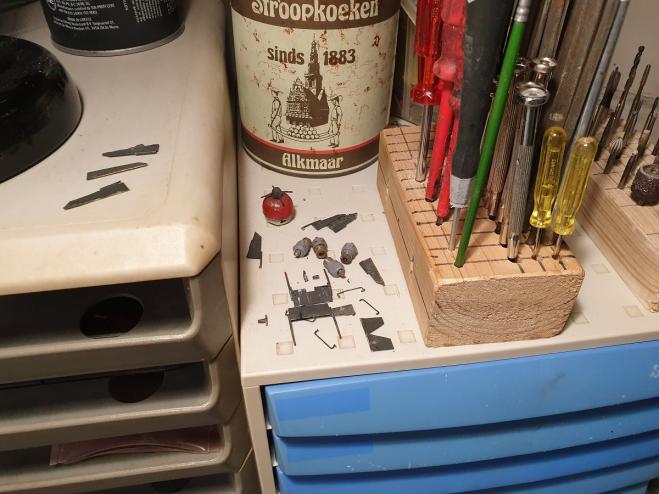

    First i took off all fins and rudder components, the back-ends had to be modified on the lathe.

    Click image for larger version

Name:	20240218_120115.jpg
Views:	131
Size:	52.9 KB
ID:	179169

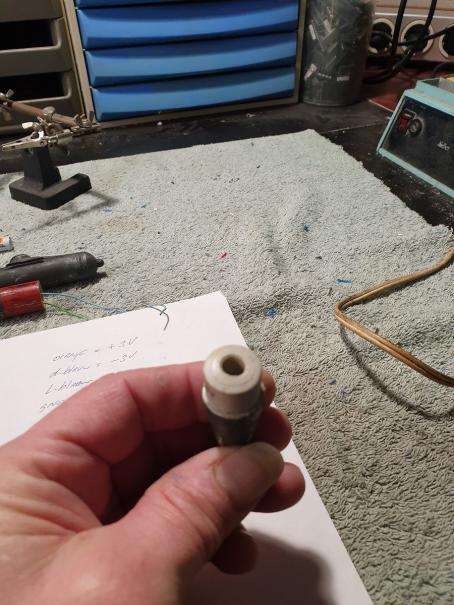

    This hole was the size of the old motor, had to work it up to a bigger size.

    Click image for larger version

Name:	20240218_120046.jpg
Views:	122
Size:	44.4 KB
ID:	179170

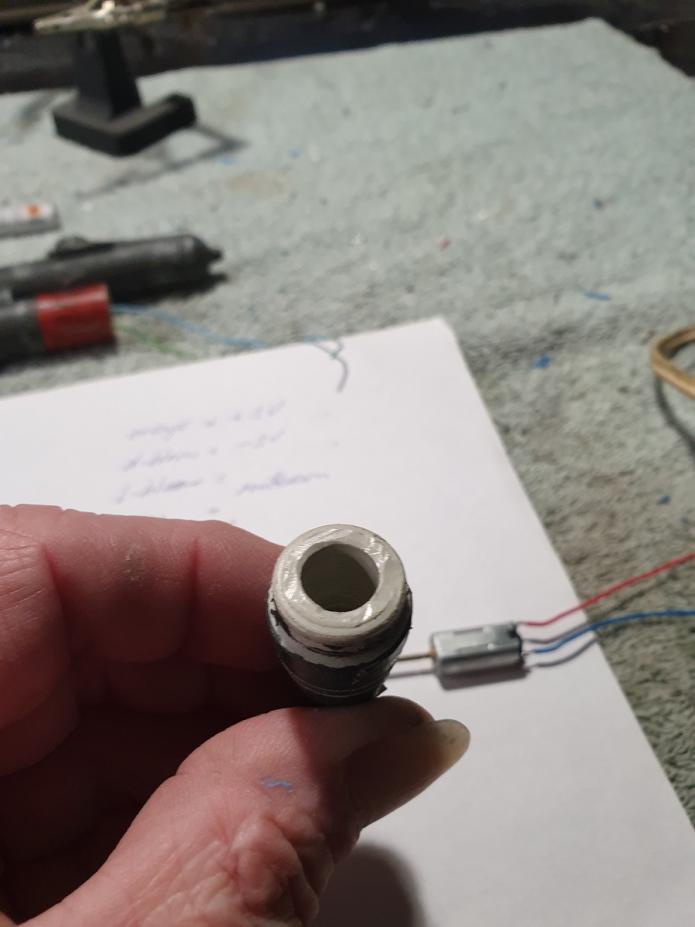

    The bigger size hole, the new motors will fitt snugly inside the hole.

    Click image for larger version

Name:	20240218_120105.jpg
Views:	124
Size:	50.3 KB
ID:	179171

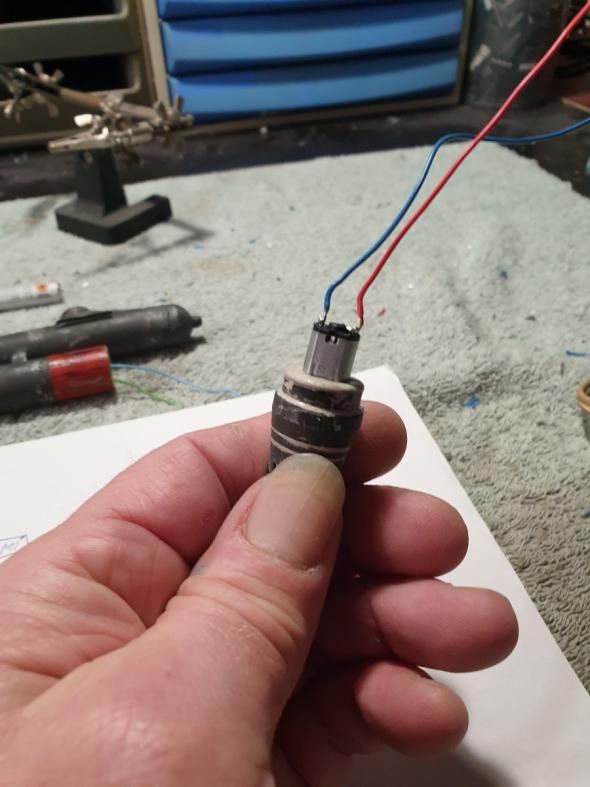

    Just had to press in the motor, it is friction fitt.

    Click image for larger version

Name:	20240218_120020.jpg
Views:	124
Size:	37.9 KB
ID:	179168

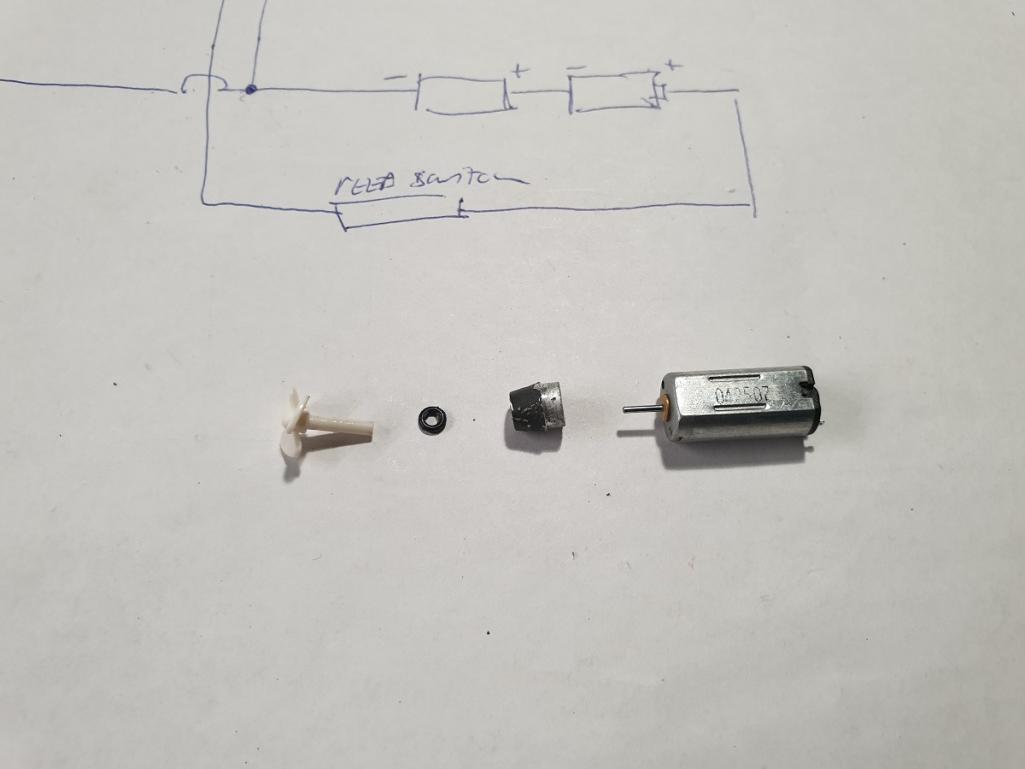

    Talking about motors, this is the new idea, use a little O-ring to seal off the shaft.

    Click image for larger version

Name:	20240220_171951.jpg
Views:	122
Size:	59.5 KB
ID:	179172

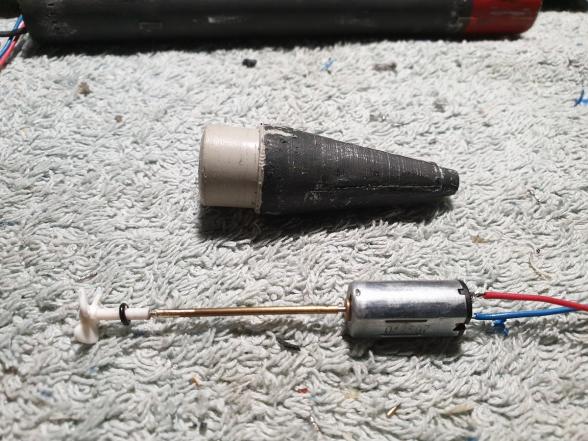

    The new layout, with a extension of the shaft, this is done this way to get me the correct measurements, i will end up with a small flexible coupling for the motor to the shaft.

    Click image for larger version

Name:	20240226_170005.jpg
Views:	121
Size:	56.9 KB
ID:	179173.

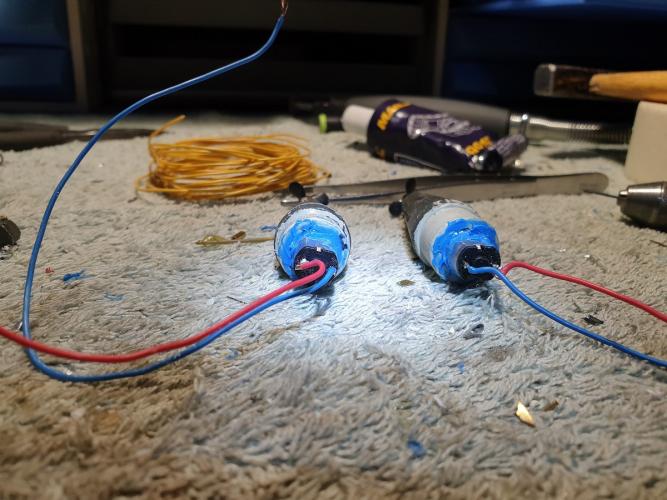

    Sealed of both motors with RTV dispite i use O-rings, i just want to be sure.


    Click image for larger version

Name:	20240226_161315.jpg
Views:	119
Size:	59.0 KB
ID:	179174

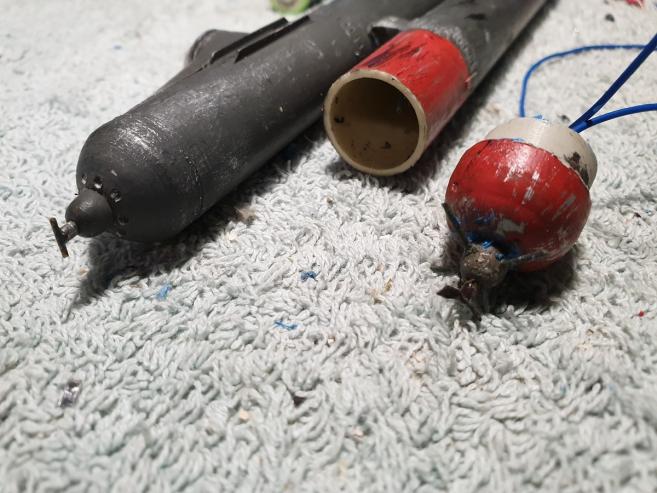

    Sealed the charging point at the front of the lower torpedo, i can charge the Marder by un-screwing the T bolt at the upper and little prop at the lower one

    Click image for larger version

Name:	20240226_170038.jpg
Views:	125
Size:	46.3 KB
ID:	179175

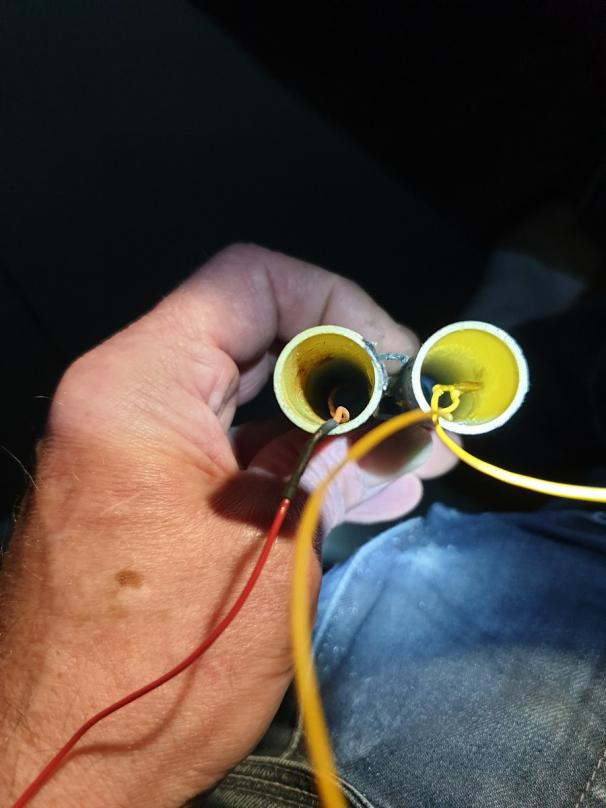

    Glued down the contact-tubes at the upper tube, the toy print inside doesn't work anymore, so she will be a free runner, i was not able to get my hands on those small micro boats, maybe in the future.

    Manfred.




    I went underground
  • MFR1964
    Detail Nut of the First Order

    • Sep 2010
    • 1512

    #2
    The Marder is ready for some testing, found a solution for transporting my microfleet, finished up the torps of the Ko Hyoteki,

    Click image for larger version

Name:	20240301_104920.jpg
Views:	96
Size:	56.6 KB
ID:	179282

    Placed back all fins and did some work on the controlling rods

    Click image for larger version

Name:	20240301_104928.jpg
Views:	80
Size:	55.2 KB
ID:	179283

    Sealed the Marder with RTV, ready to take the plunge.

    Click image for larger version

Name:	20240301_104942.jpg
Views:	73
Size:	49.6 KB
ID:	179284

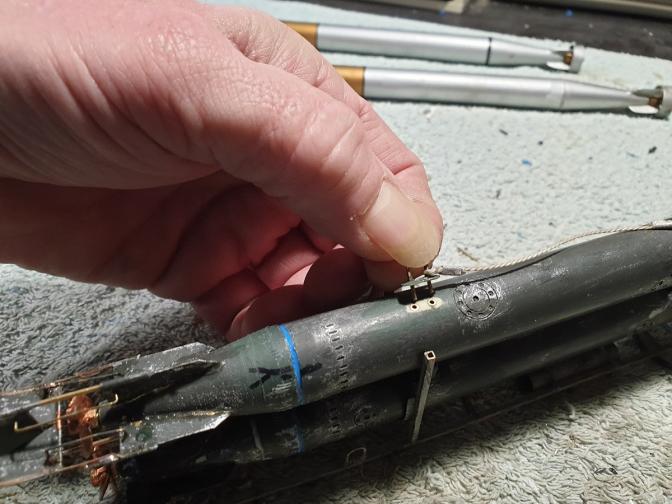

    Since it will be a free runner for now, you can start it with this plug, it's secured by i little piece of line.

    Click image for larger version

Name:	20240301_105550.jpg
Views:	76
Size:	47.3 KB
ID:	179285

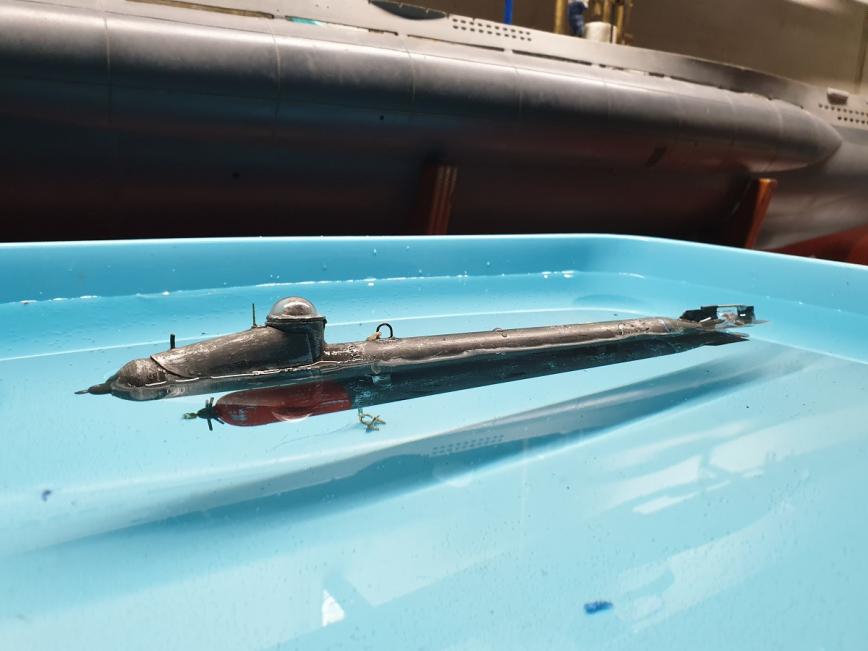

    Filled the litterbox with water and did some duration testing to see if she is watertight, last step was slapping some paint on her to finish the rebuild.

    Click image for larger version

Name:	20240313_171809.jpg
Views:	74
Size:	54.3 KB
ID:	179286

    Did some wheatering on the torpedo's of the Ko Hyoteki, not too much just enough.

    Click image for larger version

Name:	20240317_164529.jpg
Views:	74
Size:	50.2 KB
ID:	179287

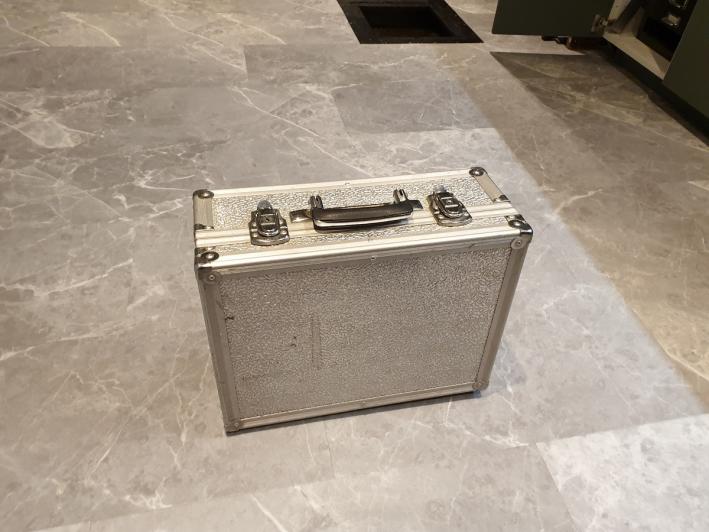

    Now the problem with transporting the micro fleet, had this case standing on the attic, size OK, more than high enough to get me some room.

    Click image for larger version

Name:	20240317_164507.jpg
Views:	74
Size:	47.9 KB
ID:	179288

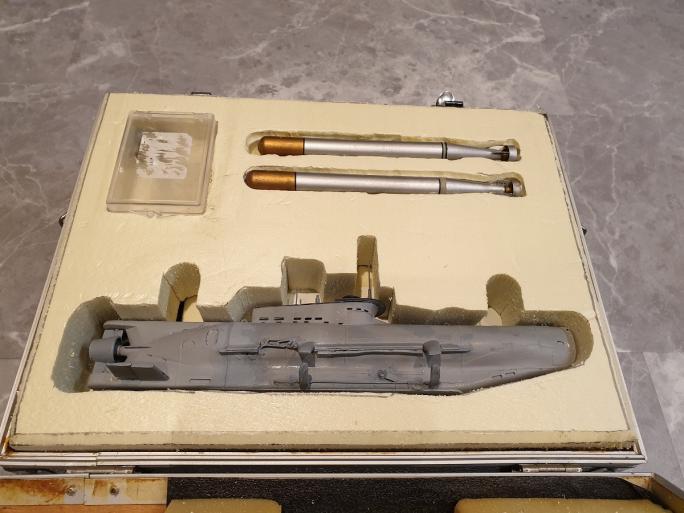

    Took some styrodure plate and cutted it to fit inside the case, outlined the Seehund and made some cuts in the styrodure, same procedure for the torps.

    Click image for larger version

Name:	20240317_164409.jpg
Views:	74
Size:	47.6 KB
ID:	179289

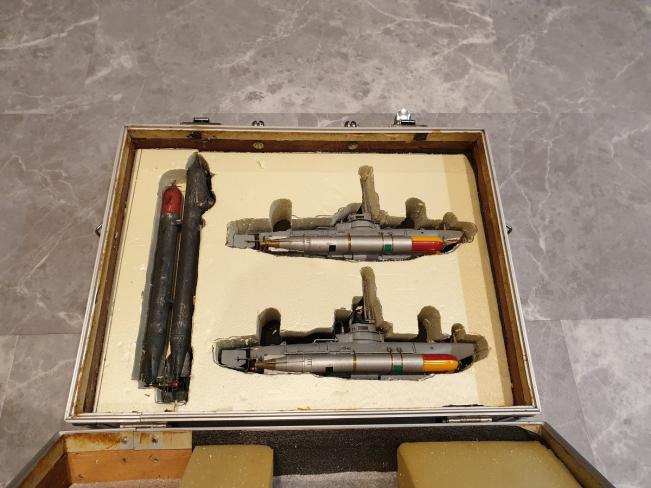

    Because the case was high enough i could do the trick again with both Bibers and the Marder, this way i have a protected case in which i can transport the fleet safely, i did put the boats upside down in the case because you have to carry it with all the boats resting on their keels.

    Click image for larger version

Name:	20240309_131159.jpg
Views:	73
Size:	47.0 KB
ID:	179290

    Next week i'm going to attack the V80, batteries are becoming bad, and i have some idea's for upgrading her, i'll be back with the progress.


    Manfred.
