  • Everyone has their dreamboat....

    Mine is coming in!

    Pushing hard to get hull components completed before April as I navigate Employers and Honey-do workloads! Don't you hate it when reality intrudes??

    Finally had time to CNC the dorsal rudder components.

    3 individual sheets of 1/16" GRP that will be laminated together. Ventral rudder and stern plane will be fabricated this way as well.

    Here is the center profile, after CNC. Used a .8mm flat end mill.​

    Click image for larger version  Name:	DI.jpg Views:	0 Size:	46.7 KB ID:	170112

    Here is one of the two outer profiles in the process of milling:

    Click image for larger version  Name:	DO.jpg Views:	0 Size:	48.2 KB ID:	170113

    The three parts side by side:

    Click image for larger version  Name:	DOIO.jpg Views:	0 Size:	46.1 KB ID:	170114

    Here they are assembled with the 1/16" alignment pins:

    Click image for larger version  Name:	DA.jpg Views:	0 Size:	45.9 KB ID:	170115


    Test fitting:


    ​​​​​Click image for larger version  Name:	TFA.jpg Views:	0 Size:	49.6 KB ID:	170116

    Click image for larger version  Name:	TFB.jpg Views:	0 Size:	48.5 KB ID:	170117

    After some 55 odd years of dreaming, she's getting there!

    Click image for larger version  Name:	TFC.jpg Views:	0 Size:	52.1 KB ID:	170118

    I really, really love this boat! A challenging build, but well worth the wait and effort!!

    Coming soon to a pond near you...
    v/r "Sub" Ed

    Silent Service "Cold War" Veteran (The good years!)
    NEVER underestimate the power of a Sailor who served aboard a submarine.
    USS ULYSSES S GRANT-USS SHARK-USS NAUTILUS-USS KEY WEST-USS BLUEBACK-USS PATRICK HENRY-K432-U25-SSRN SEAVIEW-PROTEUS-NAUTILUS

  • #2
    Has anyone actually tried a RC conversion of the Moebius Proteus? I have the kit in the backlog ...

    Comment


    • #3
      Not seen one, but the Lunar models Proteus has been converted, and it's the same size. I believe it was Rick Teskey did one a long while back.
      Time to DIVE IN! https://www.facebook.com/groups/133360626703083/

      Comment


      • #4
        Originally posted by Subculture View Post
        Not seen one, but the Lunar models Proteus has been converted, and it's the same size. I believe it was Rick Teskey did one a long while back.

        Make it simple, make strong, make it work!

        Comment


        • #5
          Originally posted by redboat219 View Post
          Yeah, that's Rick Tesky's Lunar Models version, he was testing a "bow plane only" setup. Note his stern plane is missing. I believe this is the one he currently operates.

          Speaking of Rick, it is HIS 1:15 Scale hull that I'm building, which he had operational back in SubRegatta 02/03(?) @ Johnstown Memorial.

          Click image for larger version

Name:	RT-U91035PRT.jpg
Views:	98
Size:	57.3 KB
ID:	170151


          Unfortunately, famed videographer Ray Mason didn't seem to capture that underway, or have a video interview (I couldn't find it here), but that screen grab is from the '04 Video, you can see that here, along the interview of Rick discussing his FS-1 and Stingray projects (It will start at this point.):

          SubRegatta 2004: Johnston War Memorial Park, Johnston, RI

          RAY! I know you read this!! See if you can find some of Rick's PROTEUS on your cutting room floor!!

          As far as I know, Rick has the status of being the first known individual to RC a PROTEUS!

          Now this here is another fine looking RC PROTEUS done by some fellow over in Nippon I believe: Fantastic Voyage Proteus U-91035

          I 'think" it's a Lunar Models hull.


          v/r "Sub" Ed

          Silent Service "Cold War" Veteran (The good years!)
          NEVER underestimate the power of a Sailor who served aboard a submarine.
          USS ULYSSES S GRANT-USS SHARK-USS NAUTILUS-USS KEY WEST-USS BLUEBACK-USS PATRICK HENRY-K432-U25-SSRN SEAVIEW-PROTEUS-NAUTILUS

          Comment


          • #6
            Originally posted by QuarterMaster View Post

            Now this here is another fine looking RC PROTEUS done by some fellow over in Nippon I believe: I 'think" it's a Lunar Models hull.

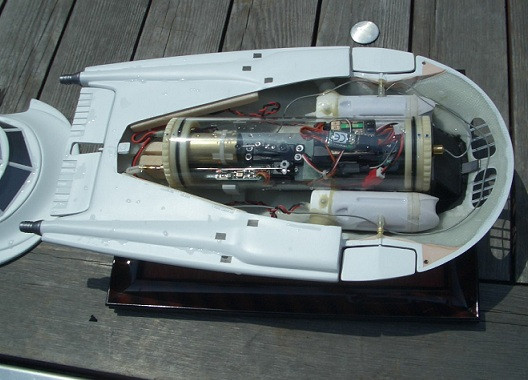

            Inside shot of the said model. Click image for larger version

Name:	pr40.jpg
Views:	81
Size:	68.0 KB
ID:	170171 60mm diameter WTC with piston tank. Propelled by twin waterjets ( 280 motor driving a modified kerosene pump )
            Make it simple, make strong, make it work!

            Comment


            • #7
              Originally posted by redboat219 View Post
              Inside shot of the said model. 60mm diameter WTC with piston tank. Propelled by twin waterjets ( 280 motor driving a modified kerosene pump )
              So that's actually yours?

              I'm sporting twin TURNIGY 2205/34 1500KV BRUSHLESS MOTOR's at 12V spinning NQD 757-6024 RC Boat Turbo JET's in a custom manufactured, water cooled conductive Aluminum housing for an estimated RPM of 19K WOT.

              Based on the same setup as those popular Pro Boat Alpha 21 PBR's.

              Michael's can now commandeer her and properly race towards the clot.


              Click image for larger version

Name:	01.jpg
Views:	37
Size:	51.9 KB
ID:	170291

              Click image for larger version

Name:	02.jpg
Views:	34
Size:	54.4 KB
ID:	170292

              Click image for larger version

Name:	02A.jpg
Views:	34
Size:	100.1 KB
ID:	170293

              Click image for larger version

Name:	03.jpg
Views:	34
Size:	54.7 KB
ID:	170294

              v/r "Sub" Ed

              Silent Service "Cold War" Veteran (The good years!)
              NEVER underestimate the power of a Sailor who served aboard a submarine.
              USS ULYSSES S GRANT-USS SHARK-USS NAUTILUS-USS KEY WEST-USS BLUEBACK-USS PATRICK HENRY-K432-U25-SSRN SEAVIEW-PROTEUS-NAUTILUS

              Comment


              • #8

                Well, work is underway on U-91035’s (PROTEUS) Stern Plane. Spent the better part of today CNC’ing, fitting, adjusting dimensions, and CNC’ing again to get the fit right. A couple of more adjustments and I should be good. For the record it takes only about 6 minutes or so to actually carve out the part.

                The funny thing is, as I dig deeper and deeper into the build, I discover how so many things are actually different between Rick Tesky’s hull, the Studio Drawings, available data on the Internet, as well as the Moebius 1:32 scale model I’m electing to use as the “hero” model.

                You still need to use some “creative” license to make it all work. But as the builder, I can beat any rivet counter over the head with his measuring tape, because everything, and nothing, is canon.

                It’s still turning out to be one of the toughest builds of my RC Sub career.

                Sooooo satisfying!

                Click image for larger version

Name:	PXL_20230319_223842304.jpg
Views:	38
Size:	70.5 KB
ID:	170296

                Click image for larger version

Name:	PXL_20230319_231307422.PORTRAIT.jpg
Views:	35
Size:	78.0 KB
ID:	170297
                v/r "Sub" Ed

                Silent Service "Cold War" Veteran (The good years!)
                NEVER underestimate the power of a Sailor who served aboard a submarine.
                USS ULYSSES S GRANT-USS SHARK-USS NAUTILUS-USS KEY WEST-USS BLUEBACK-USS PATRICK HENRY-K432-U25-SSRN SEAVIEW-PROTEUS-NAUTILUS

                Comment


                • #9
                  Why do all models I've seen of the Proteus have that cut out in the rear dive plane possibly for a rudder but there isn't actually one (rudder)?
                  Make it simple, make strong, make it work!

                  Comment


                  • #10
                    Step by step.....inch by inch....

                    Using a common Line Laser Level Tool to verify everything will be true to the imaginary central axis.

                    Click image for larger version

Name:	PXL_20230324_214659038.jpg
Views:	0
Size:	78.4 KB
ID:	170366

                    Also decided to have a professional 3D print of the Upper Halo ring fabricated out of dark grey, glass filled nylon for light blocking and ease of dome assembly and replacement.
                    Thanks to Mr. Nautilus Drydocks himself!

                    Click image for larger version

Name:	Screenshot 2023-03-24 173803.jpg
Views:	0
Size:	62.7 KB
ID:	170367

                    When the boat is running, I can modify the laser to remove blood clots per Capt. Gaito.
