  • JHapprich
    Captain
    • Oct 2017
    • 737

    #76

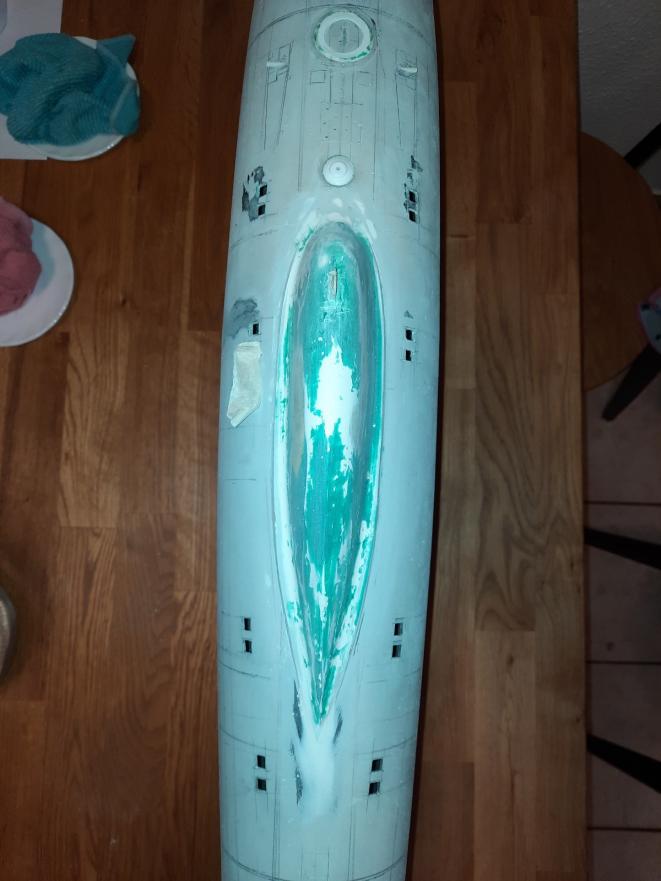

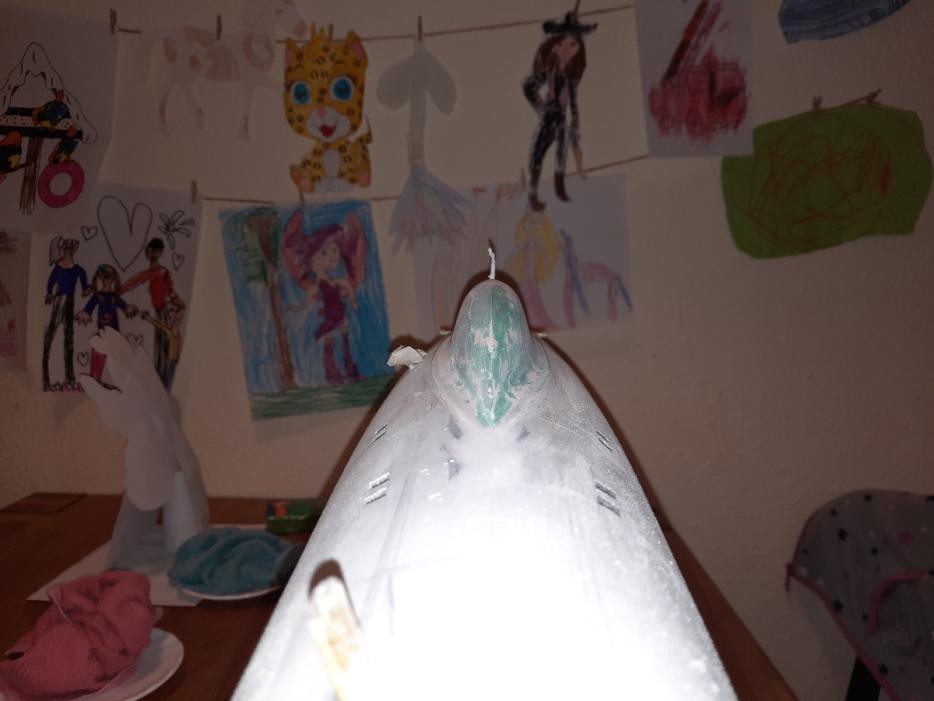

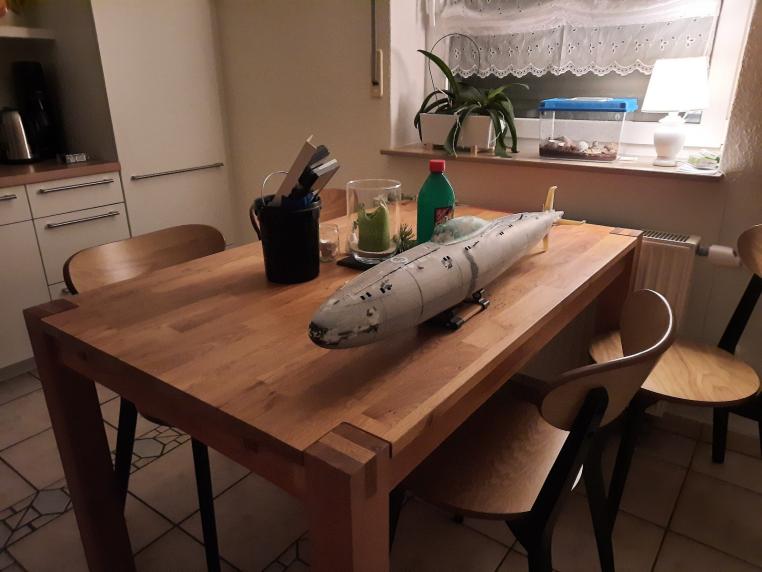

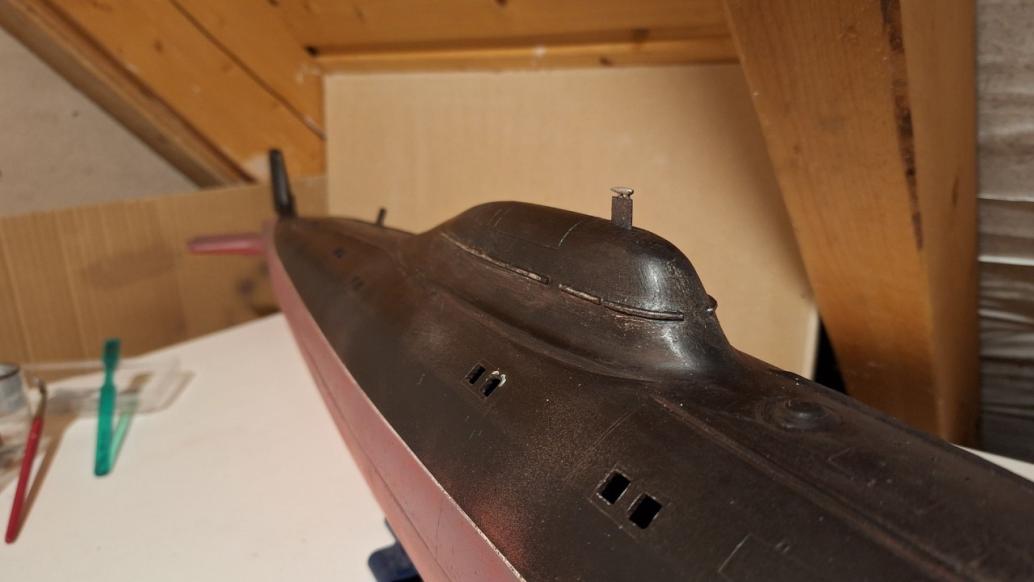

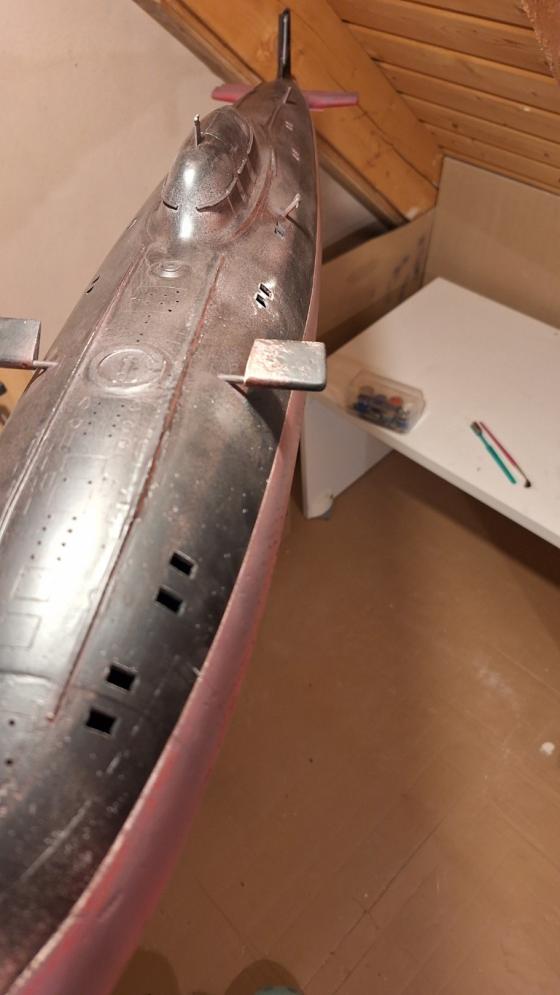

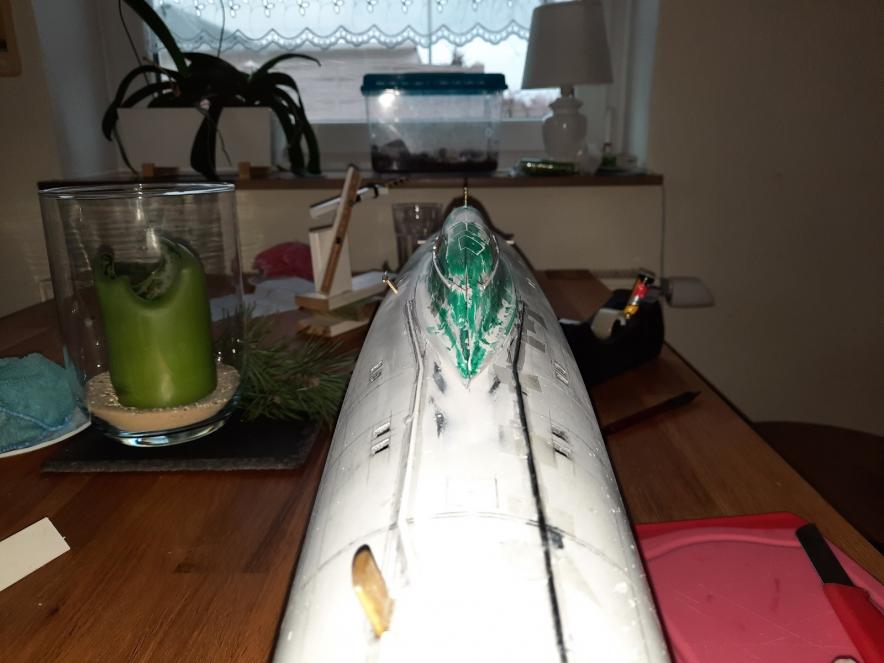

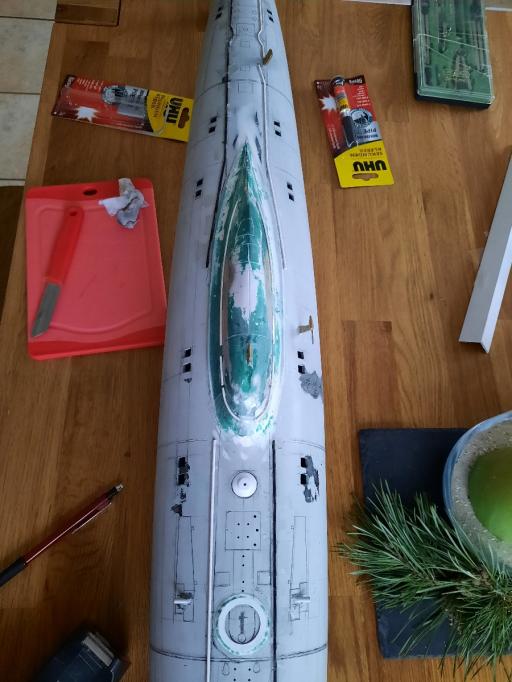

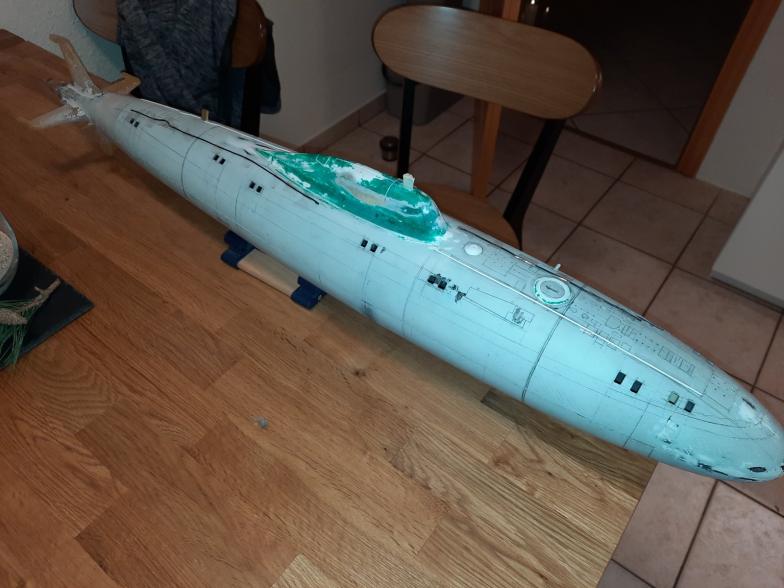

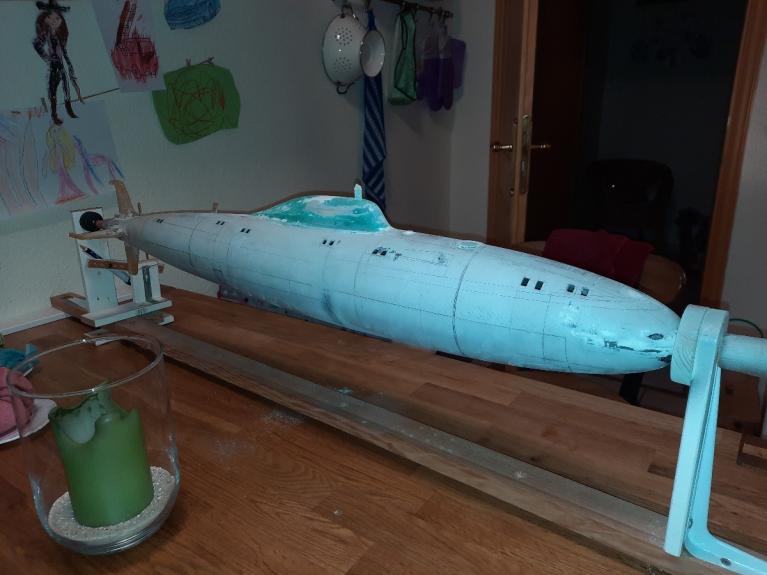

    Final filling and sanding of the conning:

    Click image for larger version

Name:	20230125_234548_copy_1200x900.jpg
Views:	239
Size:	45.1 KB
ID:	168982Click image for larger version

Name:	20230125_234540_copy_1200x900.jpg
Views:	206
Size:	42.5 KB
ID:	168983Click image for larger version

Name:	20230125_234654_copy_1200x900.jpg
Views:	217
Size:	44.5 KB
ID:	168985Click image for larger version

Name:	20230125_234755_copy_1200x1600.jpg
Views:	210
Size:	52.2 KB
ID:	168984

    Imperfections on the limber holes and the gap between docking ring and hull were filled ad brought to shape too.

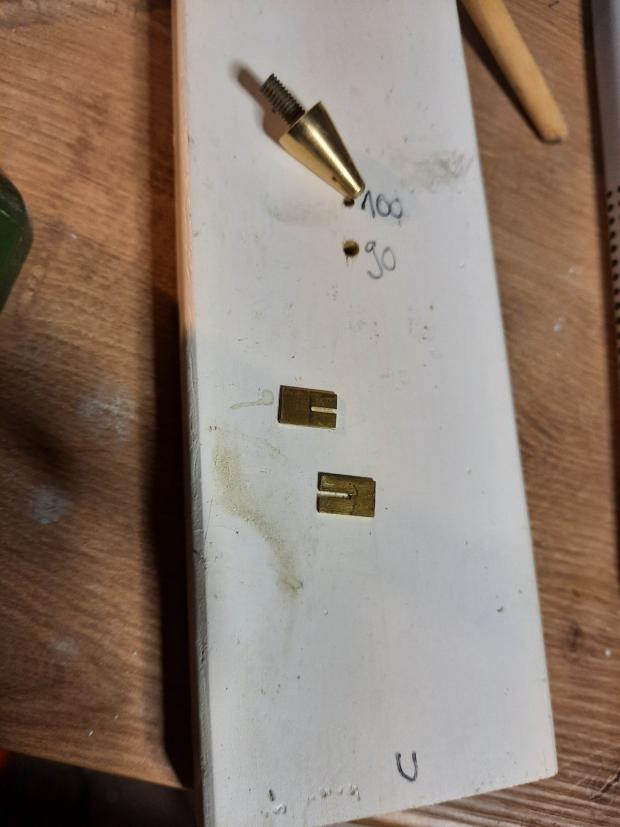

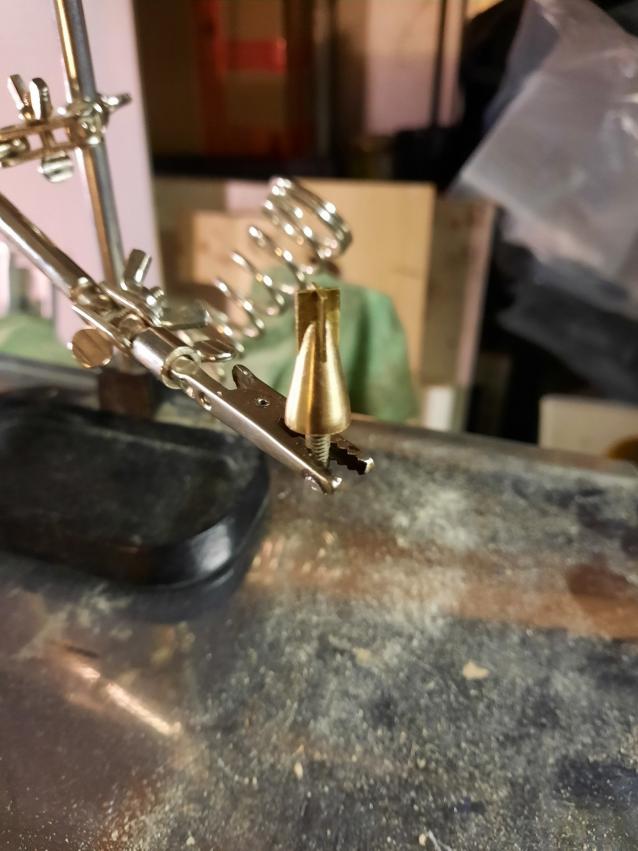

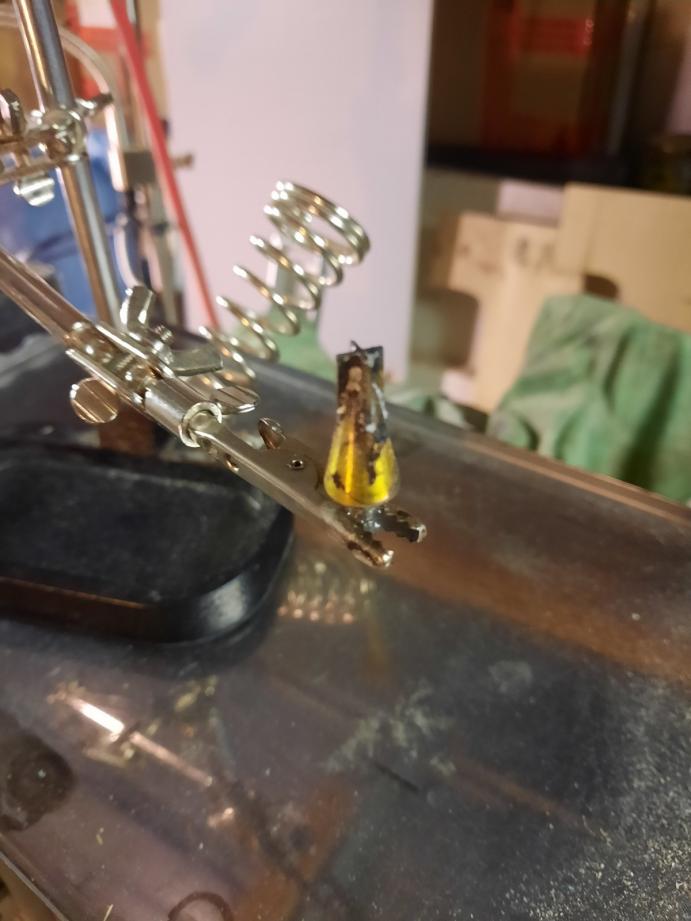

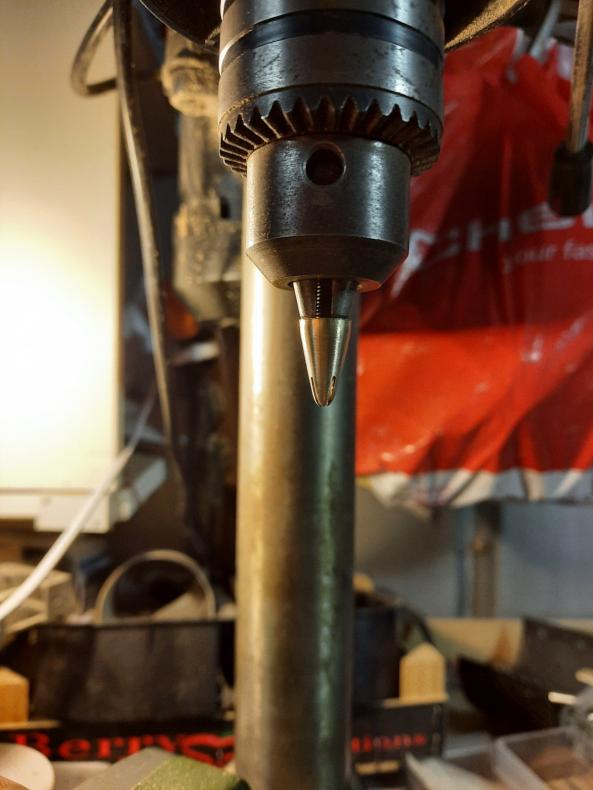

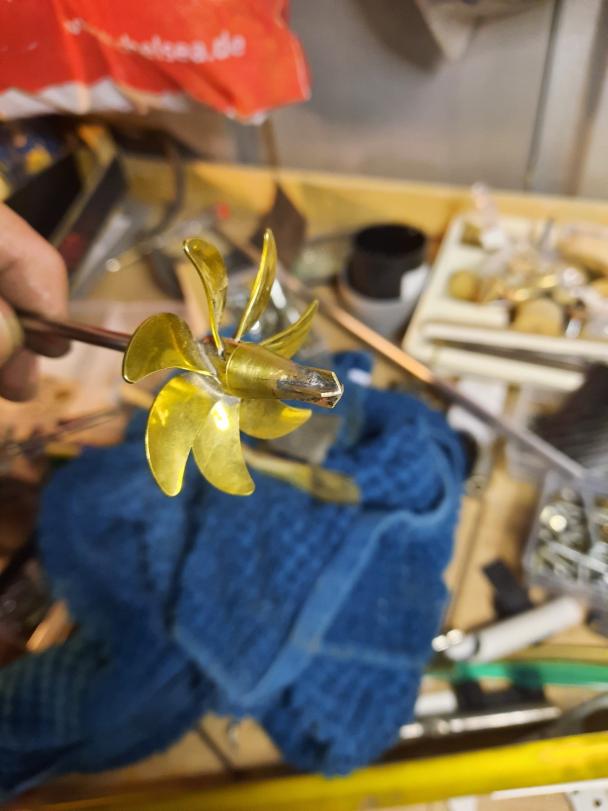

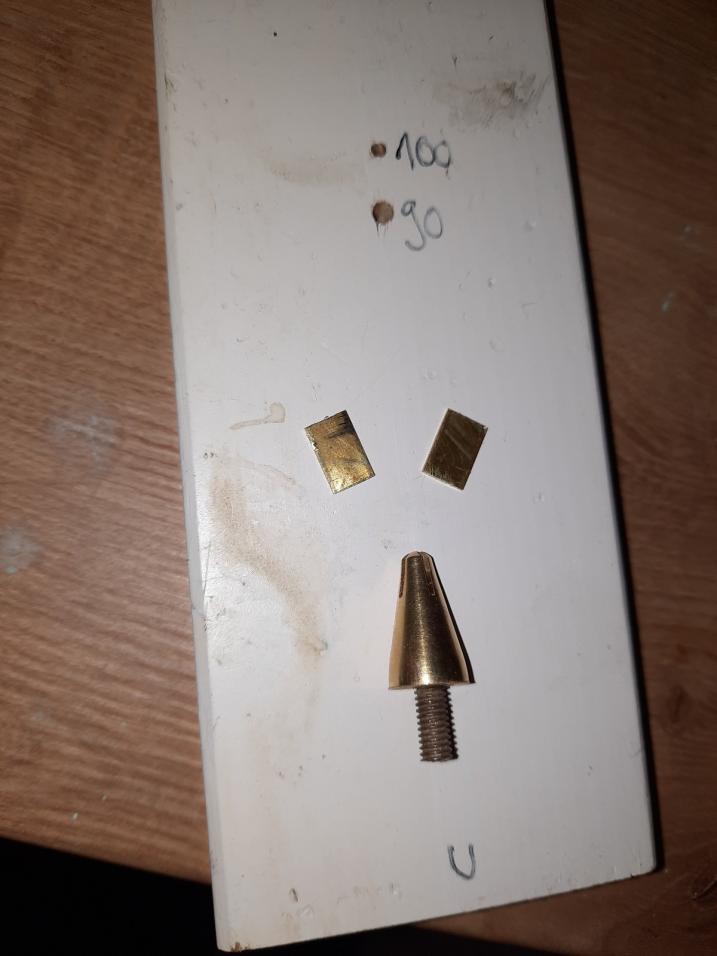

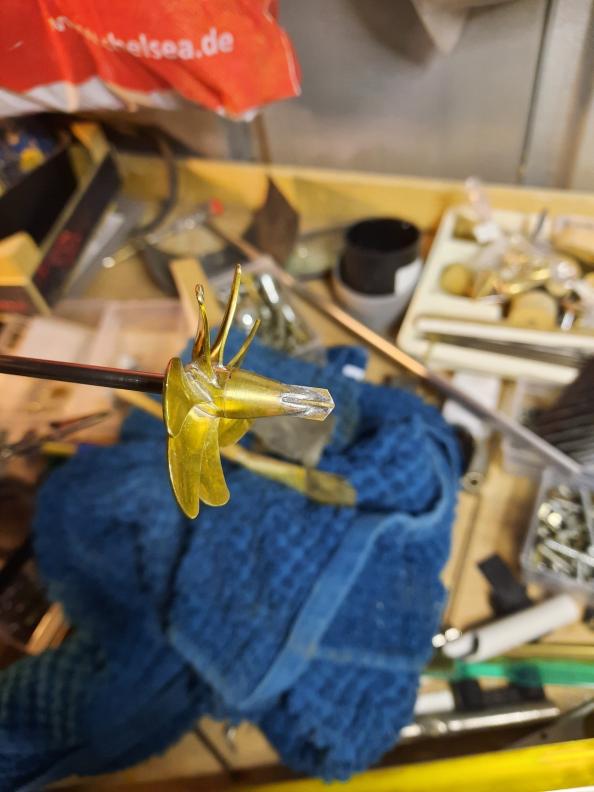

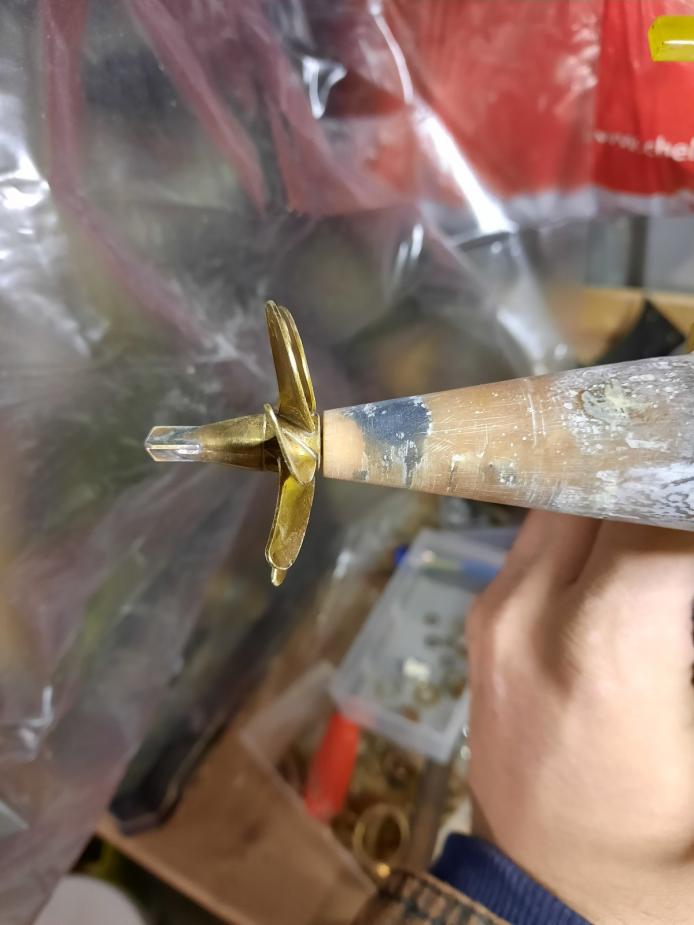

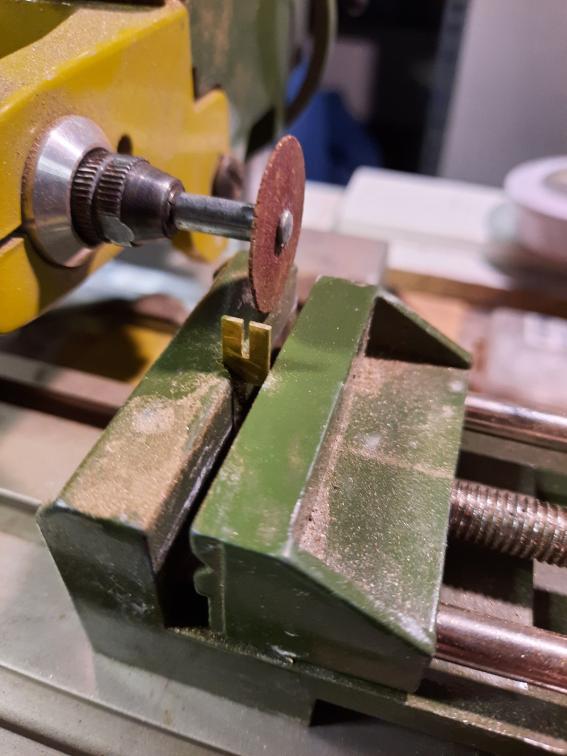

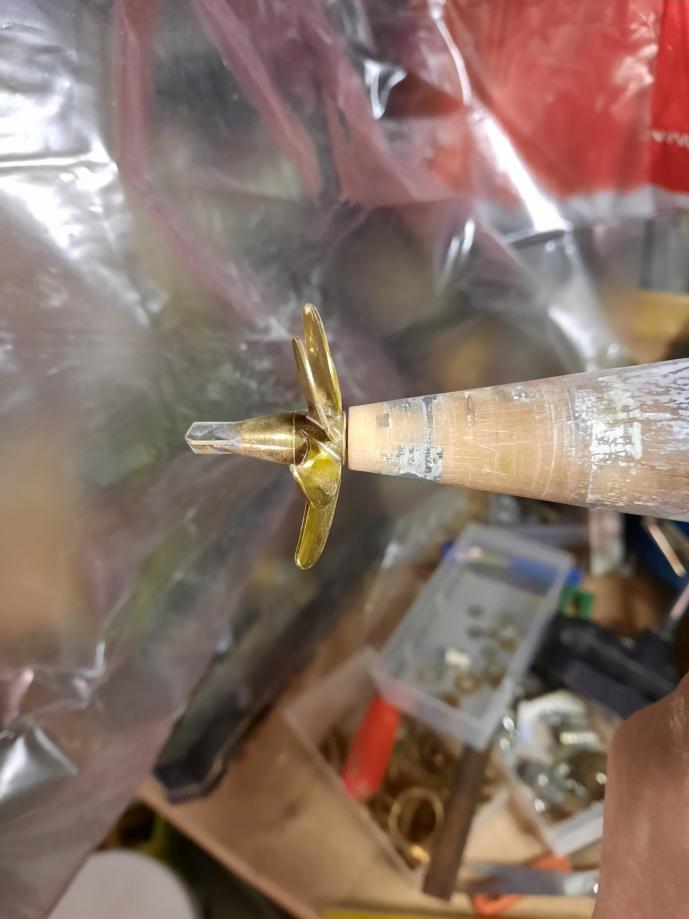

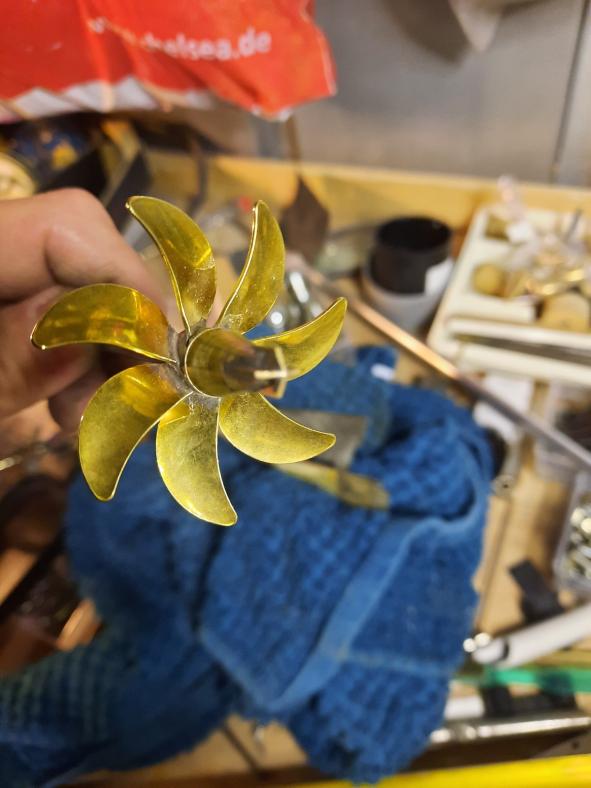

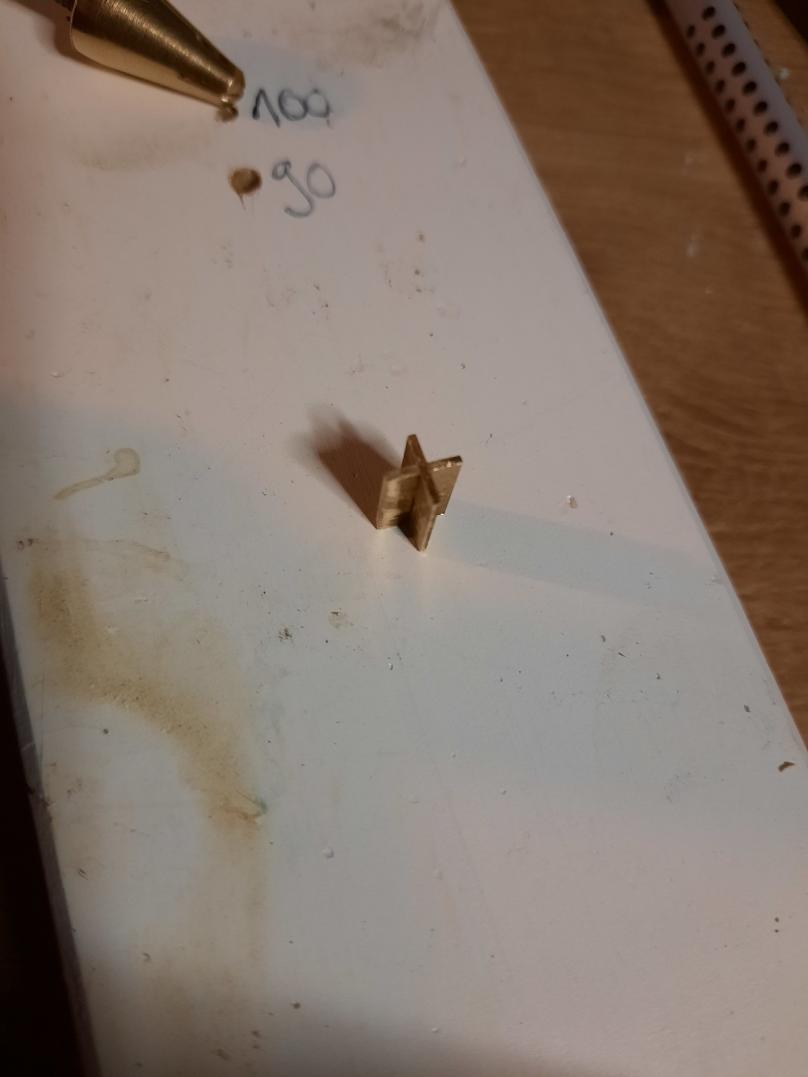

    The propeller hub received the vortex attenuator, made from 1mm brass, again using the proxxon installation:

    Click image for larger version

Name:	20230127_182054_copy_1200x1600.jpg
Views:	211
Size:	56.9 KB
ID:	168986Click image for larger version

Name:	20230127_182940_copy_1200x1600.jpg
Views:	208
Size:	54.9 KB
ID:	168987Click image for larger version

Name:	20230127_183022_copy_1200x1600.jpg
Views:	216
Size:	51.0 KB
ID:	168988Click image for larger version

Name:	20230127_221014_copy_1200x1600.jpg
Views:	211
Size:	46.7 KB
ID:	168989Click image for larger version

Name:	20230127_222322_copy_1200x1600.jpg
Views:	211
Size:	52.7 KB
ID:	168990Click image for larger version

Name:	20230127_223009_copy_1200x1600.jpg
Views:	210
Size:	39.7 KB
ID:	168991Click image for larger version

Name:	20230127_222934_copy_1200x1600.jpg
Views:	211
Size:	44.5 KB
ID:	168992Click image for larger version

Name:	20230127_224050_copy_1200x1600.jpg
Views:	209
Size:	48.2 KB
ID:	168993Click image for larger version

Name:	20230127_224957_copy_1200x1600.jpg
Views:	220
Size:	58.9 KB
ID:	168994Click image for larger version

Name:	20230127_225336_copy_1200x1600.jpg
Views:	207
Size:	56.4 KB
ID:	168995Click image for larger version

Name:	20230127_225846_copy_1200x1600.jpg
Views:	208
Size:	49.1 KB
ID:	168996Click image for larger version

Name:	20230127_232808_copy_1200x1600.jpg
Views:	211
Size:	48.0 KB
ID:	168997Click image for larger version

Name:	20230127_232819_copy_1200x1600.jpg
Views:	208
Size:	51.0 KB
ID:	168998Click image for larger version

Name:	20230127_232829_copy_1200x1600.jpg
Views:	209
Size:	49.7 KB
ID:	168999

    Comment

    • JHapprich
      Captain
      • Oct 2017
      • 737

      #77

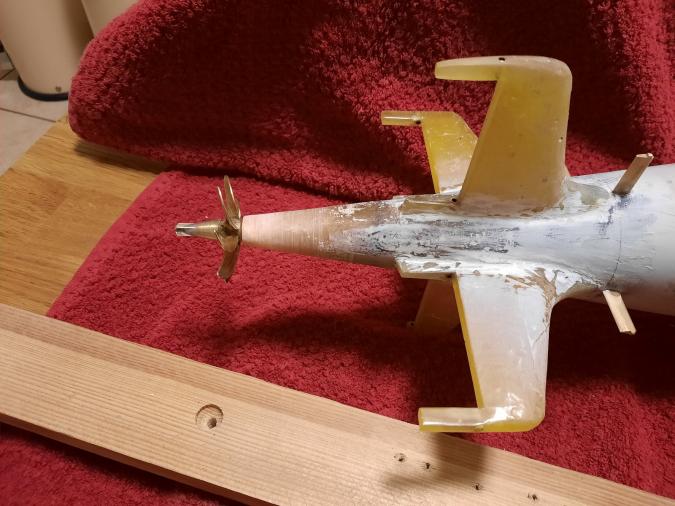

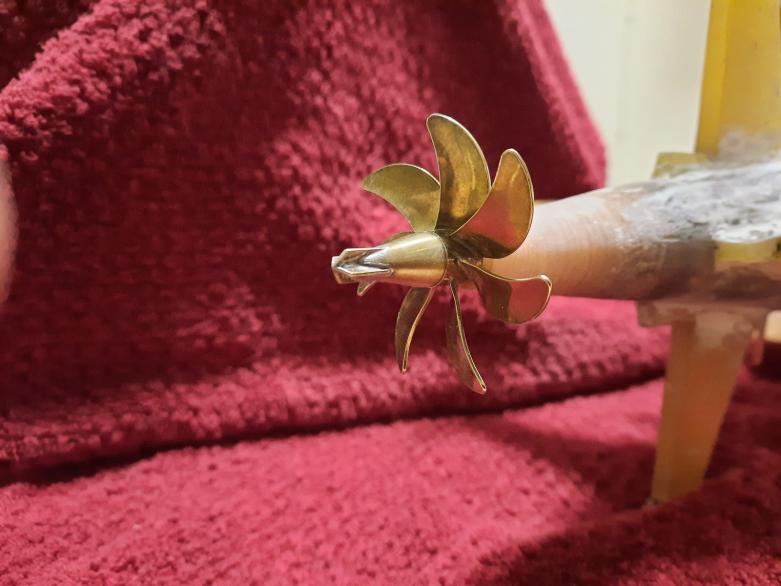

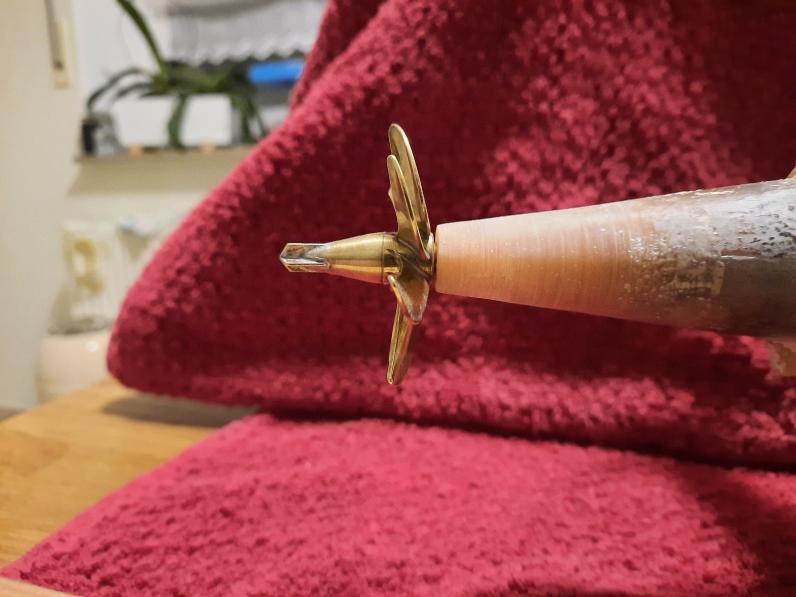

      The prop installed into the stern. Stern taper has been further narrowed by hand. Will remove some more material with the machine as the massive grp cone is quite tough!
      Click image for larger version

Name:	20230129_003947_copy_1600x1200.jpg
Views:	220
Size:	48.4 KB
ID:	169022Click image for larger version

Name:	20230129_003959_copy_1600x1200.jpg
Views:	215
Size:	48.7 KB
ID:	169023Click image for larger version

Name:	20230129_004012_copy_1600x1200.jpg
Views:	205
Size:	55.1 KB
ID:	169024

      Comment

      • JHapprich
        Captain
        • Oct 2017
        • 737

        #78

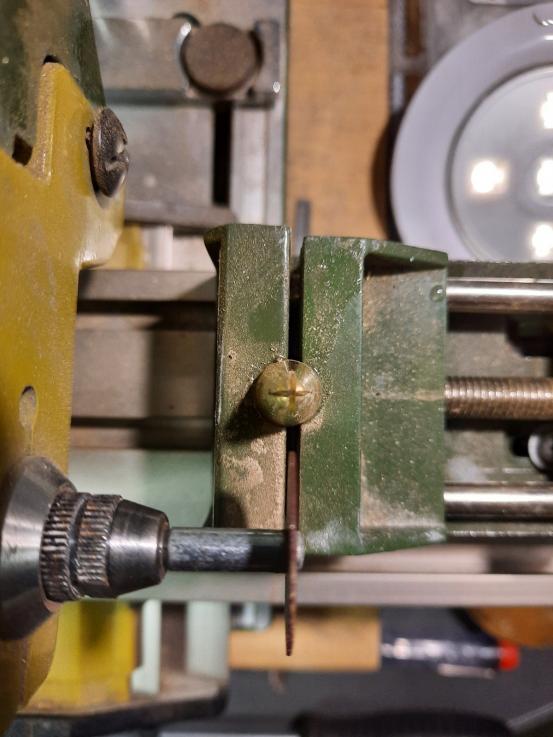

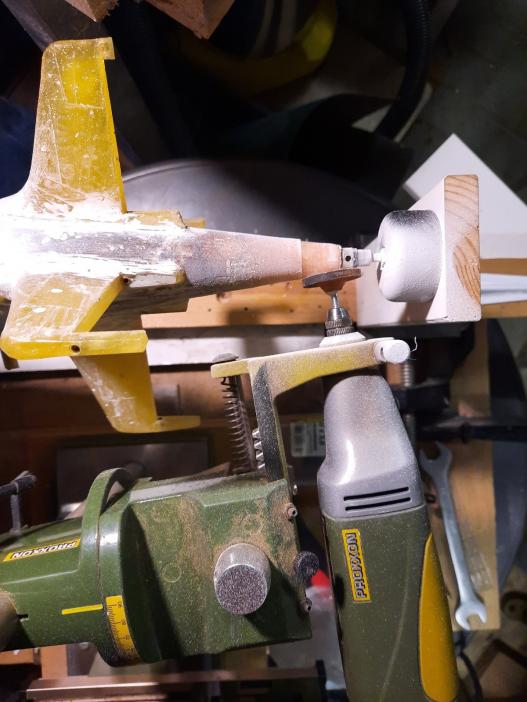

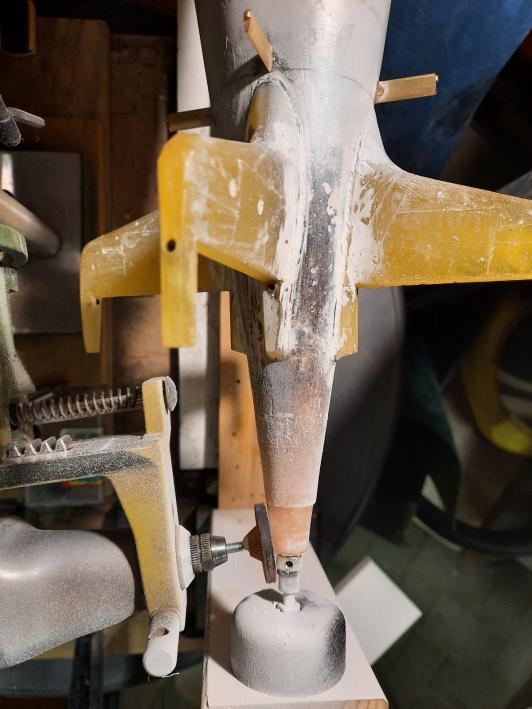

        Put the model on the milling table and ground the stern to shape. Found an air bubble that was filled with ca and carbon powder. Finalized with wet sanding and the screeding tool. The product is well worth that time consumpting process!

        Click image for larger version

Name:	20230129_215227_copy_1200x1600.jpg
Views:	219
Size:	51.6 KB
ID:	169053Click image for larger version

Name:	20230129_215239_copy_1200x1600.jpg
Views:	201
Size:	50.3 KB
ID:	169056Click image for larger version

Name:	20230129_233240_copy_1200x1600.jpg
Views:	203
Size:	54.7 KB
ID:	169054Click image for larger version

Name:	20230129_233251_copy_1200x1600.jpg
Views:	198
Size:	53.2 KB
ID:	169055

        Comment

        • JHapprich
          Captain
          • Oct 2017
          • 737

          #79
          Hi again!

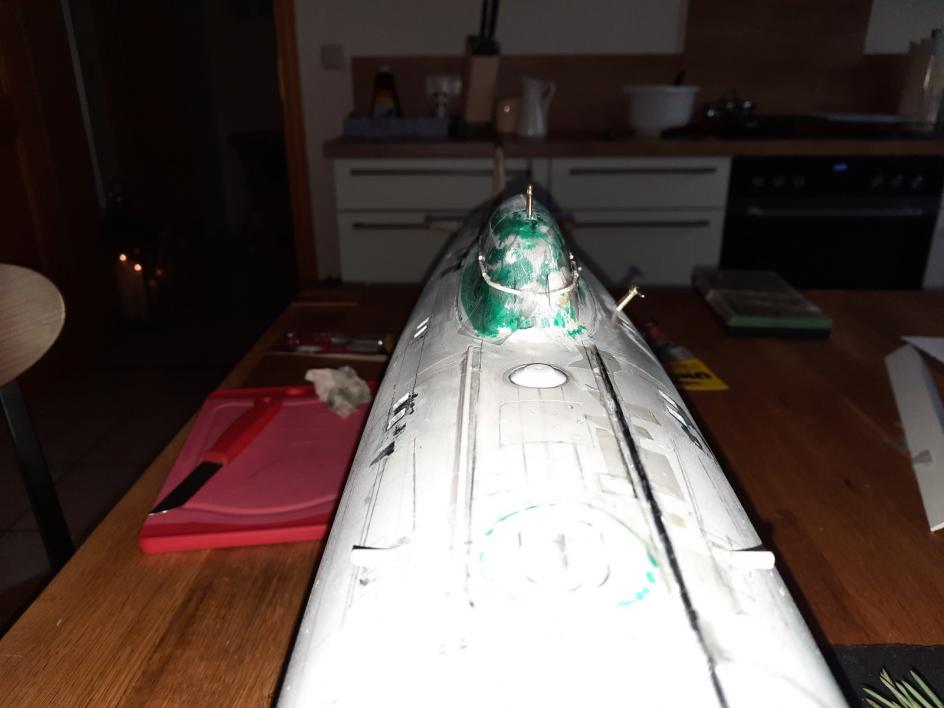

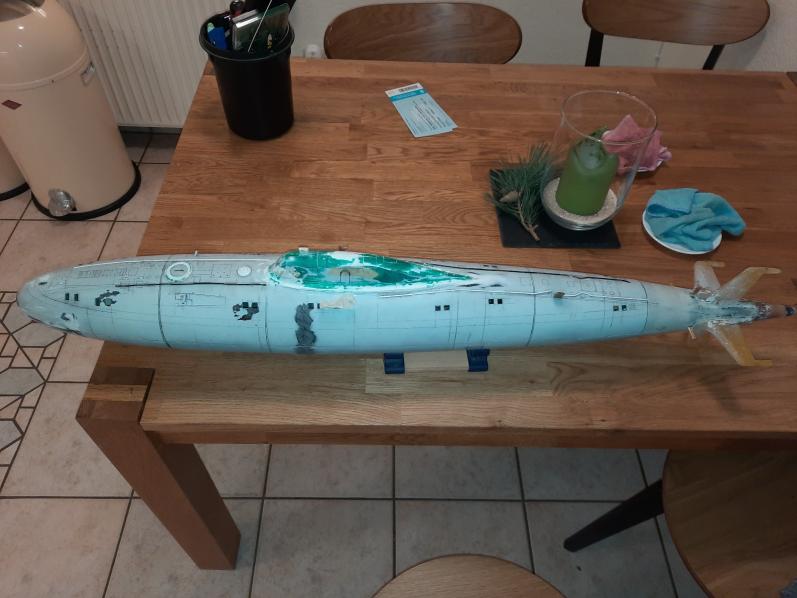

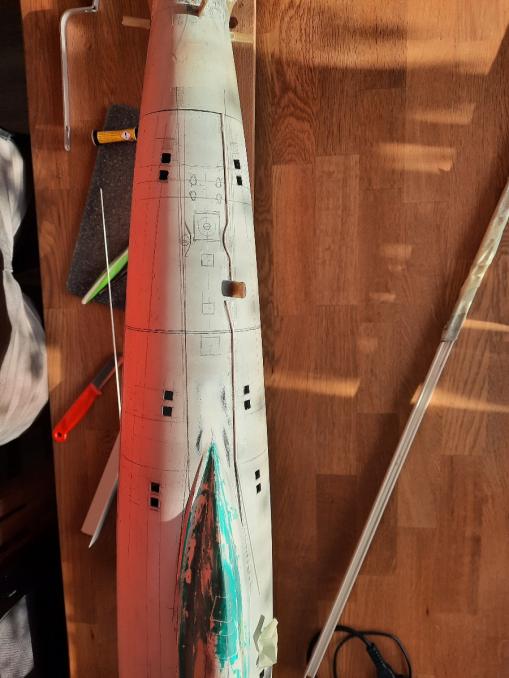

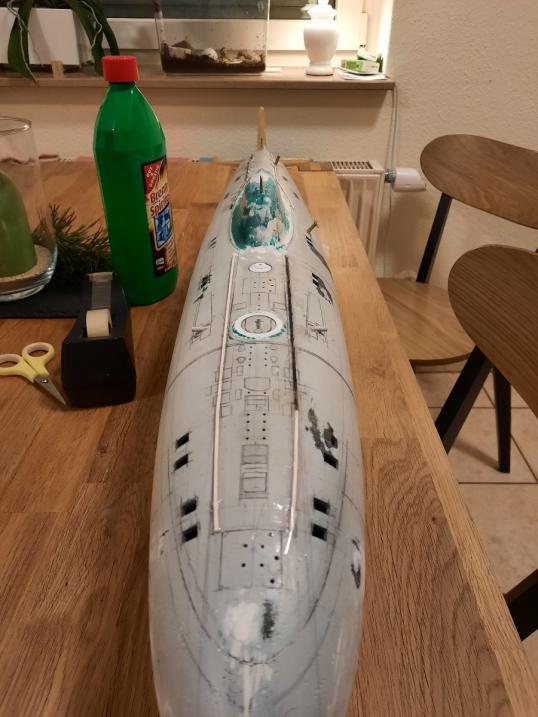

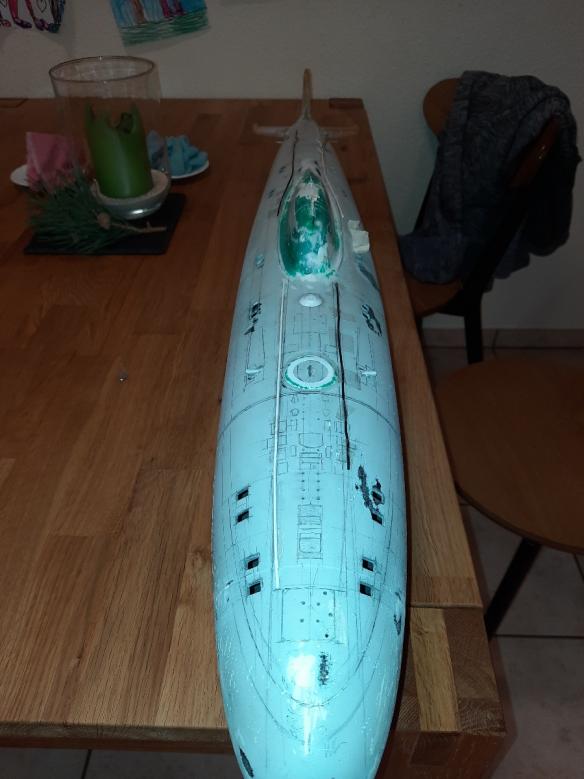

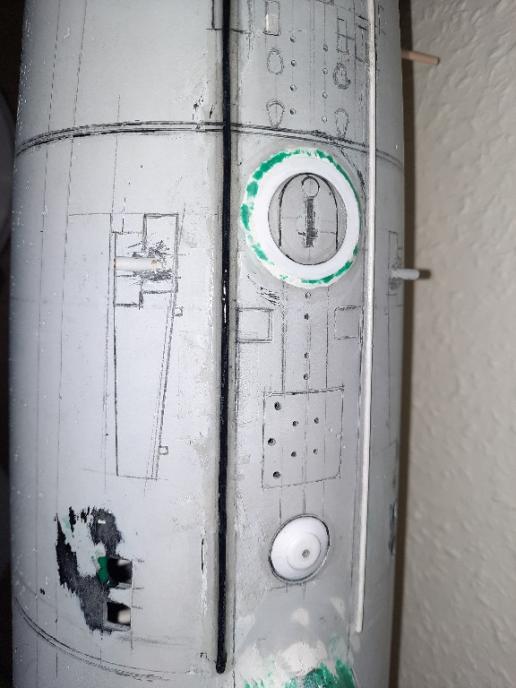

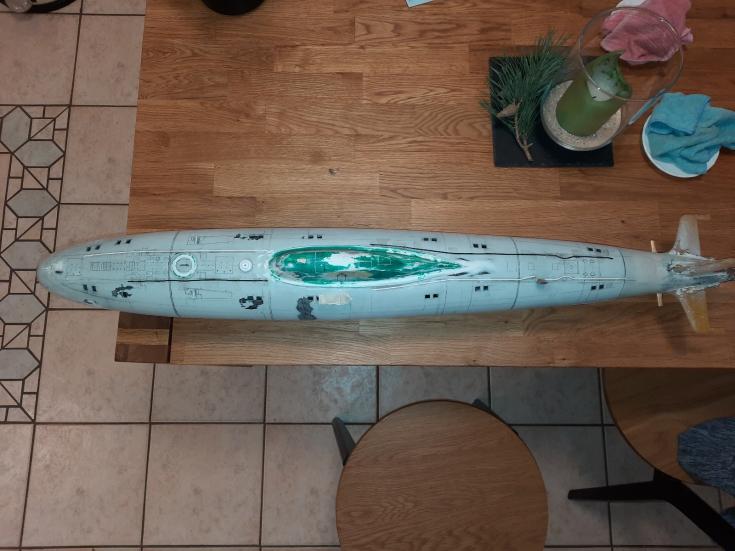

          Basic scribing of the conning has been re-done. Worked on the safety tracks from styrene rod and tried my approach of an external antenna. Antenna's beeing plugged into the stern endcap, hull halves then closed up. Antenna forms the aft starboard track, reenters the hull at the conning, forms an loop upwards under the conning's ceilling, crosses to starbord and forms the forward port track. To be CA'd down and fixed with epoxy permanently yet.

          Click image for larger version  Name:	20230205_155153_copy_1600x1200.jpg Views:	0 Size:	59.3 KB ID:	169275Click image for larger version  Name:	20230205_153326_copy_900x1200.jpg Views:	0 Size:	47.9 KB ID:	169272Click image for larger version  Name:	20230205_220145_copy_900x1200.jpg Views:	0 Size:	45.3 KB ID:	169273Click image for larger version  Name:	20230205_220136_copy_1600x1200.jpg Views:	0 Size:	53.9 KB ID:	169276Click image for larger version  Name:	20230205_220153_copy_1600x1200.jpg Views:	0 Size:	54.2 KB ID:	169277Click image for larger version  Name:	20230205_220129_copy_1600x1200.jpg Views:	0 Size:	54.1 KB ID:	169278Click image for larger version  Name:	20230205_220304_copy_1600x1200.jpg Views:	0 Size:	50.9 KB ID:	169274Click image for larger version  Name:	20230205_220318_copy_1600x1200.jpg Views:	0 Size:	56.0 KB ID:	169279Click image for larger version  Name:	20230205_220349_copy_1600x1200.jpg Views:	0 Size:	53.7 KB ID:	169280
          Last edited by JHapprich; 02-05-2023, 06:41 PM.

          Comment

          • rwtdiver
            Vice Admiral
            • Feb 2019
            • 1824

            #80
            Hi Jorg,

            Very interesting method of doing your receiver antenna! And looking at the final photo showing your WTC can one assume that your ballast system is forward of your electronics WTC? It is really a joy to see others step outside of the so called box and trying different methods of doing there submarine models. Your Beluga is looking great!

            Rob
            "Firemen can stand the heat."

            Comment

            • JHapprich
              Captain
              • Oct 2017
              • 737

              #81
              Thank you! Yes, its a sheerline high pressure system, distributed by David Hughes of ZERO BUBBLE MODEL DESIGN. ZB-1 with numerous modifications.

              Comment

              • Davidh
                Captain
                • Nov 2010
                • 719

                #82
                Nice work Mate.

                This Beluga is going to be superb!

                Dave.

                Comment

                • JHapprich
                  Captain
                  • Oct 2017
                  • 737

                  #83
                  Thank you, David! The Beluga's lines are special! Will see how it will perform with the refitted ZB!

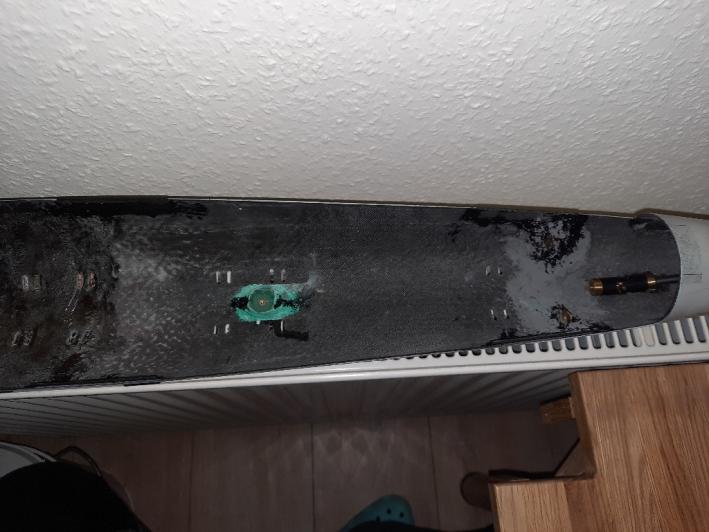

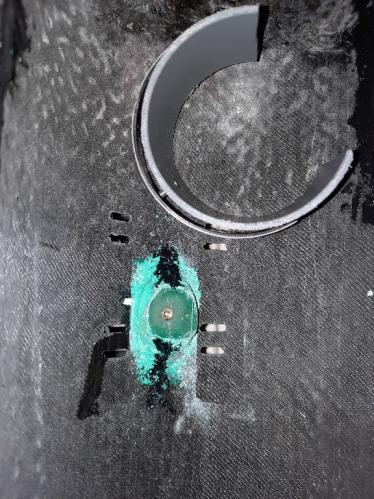

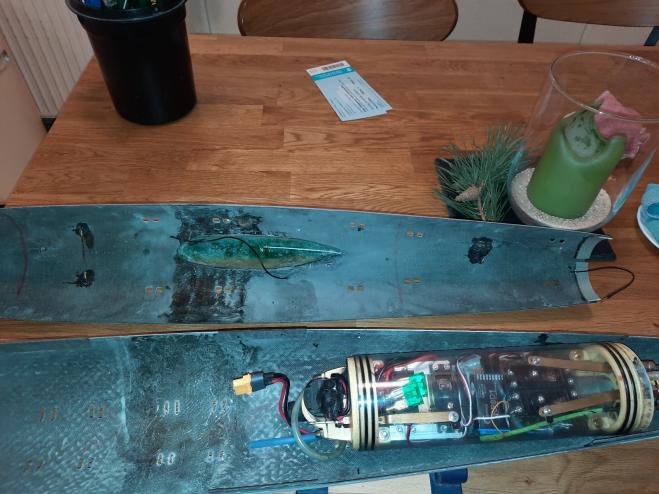

                  Time for surgery!

                  Click image for larger version

Name:	20230209_100947_copy_671x1200.jpg
Views:	172
Size:	47.2 KB
ID:	169573Click image for larger version

Name:	20230210_225035_copy_1600x1200.jpg
Views:	157
Size:	54.7 KB
ID:	169578Click image for larger version

Name:	20230210_225543_copy_900x1200.jpg
Views:	154
Size:	52.9 KB
ID:	169580Click image for larger version

Name:	20230210_225626_copy_1600x1200.jpg
Views:	157
Size:	47.8 KB
ID:	169577Click image for larger version

Name:	20230211_163012_copy_900x1200.jpg
Views:	157
Size:	51.3 KB
ID:	169581Click image for larger version

Name:	20230211_163021_copy_1600x1200.jpg
Views:	157
Size:	50.5 KB
ID:	169576Click image for larger version

Name:	20230211_163030_copy_1600x1200.jpg
Views:	156
Size:	50.4 KB
ID:	169574Click image for larger version

Name:	20230211_163036_copy_1600x1200.jpg
Views:	156
Size:	48.9 KB
ID:	169575Click image for larger version

Name:	20230211_163052_copy_1600x1200.jpg
Views:	155
Size:	54.1 KB
ID:	169582

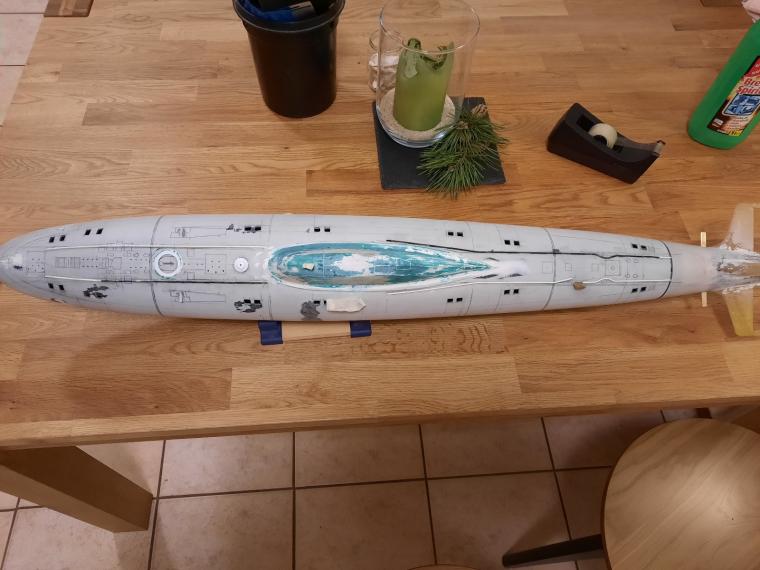

                  Safety tracks are installed, will receive a coat of epoxy after filling and sanding.

                  Jörg
                  Attached Files

                  Comment

                  • SSBN659
                    Commander
                    • Feb 2009
                    • 416

                    #84
                    Your workbench looks a lot cleaner and better organized than mine. I'm very impressed with your work on this boat.

                    Will Rogers
                    SSBN659

                    Comment

                    • rwtdiver
                      Vice Admiral
                      • Feb 2019
                      • 1824

                      #85
                      Jorg,

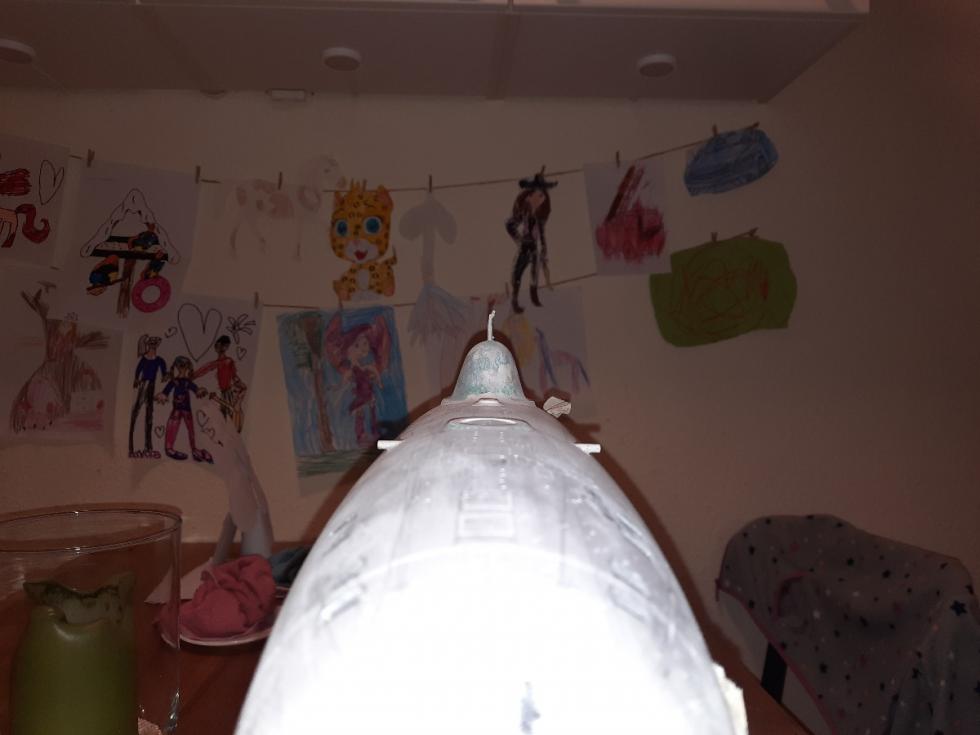

                      I am still fascinated by what you did with your receiver antenna! Running it outside the boat and utilizing it as a safety tract. I commend you on your forward thinking and ingenuity! As a side note I want to let you know how much I appreciate dentists!

                      Rob
                      "Firemen can stand the heat."

                      Comment

                      • JHapprich
                        Captain
                        • Oct 2017
                        • 737

                        #86

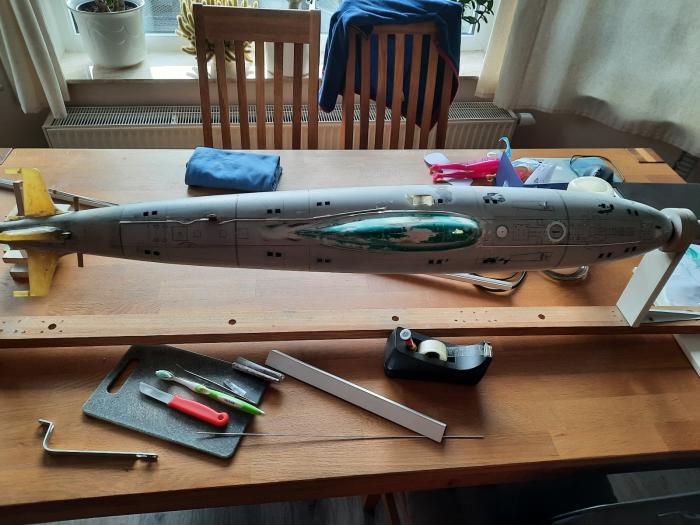

                        Thank you both! no, this is not my workbench (using two and both are messy) in those last pictures but our kitchentable! That antenna installation is my approch to avoid signal blocking from the carbon hull. We'll see how much of the details are still visible after final priming. I expect more re-scribing. Personally, the propeller is the part i am most happy about. Unbelievable, that not so long ago that hull lay dorment in shards in a box!

                        Jörg

                        Comment

                        • JHapprich
                          Captain
                          • Oct 2017
                          • 737

                          #87
                          Update: The antenna has been coated with epoxy resin.

                          Click image for larger version

Name:	20230226_114003_copy_576x768.jpg
Views:	139
Size:	45.3 KB
ID:	170125

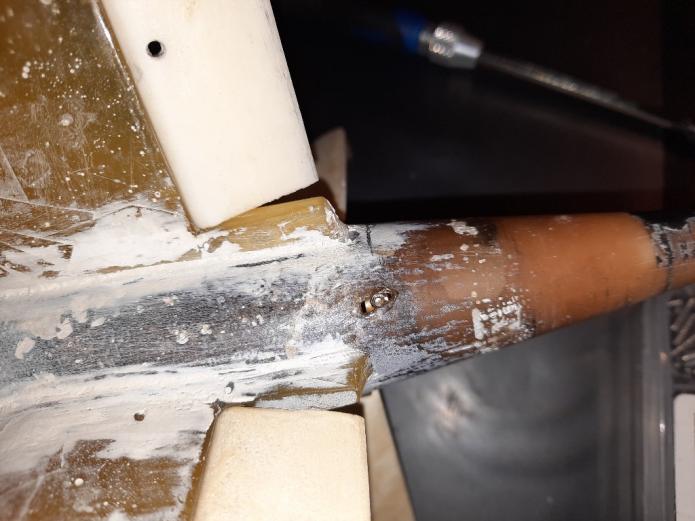

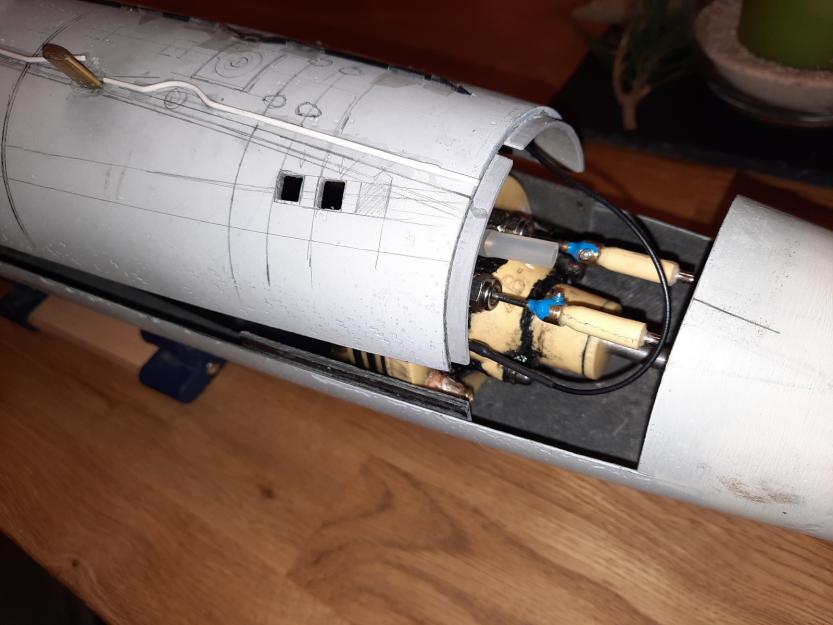

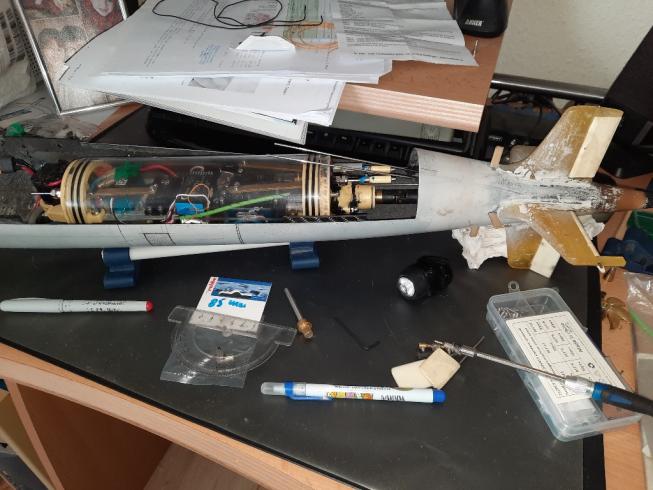

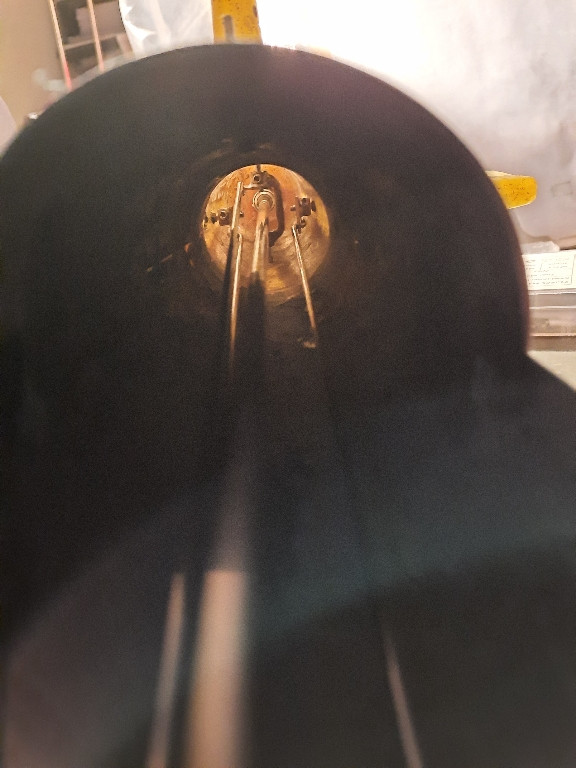

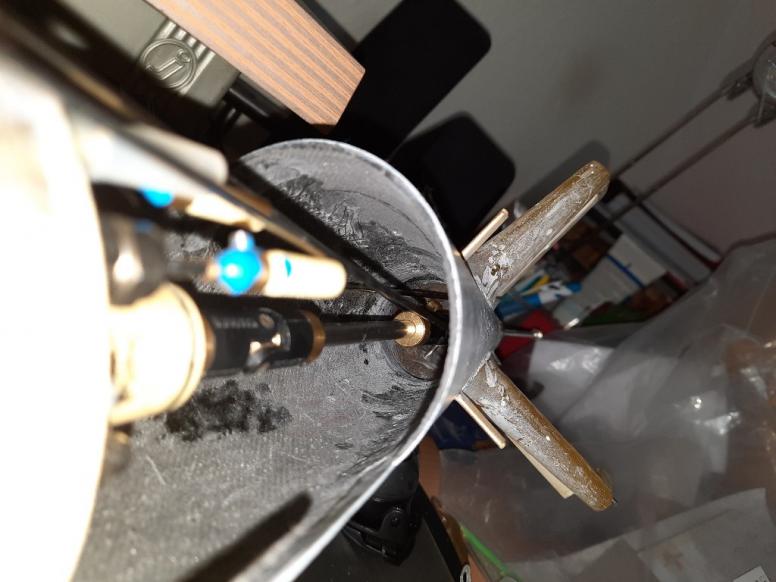

                          The driveshaft has been installed. A sterntube with bearings on both ends was glued into the stern cone, ending just after the plane's axis. As the propeller will be permanently fixed to the primary shaft, slots were cut into the underside of the stern to acces the locking collar and the set screw of the universal joint. An intermediate shaft then connects the prop to the engine shaft.

                          Click image for larger version

Name:	20230219_215818_copy_576x768.jpg
Views:	114
Size:	92.7 KB
ID:	170126Click image for larger version

Name:	20230219_215901_copy_1024x768.jpg
Views:	117
Size:	47.4 KB
ID:	170127Click image for larger version

Name:	20230226_114022_copy_1024x768.jpg
Views:	117
Size:	51.2 KB
ID:	170128Click image for larger version

Name:	20230226_114102_copy_1024x768.jpg
Views:	117
Size:	50.2 KB
ID:	170129Click image for larger version

Name:	20230304_022846_copy_1024x768.jpg
Views:	114
Size:	51.1 KB
ID:	170130Click image for larger version

Name:	20230304_022855_copy_576x768.jpg
Views:	118
Size:	48.3 KB
ID:	170131

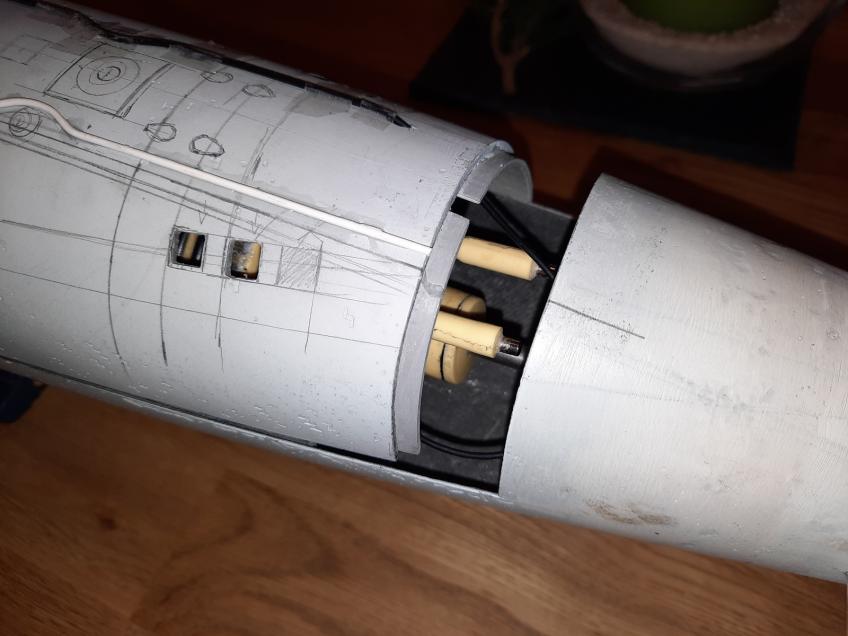

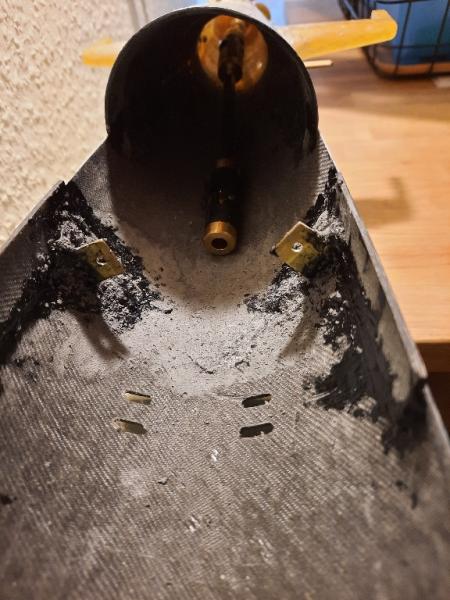

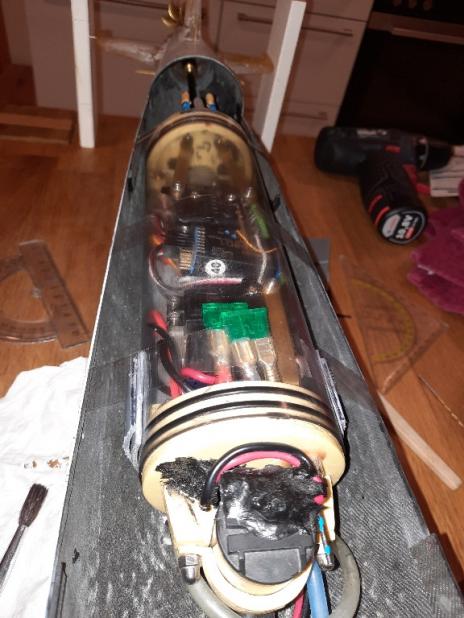

                          By employing the ZB-1, installation of the dive cylinder was performed similarly to the setup at the MIKE model. However this time, i used a brass standoff spacer to screw down the cradle from PP tube. A socket from resin and glass was formed around it. The stern endcap is secured by two bolts through L-profiles, which were glued in place with an epoxy-carbon powder composite.

                          Click image for larger version

Name:	20230311_081505_copy_1024x768.jpg
Views:	114
Size:	47.2 KB
ID:	170132Click image for larger version

Name:	20230311_081653_copy_576x768.jpg
Views:	114
Size:	47.9 KB
ID:	170133Click image for larger version

Name:	20230311_081917_copy_576x768.jpg
Views:	113
Size:	49.0 KB
ID:	170134
                          The application of adfitional carbon powder prevented the composite from flowing off the brass bars.

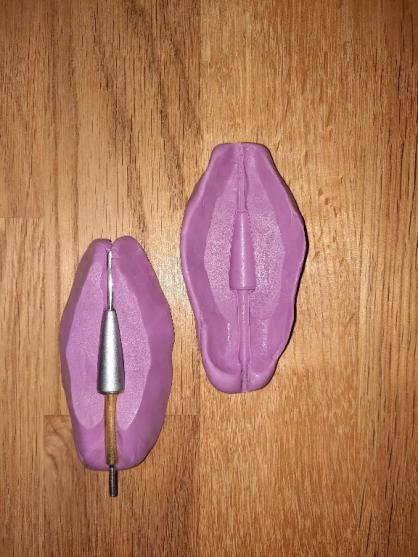

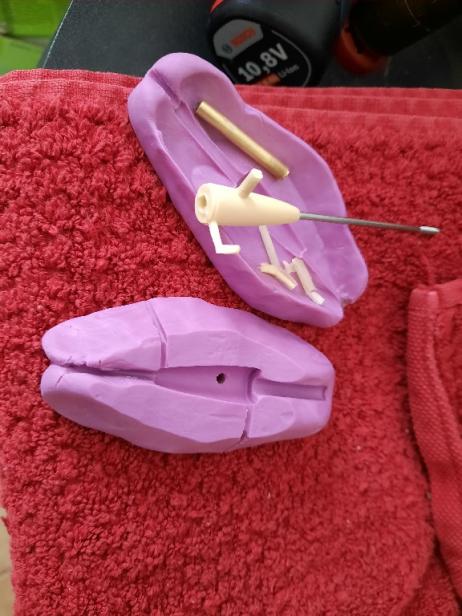

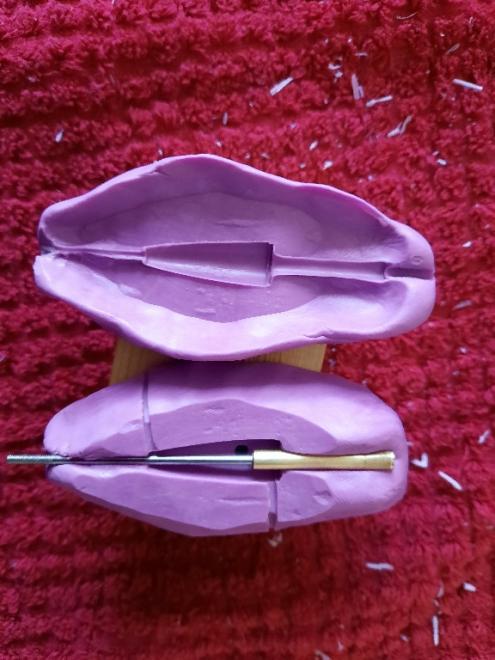

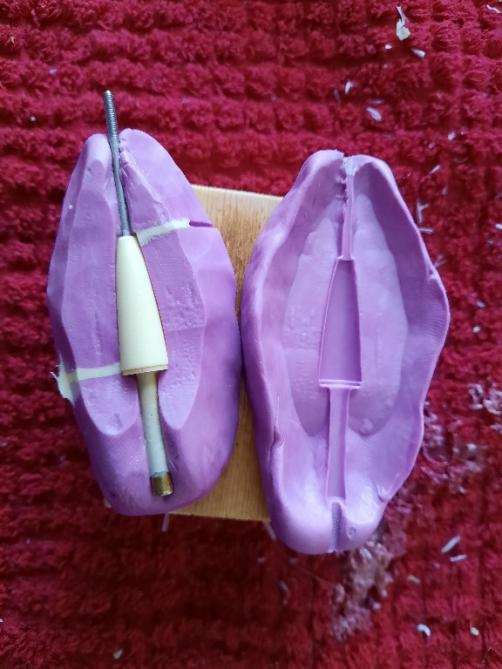

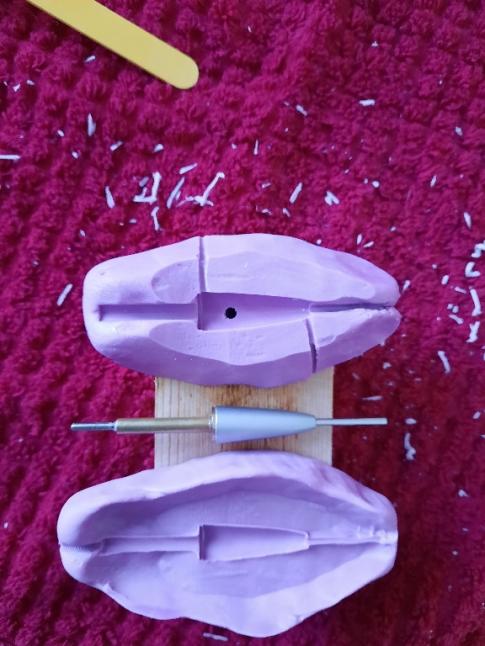

                          For the pushrods on this and future models, i made an universal master to cast magnetic couplers, based on an old pen's tip. The mold was made from silicone putty. The casting body is large enough to implement a 2mm bore locking collar with set screw into the resin (if needed) as well as using spacers of different diameter for both thicker and thinner neodym magnets. The first urethane part looks promising!

                          Click image for larger version

Name:	20230308_220509_copy_576x768.jpg
Views:	117
Size:	43.3 KB
ID:	170135Click image for larger version

Name:	20230311_151331_copy_576x768.jpg
Views:	113
Size:	48.3 KB
ID:	170136Click image for larger version

Name:	20230311_152338_copy_576x768.jpg
Views:	113
Size:	48.1 KB
ID:	170137Click image for larger version

Name:	20230311_155857_copy_576x768.jpg
Views:	117
Size:	47.0 KB
ID:	170138Click image for larger version

Name:	20230311_161515_copy_576x768.jpg
Views:	113
Size:	48.6 KB
ID:	170139Click image for larger version

Name:	20230311_161819_copy_1024x768.jpg
Views:	113
Size:	40.9 KB
ID:	170140

                          Jörg

                          Comment

                          • JHapprich
                            Captain
                            • Oct 2017
                            • 737

                            #88

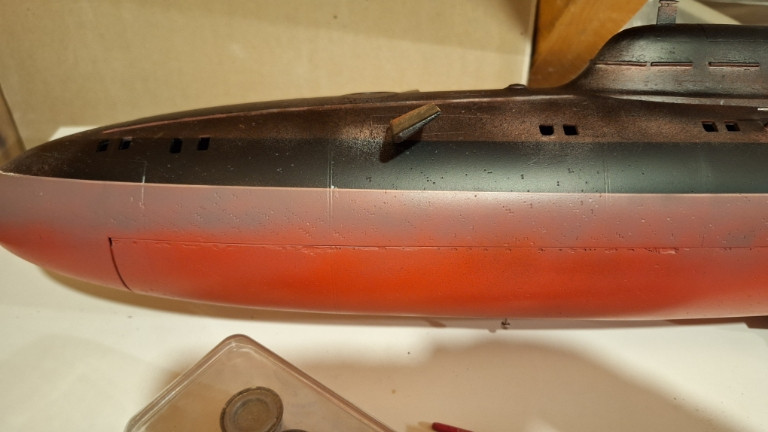

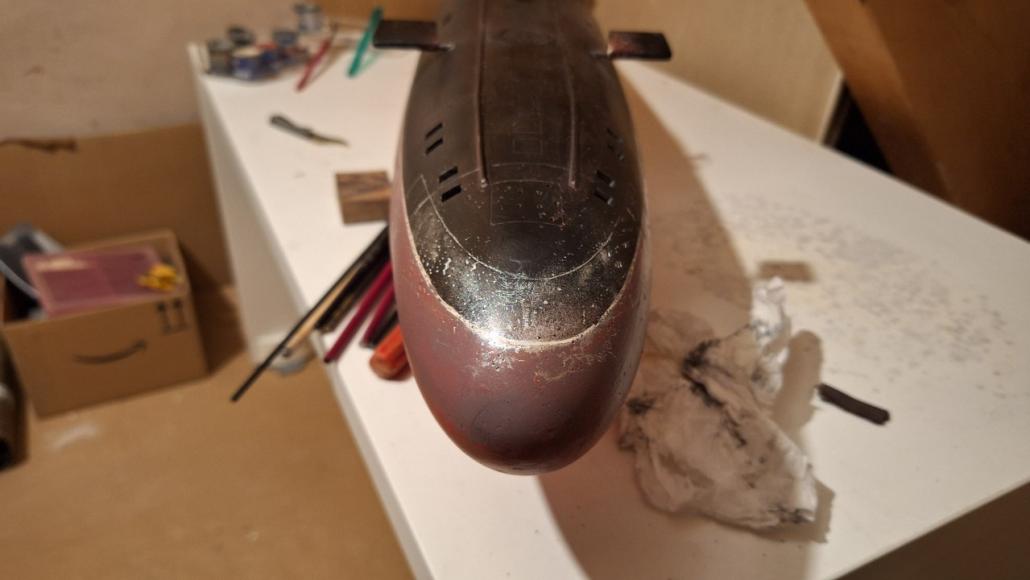

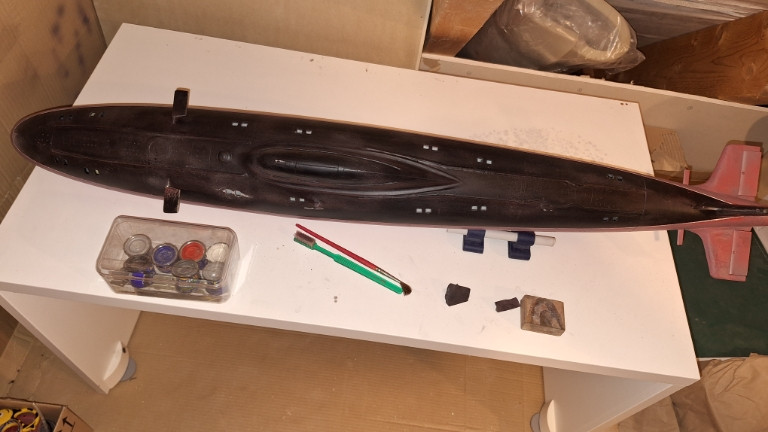

                            In order to lower someones ,unnamed, blood-pressure, some more "decent" model building:

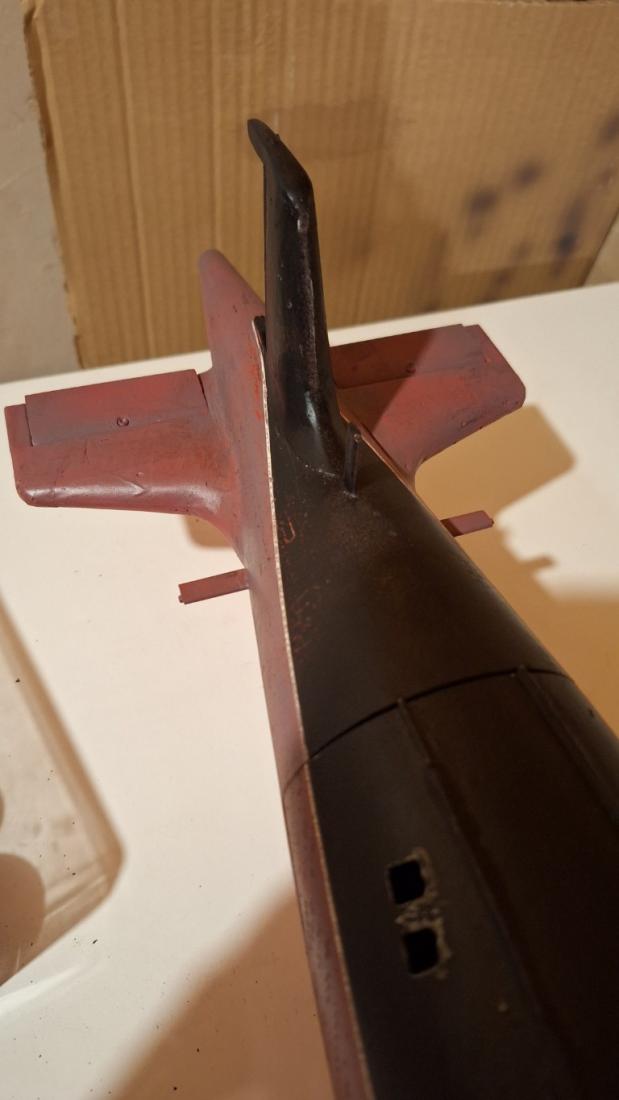

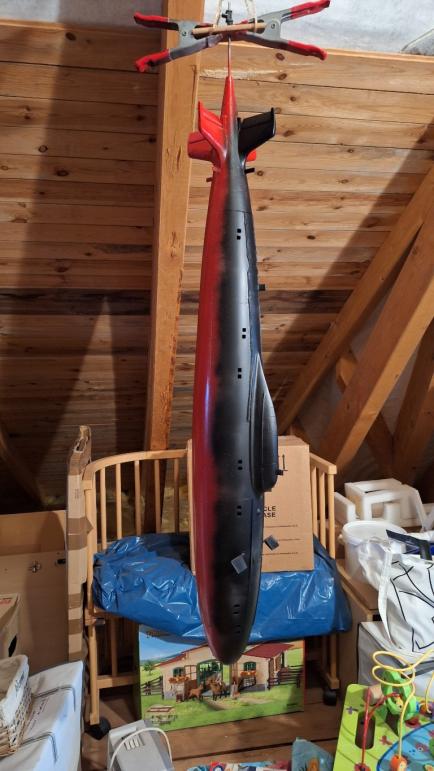

                            Took the beluga from the shelf and will finally paint it.

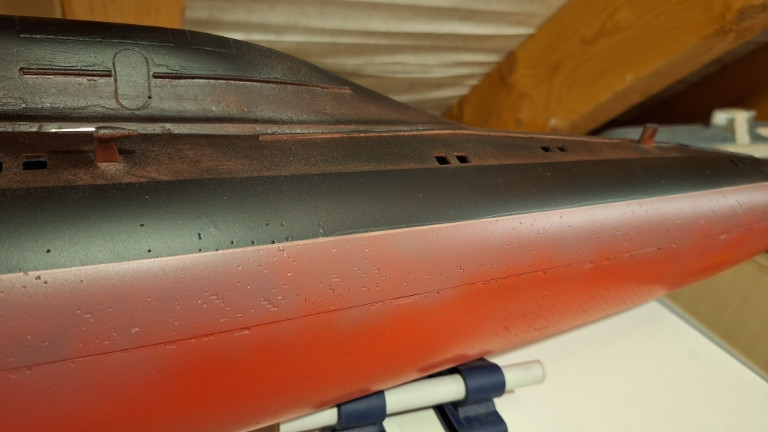

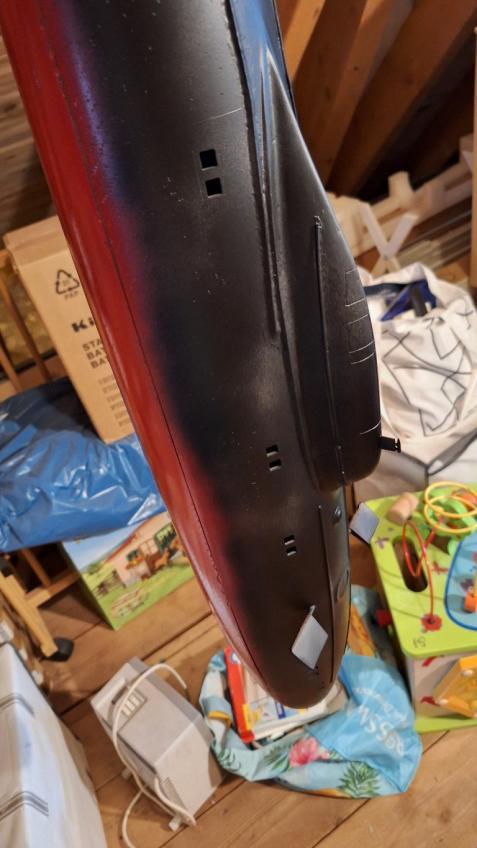

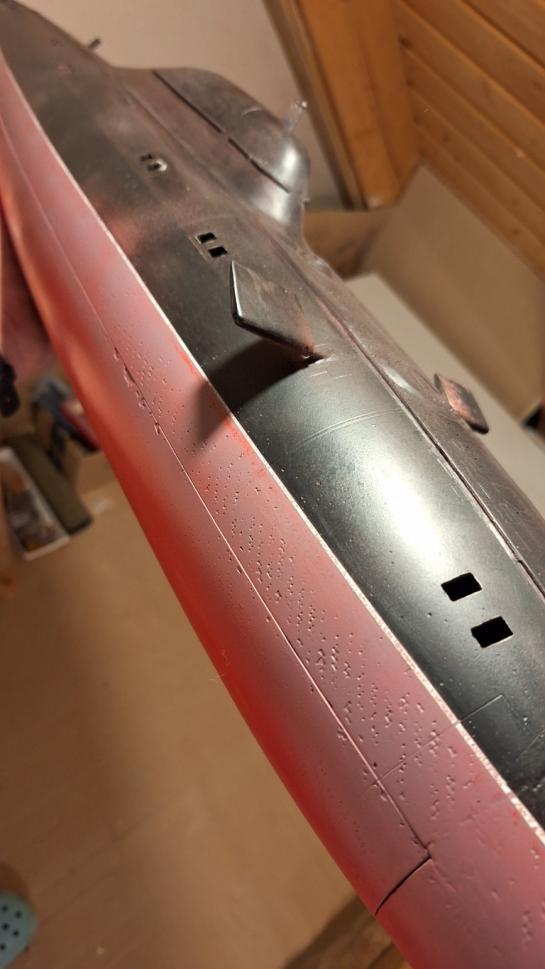

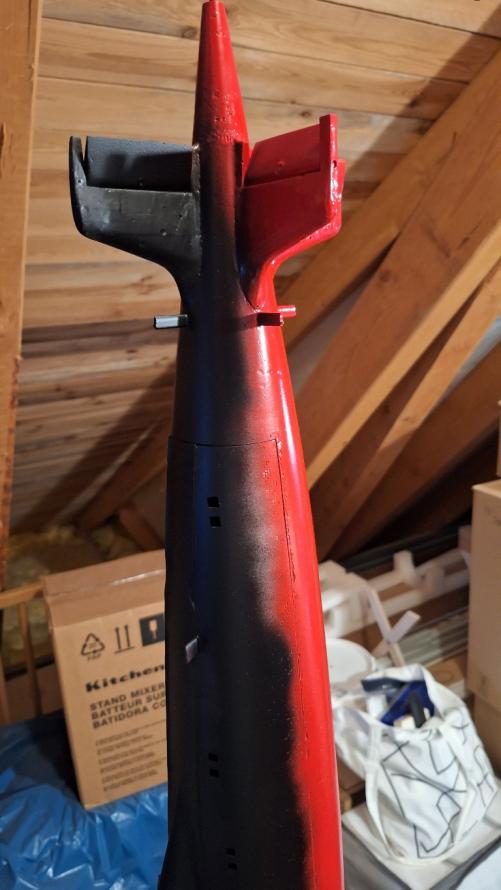

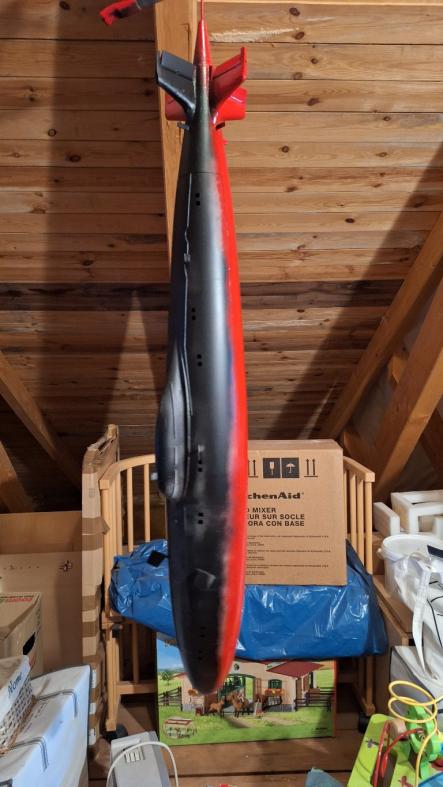

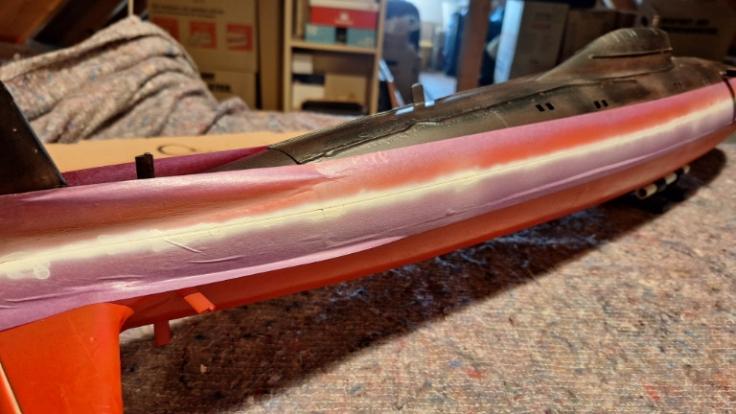

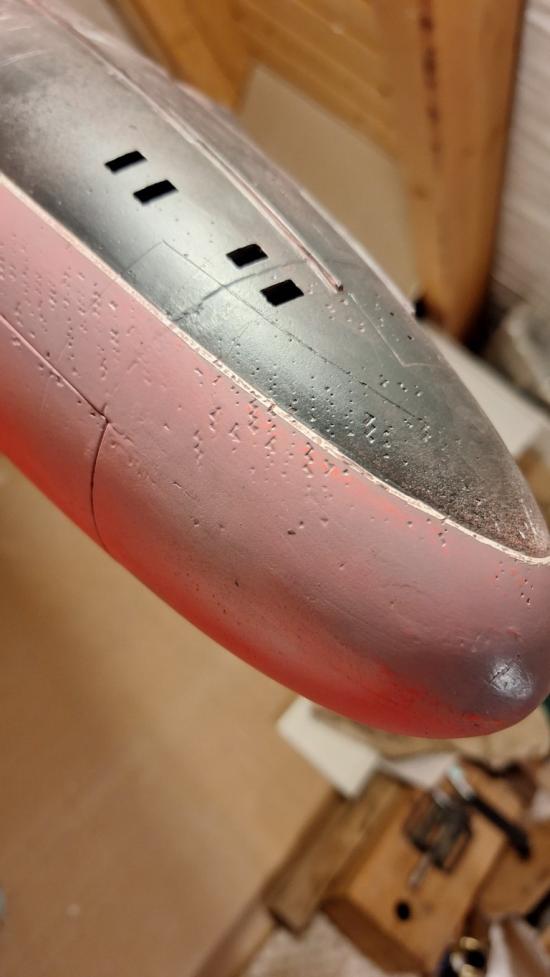

                            The hull has been prepared with brushing, soap-washing and rinsing, rinsing with alcohol and applying grey primer. Afterwards, spraying the first coats of lower hull red and upper hull black to check for proper look and to detect the (numerous) spots on the hull that need cleanup, filling and detailing.Figured some scribelines needing to be cut deeper. All done with rattlecans, the "real" paintjob will be performed with thinned colors and the Airbrush.

                            Click image for larger version  Name:	20240630_184839_copy_768x1365.jpg Views:	16 Size:	55.7 KB ID:	181245 Click image for larger version  Name:	20240630_184905_copy_768x1365.jpg Views:	16 Size:	54.5 KB ID:	181246 Click image for larger version  Name:	20240630_184922_copy_768x1365.jpg Views:	16 Size:	52.5 KB ID:	181247 Click image for larger version  Name:	20240630_184932_copy_768x1365.jpg Views:	16 Size:	49.3 KB ID:	181248
                            Last edited by JHapprich; 07-09-2024, 05:03 AM.
