  • #46
    Can't make out any detail of #1, but Forum is the same shape and profile of the Active Emissions Intercept LF hydrophone (also mounted topside on the bow) used from the WLR-9 to at least the WLR-17. A smaller, nearly identical fairing for HF acoustic reception sits on top of the sail, and along the keel. Mounting the pair of dual-acoustic band hydrophones above and below the ship's centerline gave optimal threat coverage against targets below (submarines or skimmers joining them) and surface contacts (nearly always skimmers). Forum has an oval mount projecting from the keel with the hydropone suspended from it. Heavy pigs; I never enjoyed having to remove / install the lower from scaffolding.

    Comment


    • #47
      Thanks CC for the info.

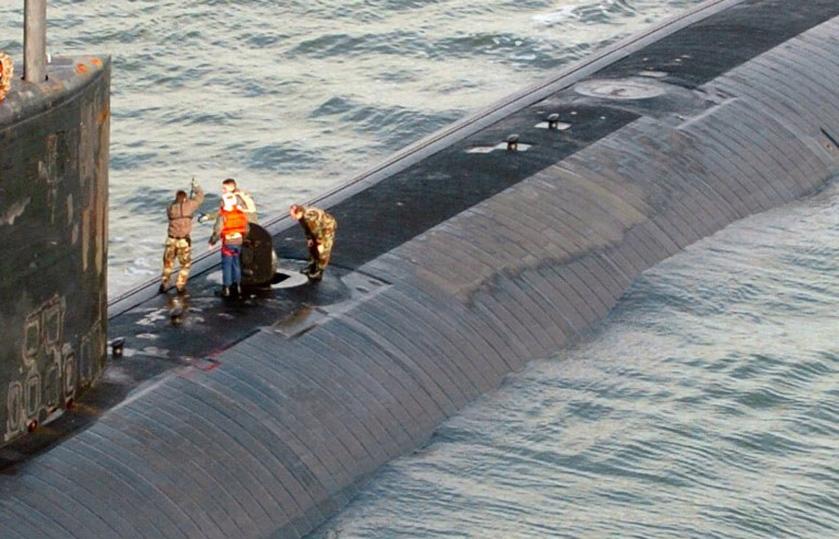

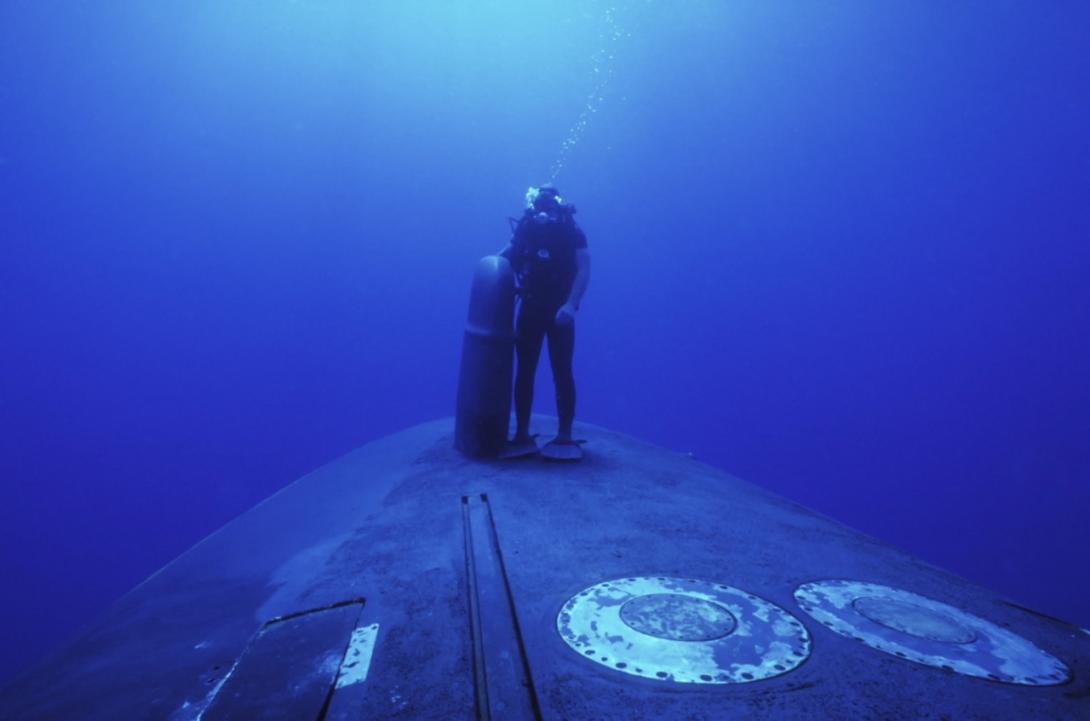

      I found this photo of hatches on Toledo SSN 769 and wanted to include the detail on my model.

      Click image for larger version

Name:	USS_Toledo_(SSN-769) copy.jpg
Views:	117
Size:	75.5 KB
ID:	168128

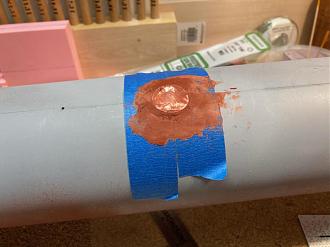

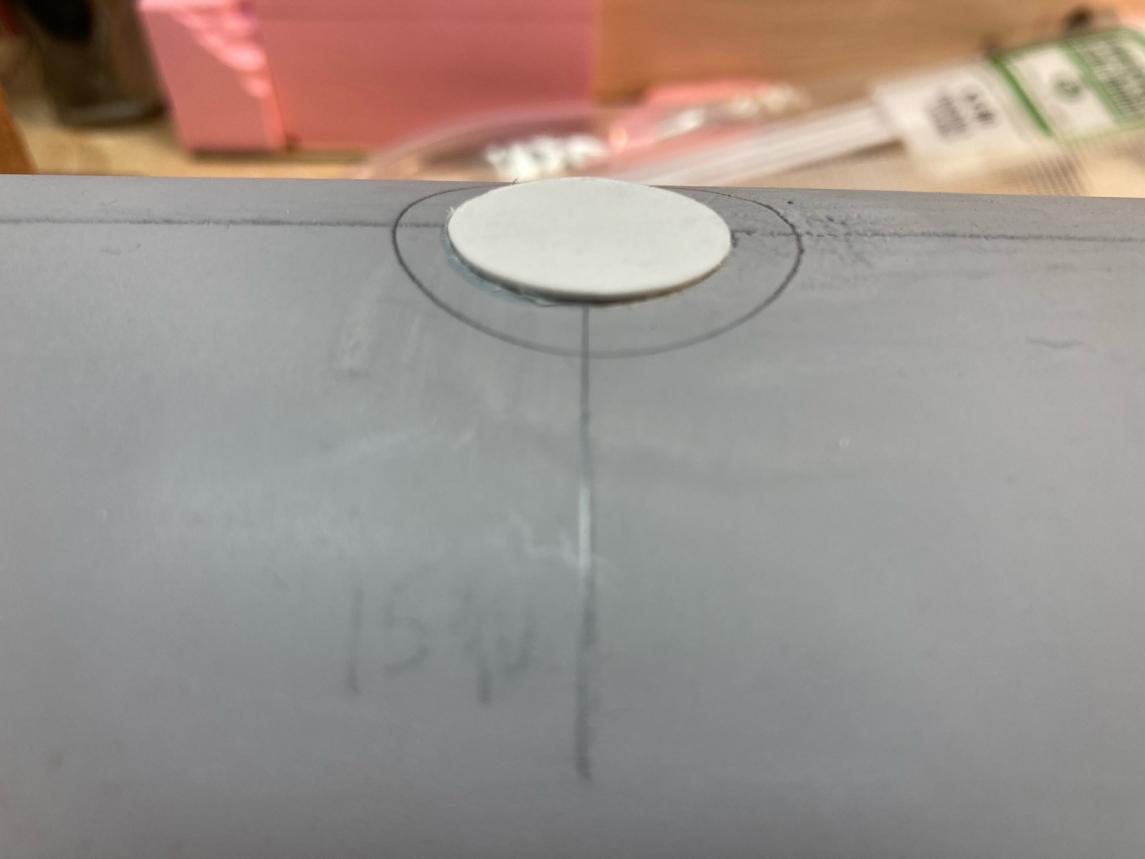

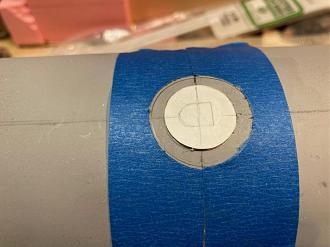

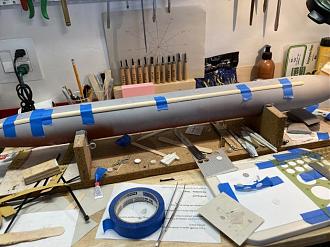

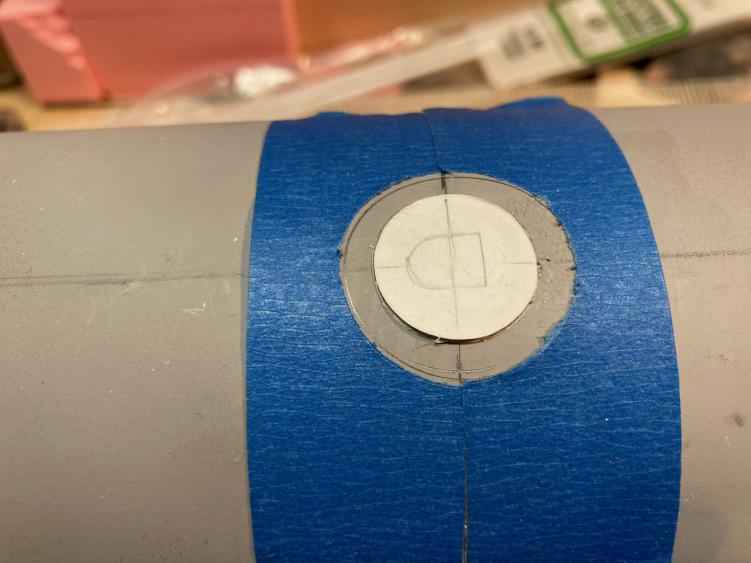

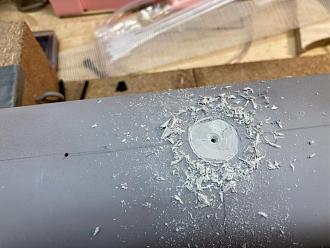

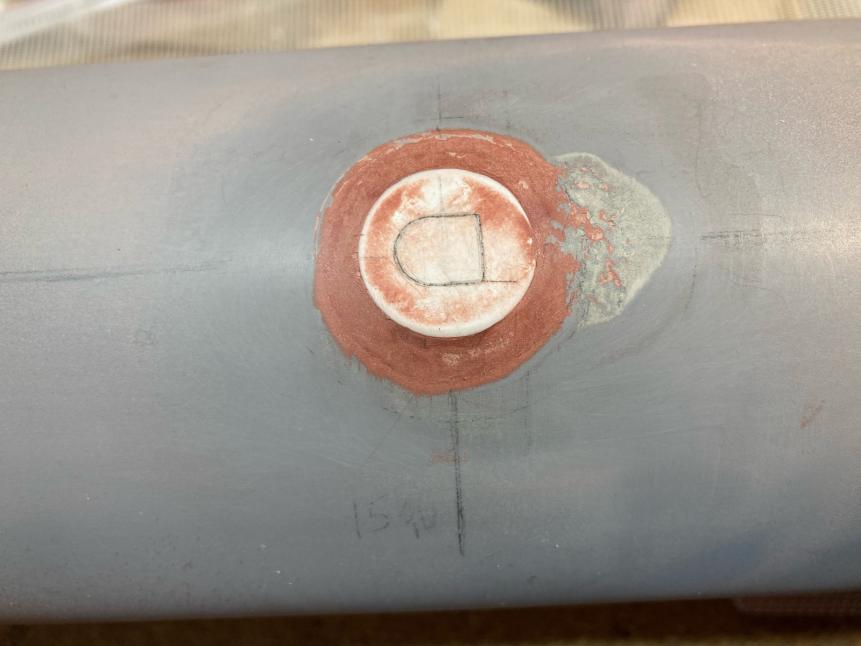

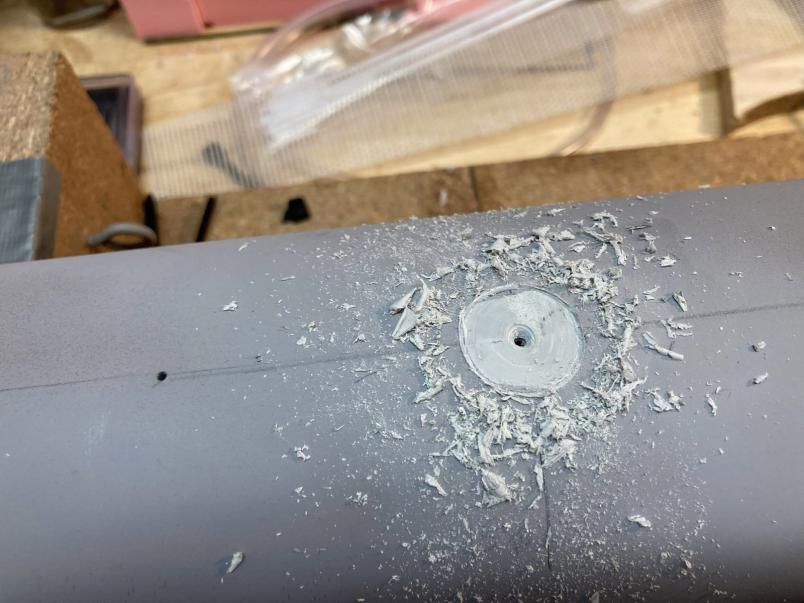

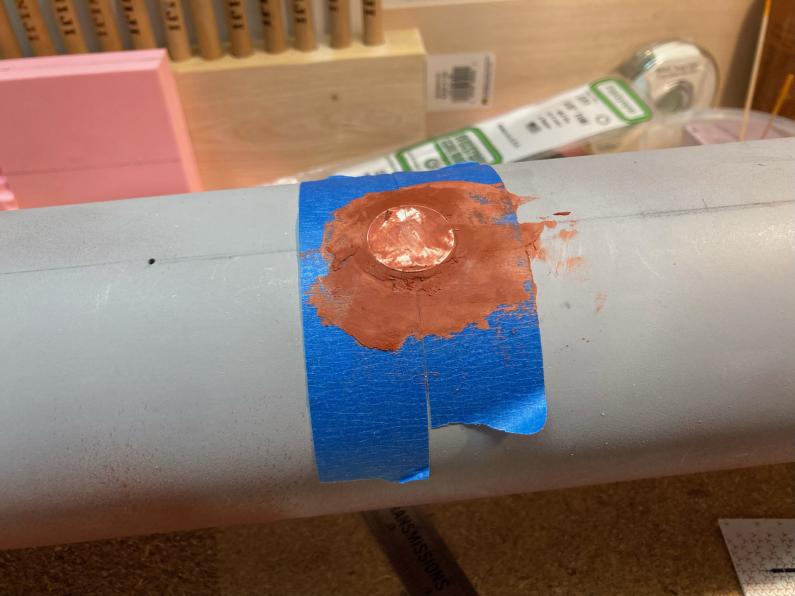

      I used a Forstner bit to create a flat indent on the hull for my polystyrene hatch plate. Then masked around the hatch plate and filled in with glazing putty. Next I sanded around the plate to get the contour with the hull. Hopefully this will look close to the real thing once I get the final coat of paint on the model. That will take awhile as I still have a lot of work to do on the hull before getting back to the sail, rudders and planes.

      Click image for larger version

Name:	IMG_8254.jpg
Views:	134
Size:	63.0 KB
ID:	168123Click image for larger version

Name:	IMG_8255.jpg
Views:	120
Size:	41.3 KB
ID:	168124Click image for larger version

Name:	IMG_8256.jpg
Views:	119
Size:	47.6 KB
ID:	168125Click image for larger version

Name:	IMG_8257.jpg
Views:	122
Size:	46.3 KB
ID:	168126
      Happy New Year everyone!

      Will Rogers
      SSBN659
      Attached Files

      Comment


      • #48

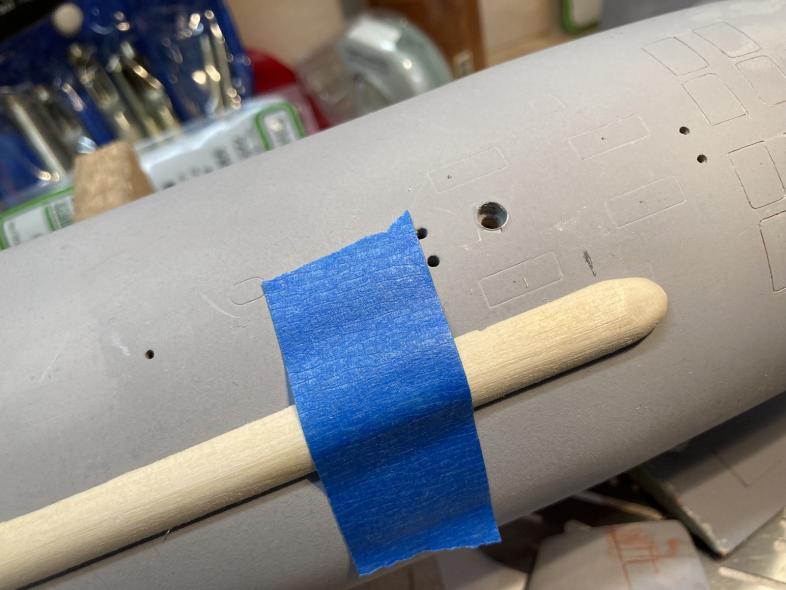

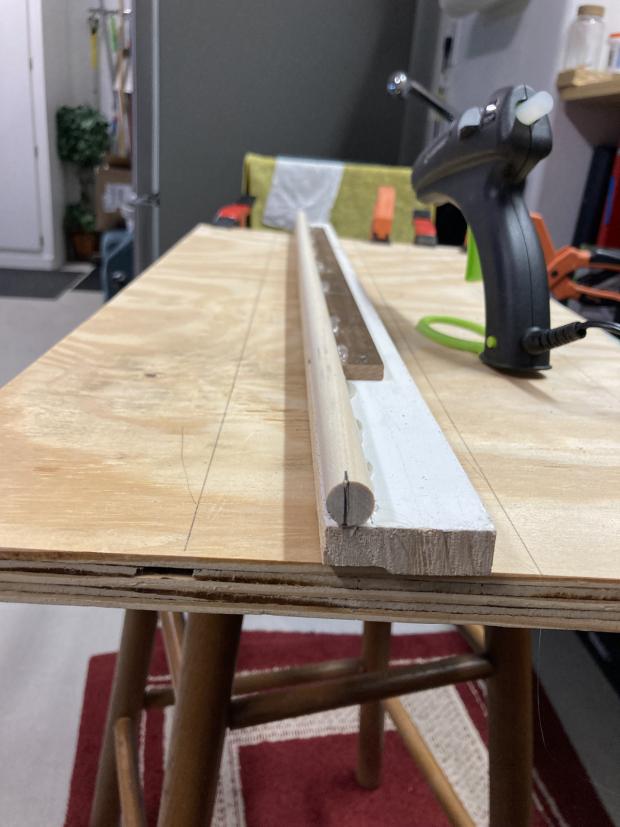

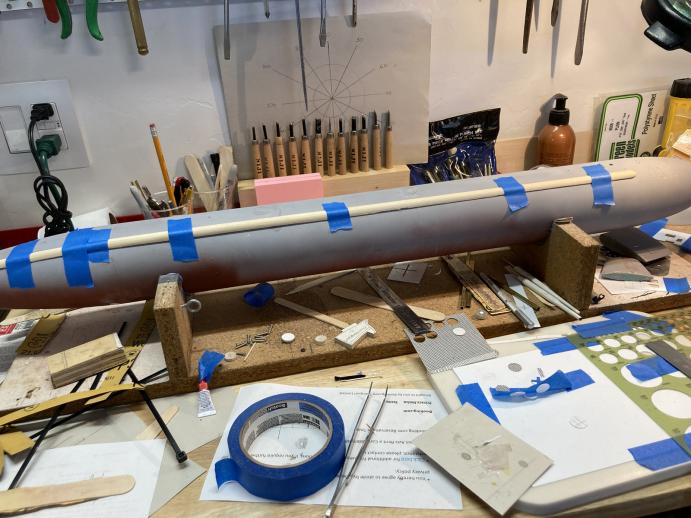

        Scribing the fairing covers for the Vertical Launch System has been a challenge. I haven't done any scribing since the Kilo I did several years back and my eyes aren't as sharp as before. I found some templates I used on my Visitor III and tried them.

        Click image for larger version

Name:	VLS DOOR TEMPLATE ROUND.jpg
Views:	107
Size:	51.1 KB
ID:	168457Click image for larger version

Name:	IMG_8204.jpg
Views:	96
Size:	50.4 KB
ID:	168458

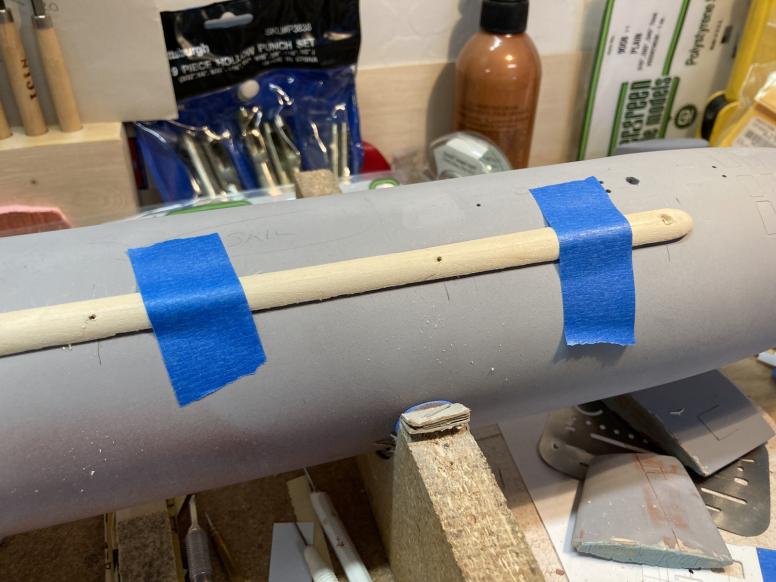

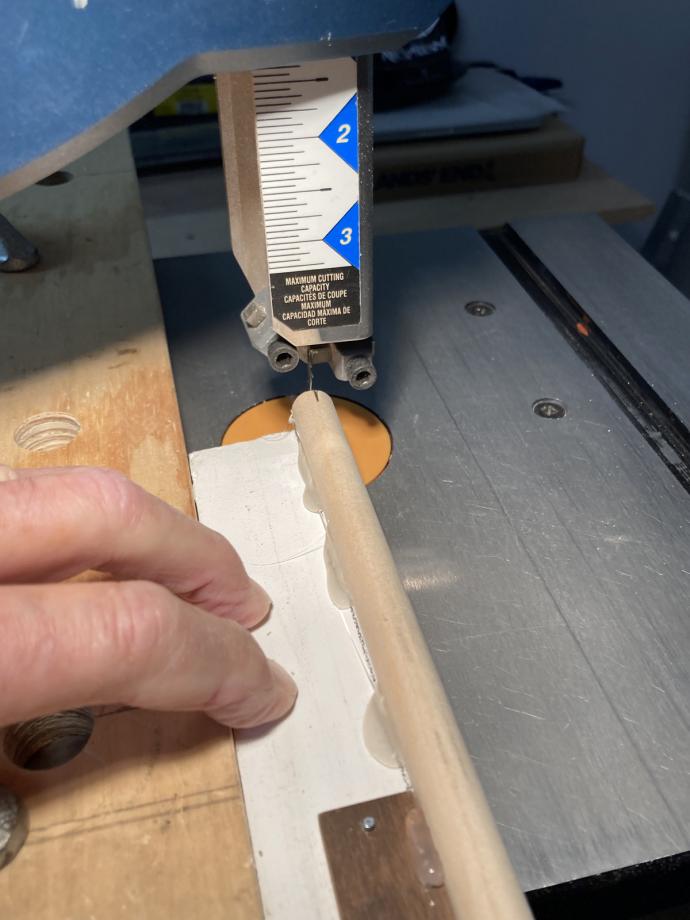

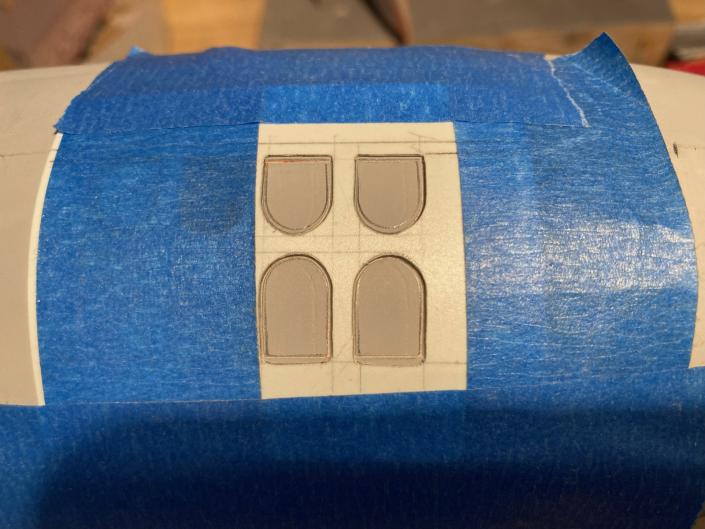

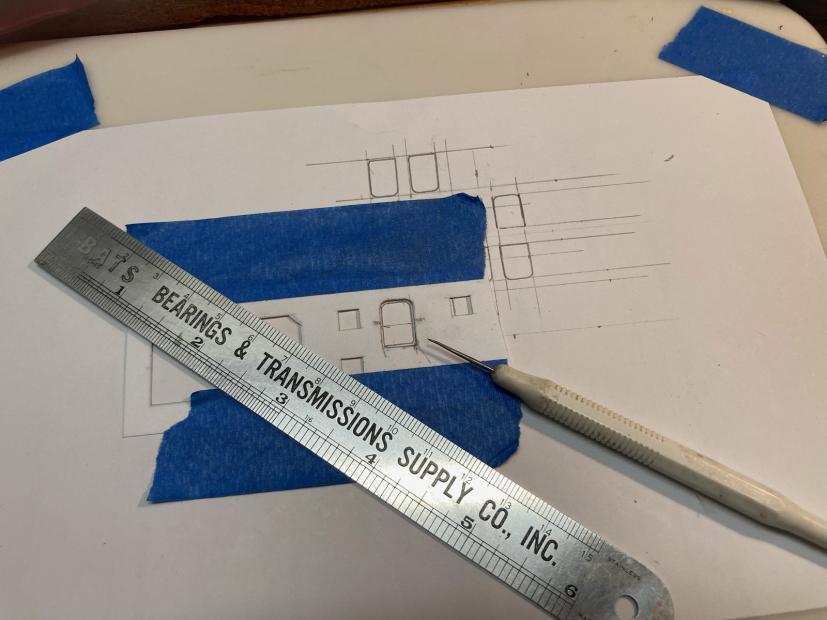

        The problem was they were too round and didn't come close to matching the real thing so I created new templates from Polystyrene Sheet. This one was better in that it was closer to the real thing..

        Click image for larger version

Name:	VLS DOORS.jpg
Views:	95
Size:	52.4 KB
ID:	168459Click image for larger version

Name:	0877044.jpg
Views:	101
Size:	94.0 KB
ID:	168461

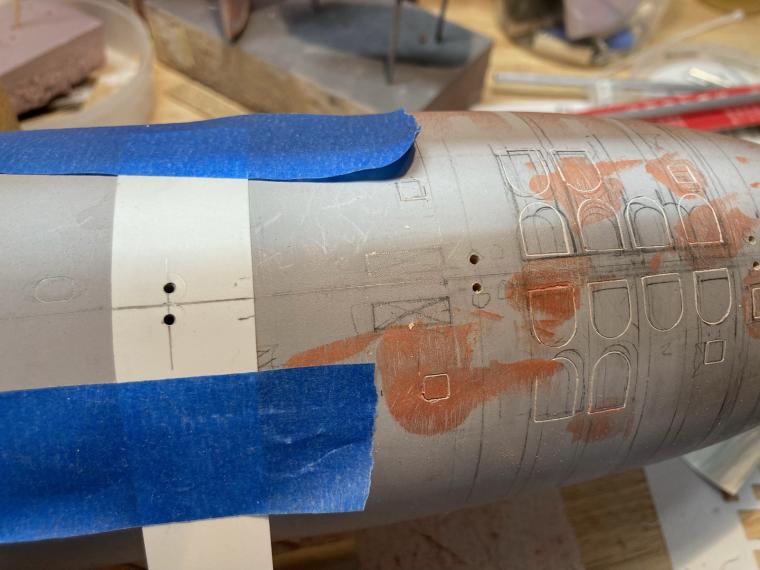

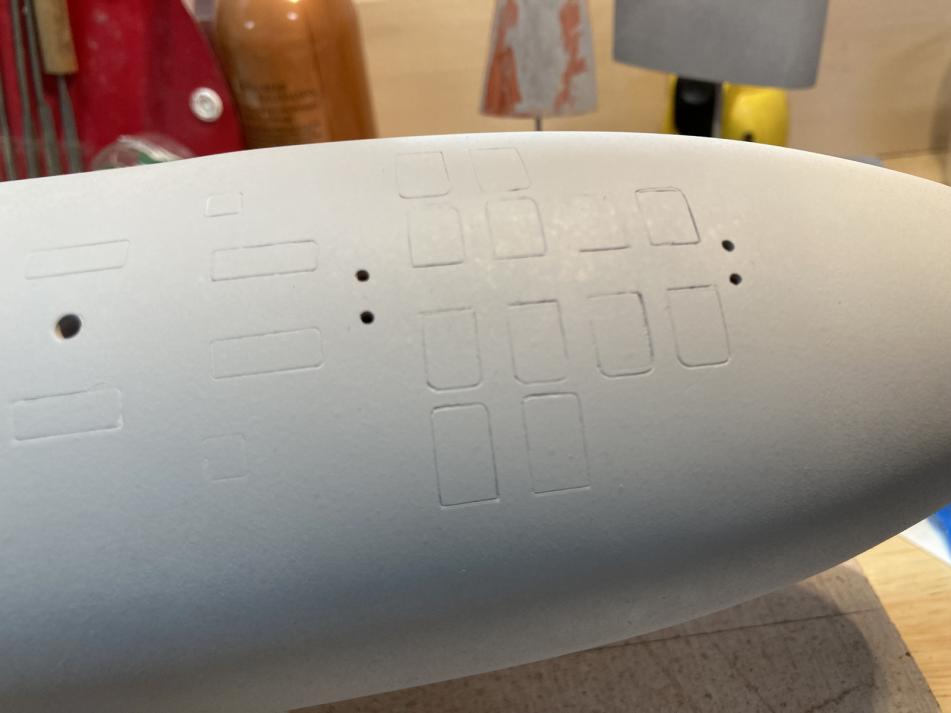

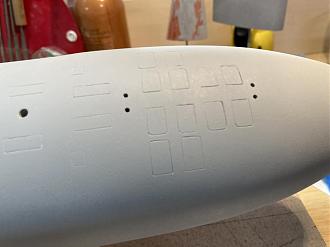

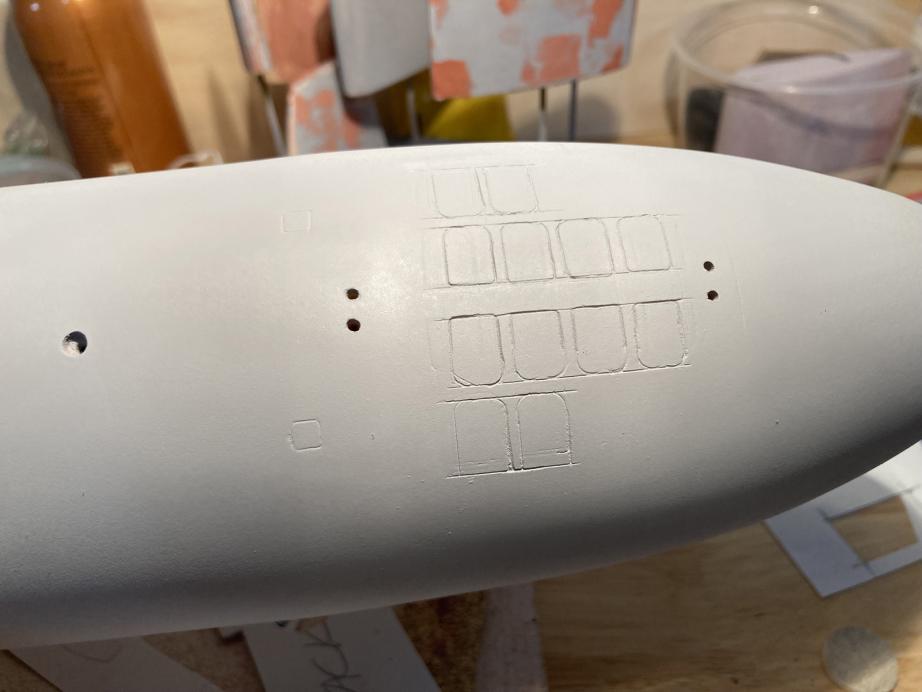

        I've tried several times to get it just right but still not there yet. I fill the mistakes with glazing putty, sand, prime and re-scribe.
        Click image for larger version

Name:	IMG_8273.jpg
Views:	101
Size:	44.3 KB
ID:	168462Click image for larger version

Name:	IMG_8357.jpg
Views:	96
Size:	42.1 KB
ID:	168460

        I will eventually get there. Stay tuned.

        Will Rogers
        SSBN659

        Comment


        • #49

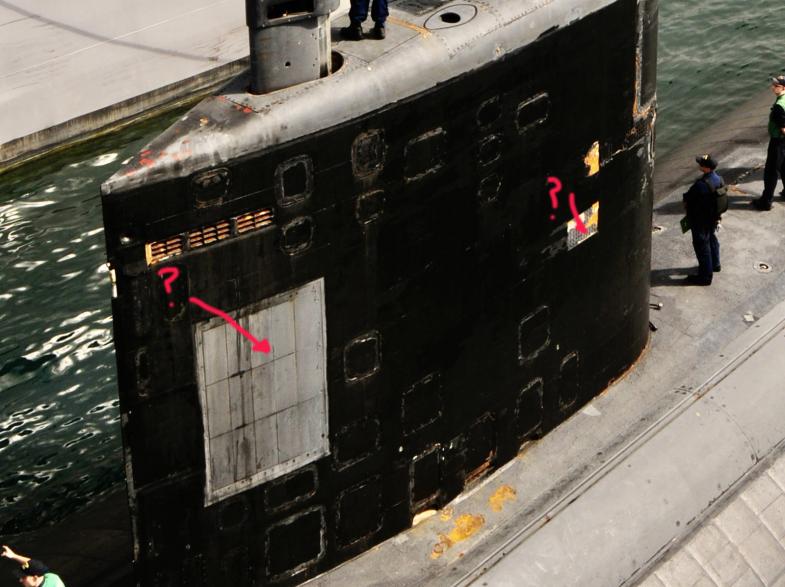

          Too cold out in the shop to work on the model so researching details for scribing Tucson sail. Found this photo of Tucson coming alongside Emory Land in the Philippines. Can anyone identify what the 2 areas in red are? The larger area appears to be set in.

          Click image for larger version

Name:	Tucson Sail ?.jpg
Views:	69
Size:	64.5 KB
ID:	168868

          Thanks for any help.

          Will Rogers
          SSBN659

          Comment


          • #50

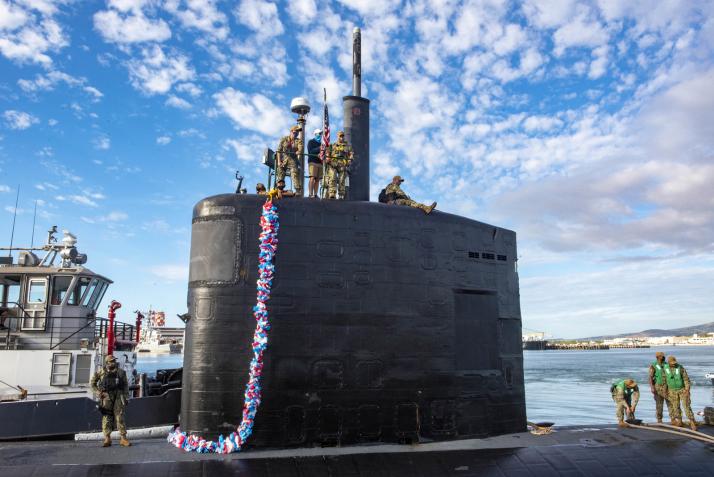

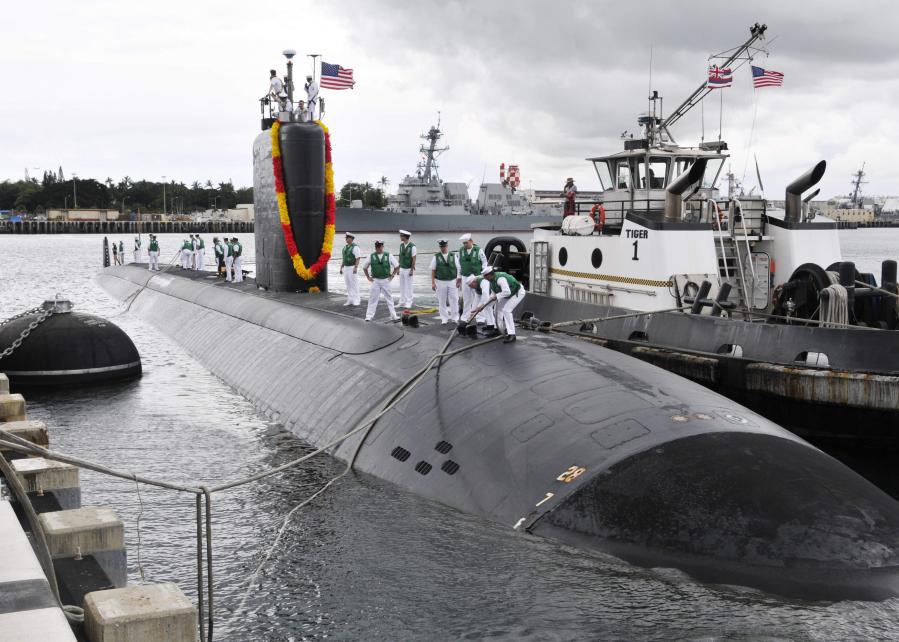

            Tucson arriving Pearl Harbor shows same inset on port side.

            Click image for larger version

Name:	Tucson Arrival Pearl Harbor.jpg
Views:	67
Size:	55.4 KB
ID:	168872

            Comment


            • #51
              sonar window?
              Resident Luddite

              Comment


              • #52
                Thanks David, right on.

                Found this in Norman Friedman's U.S. SUBMARINES SINCE 1945.

                "Unlike earlier designs, Los Angeles shows no separate sonar dome for an acoustic intercept receiver, so presumably her WLR-12 arrays are behind windows faired into the sail; for example, some photographs suggest that there is an acoustic window on the after part of the sail."

                I will include this in the sail.

                Will Rogers
                SSBN659

                Comment


                • #53

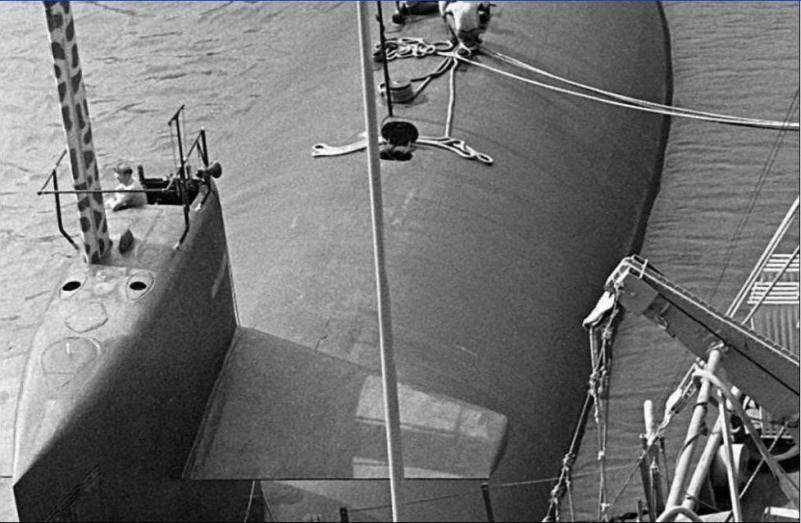

                  As a former ST, I can tell you the WLR-12 (9, 12, 17) systems all used the same hydrophone configuration topside and on the keel. Two, small, (high-freq hydrophone fairings) and a larger, low freq hydrophone fairing - normally, only the topside, bow-mounted fairings are ever photographed. The smaller fairing on top of the sail and lower fairing on the bow (Kamehameha shown) are pictured.

                  The square panels on the sides of the sail may be one-offs on this flight for another sonar, but they aren't from the 12.

                  CC

                  Attached Files

                  Comment


                  • #54
                    Thanks again for good information CC. Looking back at post D&E MINIATURES SUPPORT I see Toledo had no inset on the sail so your comment about a one-off makes sense. The pictures you posted above and item 2 on post KMC DESIGNS SUPPORT will help me include them on my model.

                    Will Rogers
                    SSBN659

                    Comment


                    • #55
                      Oops, don't know how that happened. The links above should have been posts number 47 and 45.

                      Will Rogers
                      SSBN659
