atic: 1:35 Bronco XXIII with interior

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #46


    Induction masts, Schnorchel, direction finder and below the control room. I also started to lay out the lower structure: drinking and waste water tanks, storage and ammo compartments and below the regulating tanks.

    Click image for larger version

Name:	108203934_3350876898297267_3340725876814409065_o.jpg
Views:	402
Size:	83.4 KB
ID:	141689

    Comment


    • #47
      Slowly coming together. Added the vent valve for the central ballast tank, the exhaust line to the Schnorchel mast and more detail in the regulating ballast tank...

      Click image for larger version

Name:	109673583_3365262073525416_7760122765511700018_o.jpg
Views:	372
Size:	63.8 KB
ID:	141931

      Comment


      • #48
        Excellent work and detail.

        Comment


        • #49
          Impressive work!

          Comment


          • #50

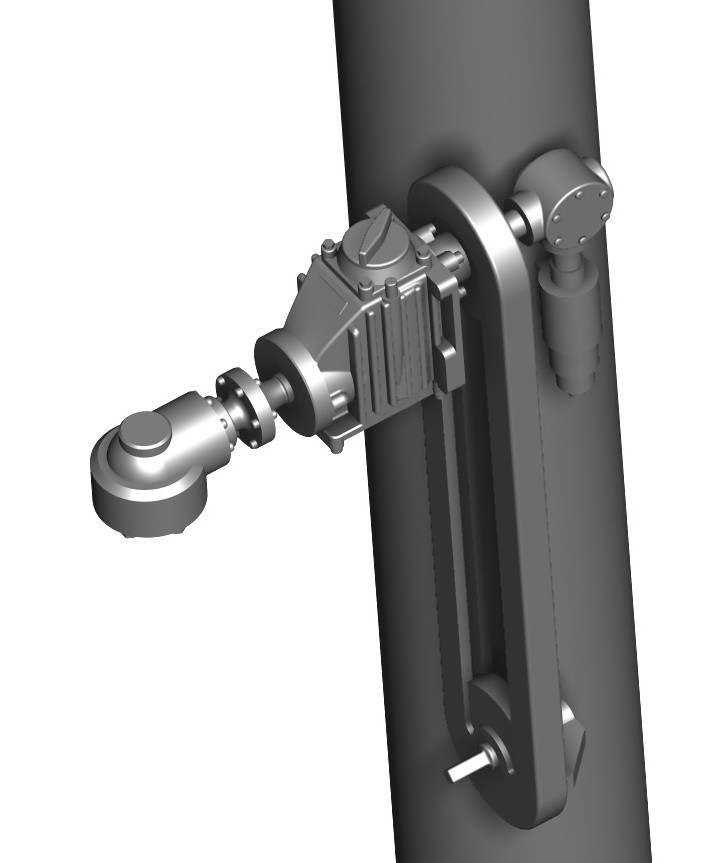

            Working on the Schnorchel drive. An air motor drives via a bevel gear a reversing gearbox (modeled after a Volvo Penta gearbox). After latter, another bevel gear drives the shaft to the Schnorchel gear. In between a chain drive for manual operation in case of failure of the air motor...took me while.

            Click image for larger version

Name:	Getriebe3.jpg
Views:	315
Size:	48.2 KB
ID:	142306
            Click image for larger version

Name:	Zentrale-5.jpg
Views:	312
Size:	63.9 KB
ID:	142307
            Attached Files

            Comment


            • #51
              Click image for larger version

Name:	Bodenverschluss.jpg
Views:	311
Size:	72.2 KB
ID:	144136
              Click image for larger version

Name:	ein-blick-auf-torpedorohre-vorderen-9320.jpg
Views:	284
Size:	43.2 KB
ID:	144137
              Working on the breech doors of the 533 mm torpedo tubes of my Type XXIII submarine project.

              Comment


              • #52
                Click image for larger version

Name:	Bugraum-01.jpg
Views:	268
Size:	73.8 KB
ID:	144274

                Torpedo room taking shape...

                Comment


                • #53
                  I believe the torpedoes were loaded from the outside. With that in mind, would it still look the same on the inside as other subs that loaded the torpedoes from the inside?
                  Other than thinking out loud, Love the work you are doing on this.
                  Peace,
                  Tom
                  If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                  Comment


                  • #54
                    Click image for larger version

Name:	Unbenannt (2).jpg
Views:	273
Size:	87.6 KB
ID:	144288

                    Here's a rare picture of the inside of a Type XXIII. The toredo tubes were taken from canceled VIIc boat builts. So exactly the same like on other German boats. But you are right. Tehy were loaded from outside....

                    Comment


                    • #55
                      Wow! Great photo! Thank you for sharing that.
                      If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                      Comment


                      • #56
                        Click image for larger version

Name:	Bodenverschluss-3.jpg
Views:	234
Size:	92.2 KB
ID:	144397

                        So, the crank interface for the muzzle dor ins on, the end of the firing rod, the director valve and some bits and pieces....not even halfway through.

                        Comment


                        • #57
                          Click image for larger version

Name:	Bodenverschluss-5.jpg
Views:	210
Size:	65.6 KB
ID:	144684

                          Damn those things were comolicated with all the mechanic interlocks....

                          Comment


                          • #58
                            Click image for larger version

Name:	XXIII-69.jpg
Views:	204
Size:	67.1 KB
ID:	144731

                            And some more valves and interlocks....

                            Comment


                            • #59
                              I am tired of posting WOW. So, if I remain silent, just know I am saying that every time you post a photo. I love what you are doing.
                              Peace,
                              Tom
                              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                              Comment


                              • #60
                                Very Nice !
